OIL COOLER

GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

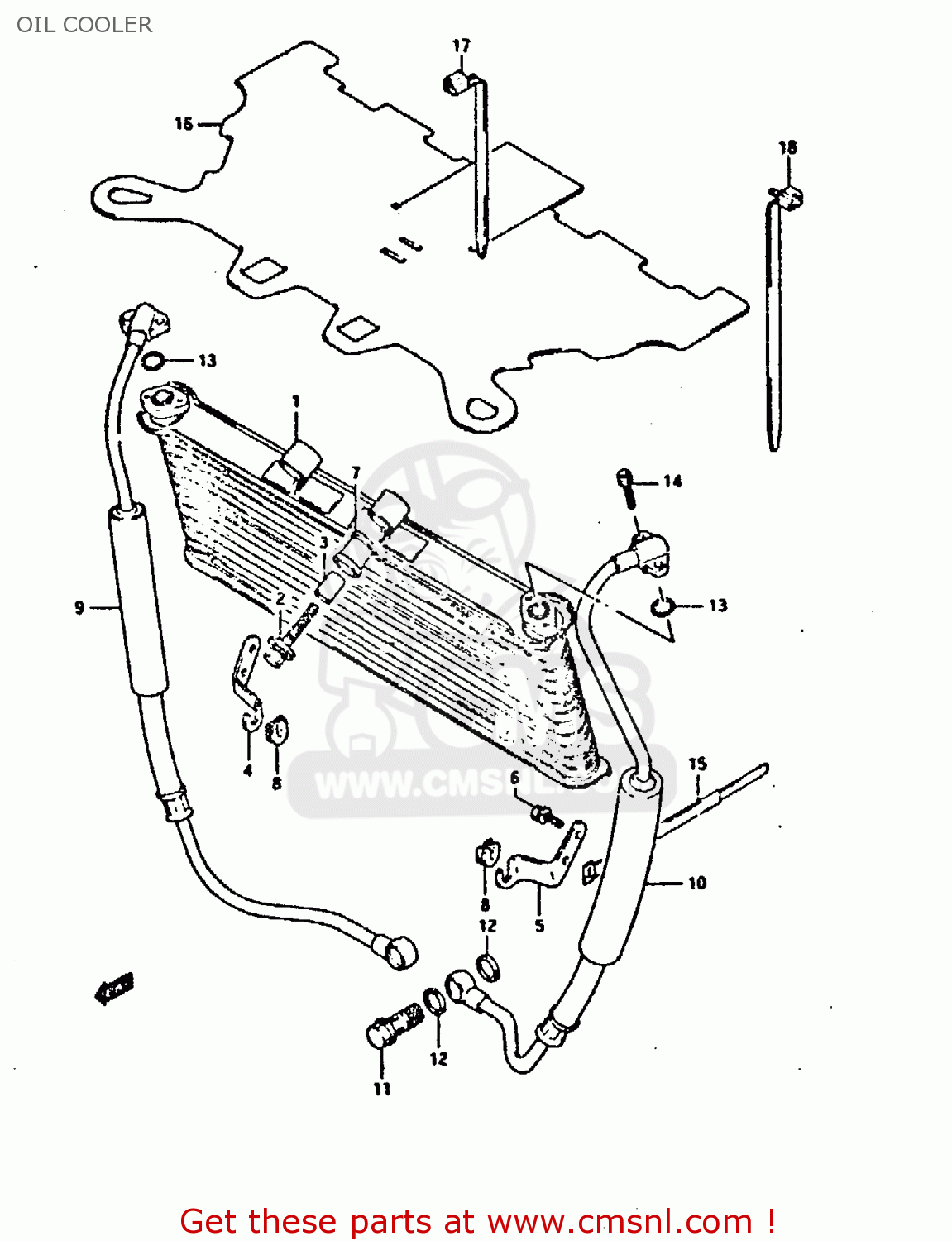

Oil cooler diagram GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

OIL COOLER GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
OIL COOLER GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
OIL COOLER GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1660020C02
ref: 1
COOLER ASSEMBLY,OIL
€ 1,014.00
2
0911808131
ref: 2
BOLT(8X40)
0911808131
€ 3.50
3
0918008124
ref: 3
SPACER (8.8X12X24.5)
€ 7.00
4
1662120C02
ref: 4
BRACKET,OIL COOLER,RIGHT
€ 4.00
5
1662220C02
ref: 5
BRACKET,OIL COOLER,LEFT
€ 5.50
6-1
0113706165
ref: 6-1
MODEL K/L/M/N/P
BOLT
€ 2.50
6-2
0157006163
ref: 6-2
MODEL R/S
BOLT
0157006163
€ 2.50
7
1662927A01
ref: 7
CUSHION,OIL COOLER NO.1
1662927A01
€ 4.00
8
1662827A00
ref: 8
CUSHION,OIL COOLER NO.2
1662827A00
€ 3.00
9-1
1646020C02
ref: 9-1
MODEL K/L/M/N/P @r16
HOSE,OIL
€ 125.50
9-2
1646020C03
ref: 9-2
MODEL R/S
HOSE,OIL COOLER,R
€ 125.50
10-1
1647020C02
ref: 10-1
MODEL K/L/M/N/P @r16
HOSE,OIL
€ 128.50
10-2
1647020C03
ref: 10-2
MODEL R/S
HOSE,OIL COOLER,R
1647020C03
€ 128.50
11
0936016002
ref: 11
BOLT UNION
0936016002
€ 12.00
12
0916816002
ref: 12
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
13
0928012008
ref: 13
O RING(D:2.4,ID:12.3)
0928012008
€ 3.00
14-1
0711006165
ref: 14-1
MODEL K/L/M/N/P
BOLT
0711006165
€ 3.00
14-2
0713006163
ref: 14-2
MODEL R/S
BOLT,OIL FILLE
0713006163
€ 3.00
15-1
0940725301
ref: 15-1
MODEL K/L/M/N/P
CLAMP(L:250)
0940725301
€ 4.50
15-2
0940725401
ref: 15-2
MODEL R/S
CLAMP(L:235)
0940725401
€ 4.00
16-1
9445120C00
ref: 16-1
PLATE,AIR GUIDE
€ 45.00
16-2
9445120C10
ref: 16-2
E18, MODEL N E39
PLATE,AIR GUIDE
€ 57.00
17
0940718402
ref: 17
CLAMP(L:165)
0940718402
€ 2.50
18
0940725401
ref: 18
CLAMP(L:235)
0940725401
€ 4.00
