OIL PUMP

GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

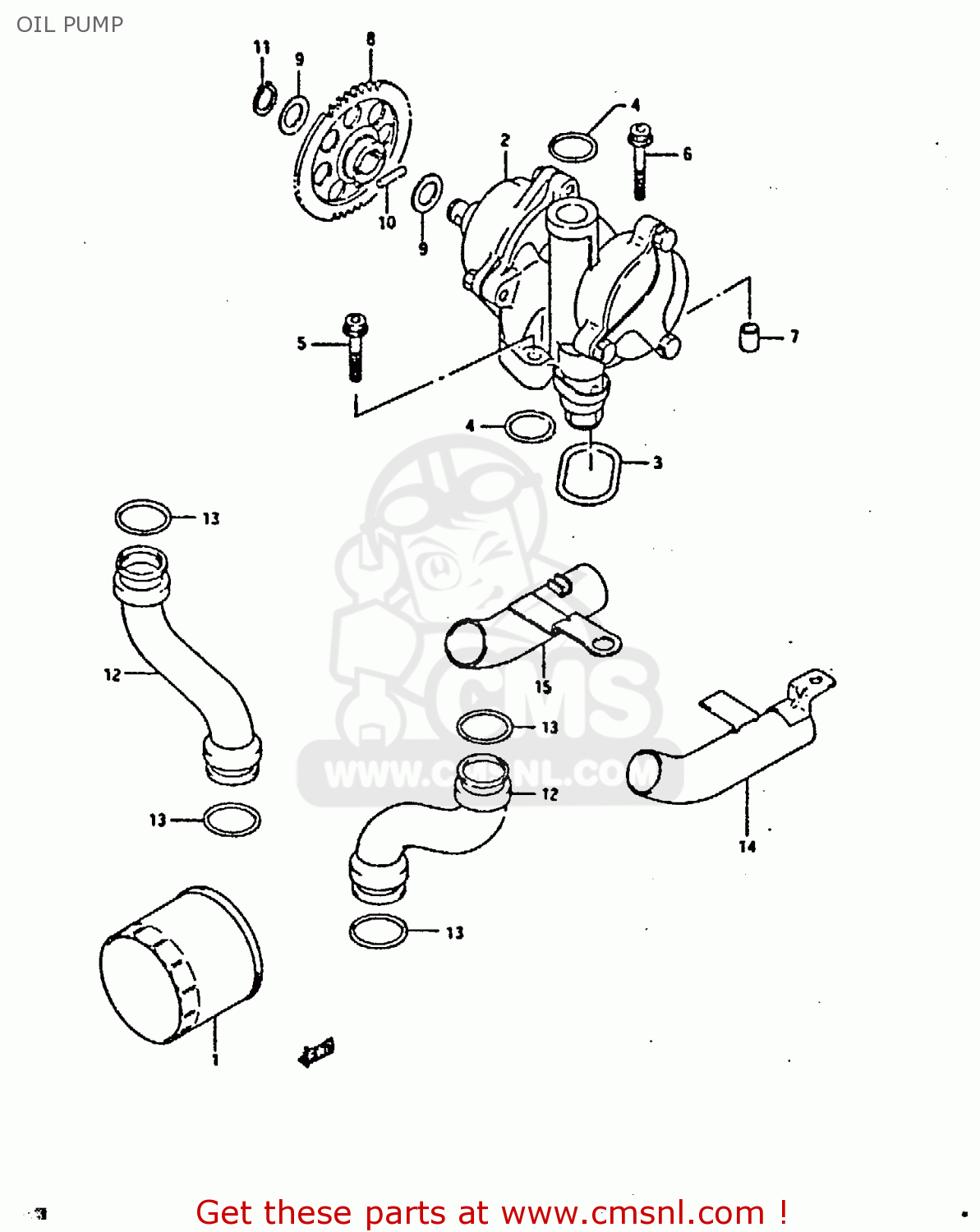

Oil pump diagram GSX750F 1994 (R) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1651006B01
ref: 1

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

1640006B01
ref: 2
16400-06810

PUMP ASSY,OIL

€ 348.50

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

5-1

0712006307
ref: 5-1
MODEL K/L/M/N/P

BOLT

€ 2.50

5-2

0713006303
ref: 5-2
MODEL R/S

BOLT

€ 3.00

6-1

0712006358
ref: 6-1
MODEL K/L/M/N/P

BOLT

€ 3.50

6-2

0713006353
ref: 6-2
MODEL R/S

BOLT

€ 3.50

0421109129
ref: 7

PIN

€ 2.00

16331068010B1
ref: 8

GEAR, OIL PUMP DRIVEN

€ 0.00

0822112205
ref: 9

SHIM

€ 1.50

0926105006
ref: 10

PIN(5X18)

€ 1.50

0833131126
ref: 11
08331-31128

CIRCLIP,12 MM

€ 2.00

1648117C00
ref: 12

PIPE,OIL OUTLET

€ 34.50

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

1653027A02
ref: 14

PIPE,OIL OUTLET UNDER,L

€ 22.00

1654027A02
ref: 15

PIPE,OIL OUTLET UNDER,R

€ 23.00
