CYLINDER HEAD

GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

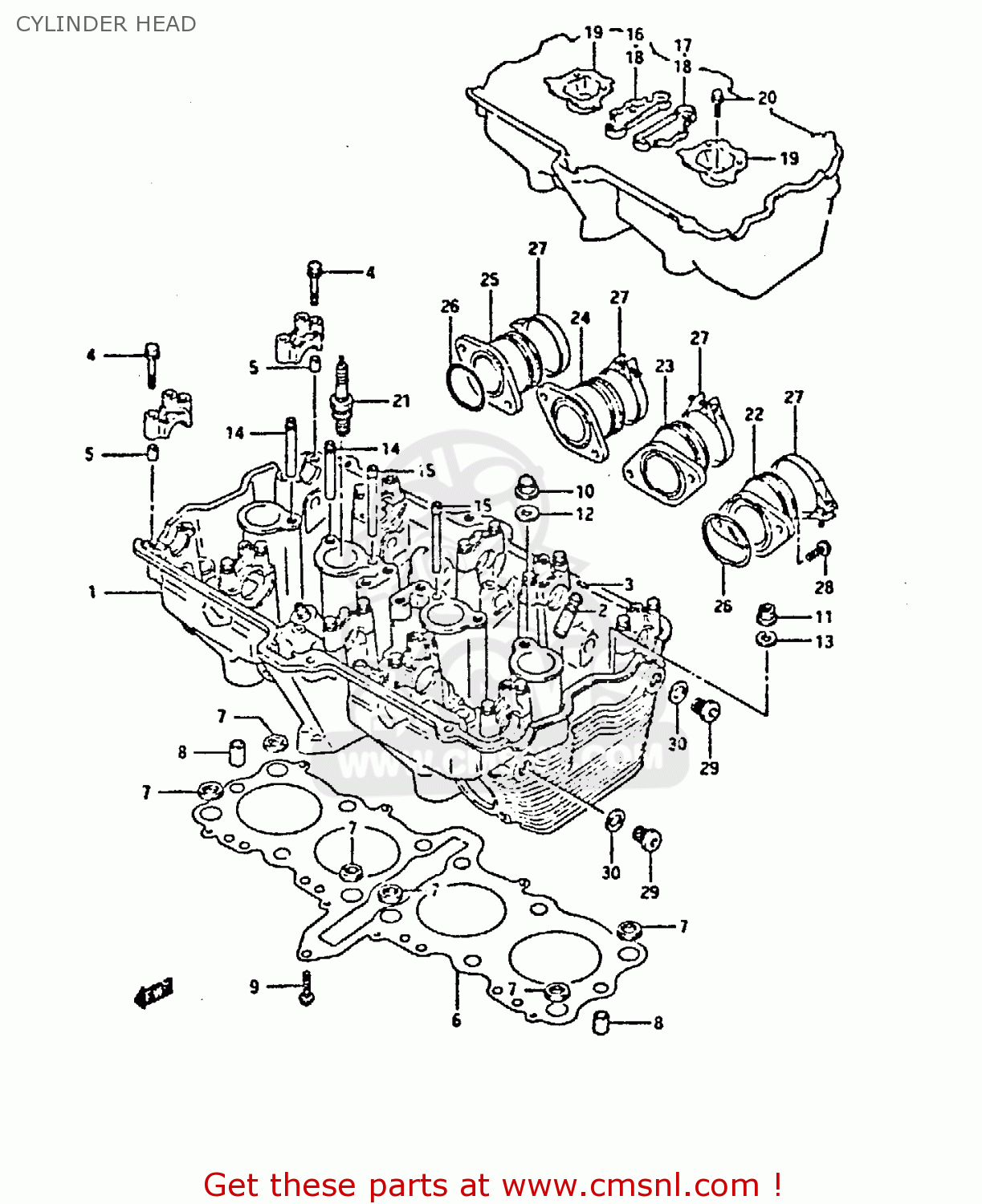

Cylinder head diagram GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

CYLINDER HEAD GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
CYLINDER HEAD GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
CYLINDER HEAD GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
1110020C02
ref: 1-1
HEAD ASSEMBLY,CYLINDER
1110020C02
€ 1,196.00
1-2
1110020C12
ref: 1-2
E18, MODEL N E39
HEAD ASSEMBLY,CYLINDER
€ 1,408.00
2
1111606870
ref: 2
GUIDE, VALVE
€ 0.00
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
0910306026
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
1114117C02
ref: 6
GASKET,CYLINDER HEAD (NAS)
1114117C02
€ 66.50
7
1114306B00
ref: 7
O RING,HEAD GASKET
1114306B00
€ 8.00
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9-1
0151706254
ref: 9-1
MODEL K/L/M/N/P
BOLT
€ 2.50
9-2
0155006253
ref: 9-2
MODEL R/S
BOLT
0155006253
€ 2.50
10
0915910054
ref: 10
NUT
0915910054
€ 7.50
11
0831610103
ref: 11
NUT
0831610103
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
13
0916010060
ref: 13
WASHER (10.5X22X2.3)
0916010060
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
1113127A00
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
1113327A00
€ 7.00
16
1113517C01
ref: 16
~E.NO.110712 @r11135
PLATE
1113517C01
€ 4.50
17
1113617C01
ref: 17
~E.NO.110712 @r11135
PLATE
1113617C01
€ 4.50
18
1113517C10
ref: 18
E.NO.110713~
PLATE,OIL PIPE NO.1
1113517C10
€ 4.50
19
1113717C01
ref: 19
PLATE,OIL PIPE NO.2
1113717C01
€ 5.50
20-1
0154706127
ref: 20-1
MODEL K/L/M/N/P
BOLT
0154706127
€ 2.00
20-2
0154706123
ref: 20-2
MODEL R/S
BOLT
0154706123
€ 2.00
21
0948200397
ref: 21
PLUG,SPARK(JR9C)
0948200397
€ 8.00
22
1310117C00
ref: 22
13110-17C00
PIPE ASSEMBLY,INTAKE
€ 32.50
23
1310217C00
ref: 23
13120-17C00
PIPE ASSEMBLY,INTAKE
€ 32.50
24
1310317C00
ref: 24
13130-17C00
PIPE ASSEMBLY,INTAKE
€ 32.50
25
1310417C00
ref: 25
13140-17C00
PIPE ASSEMBLY,INTAKE
€ 34.50
26
0928040010
ref: 26
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
27
0940252208
ref: 27
CLAMP
0940252208
€ 5.50
28-1
0215206165
ref: 28-1
MODEL K/L/M/N/P
SCREW
€ 2.00
28-2
0211216163
ref: 28-2
MODEL R/S
SCREW
€ 2.00
29
0924814010
ref: 29
PLUG
0924814010
€ 5.00
30
0916814002
ref: 30
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
