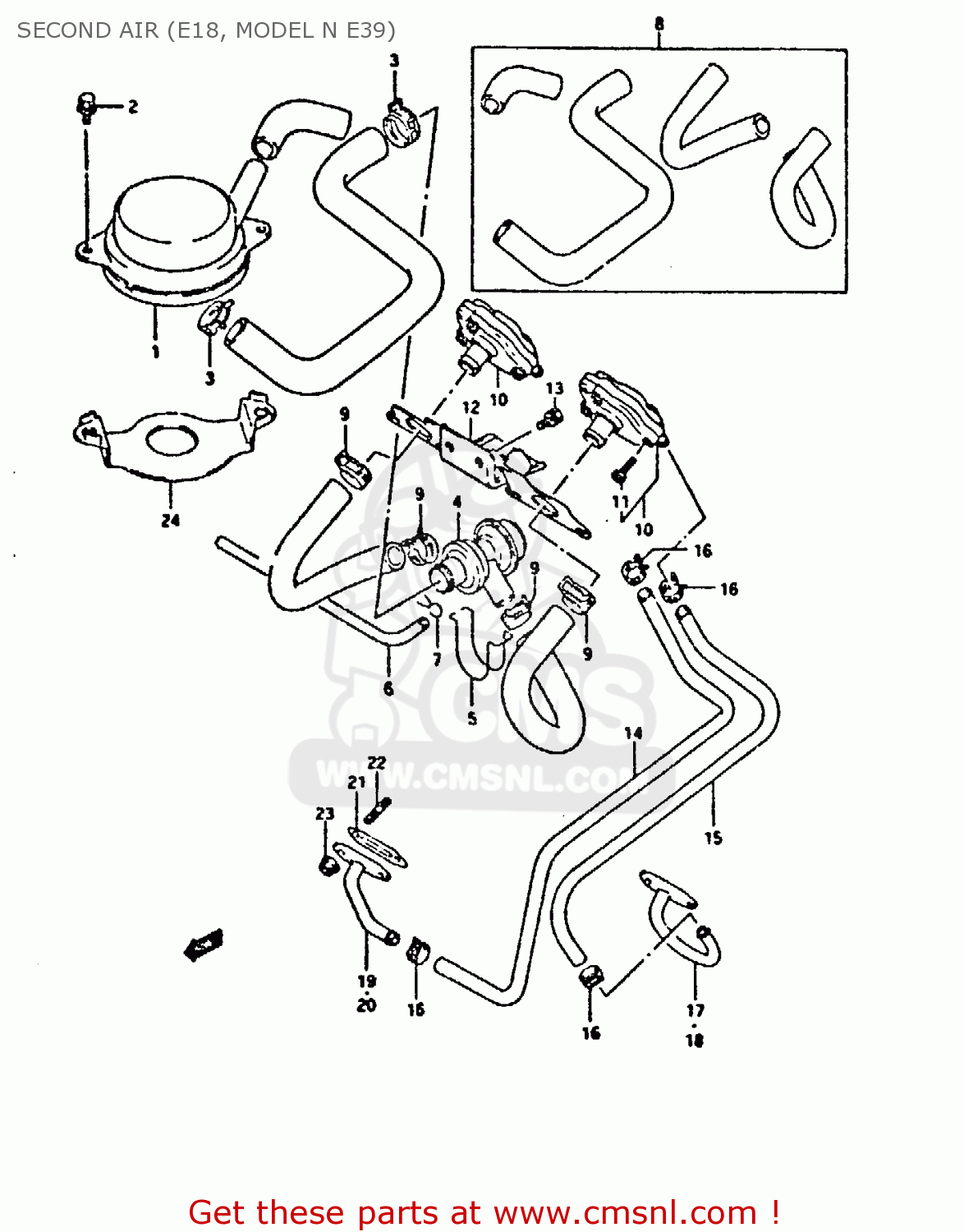

SECOND AIR (E18, MODEL N E39)

ref

part #

description

quantity

1-1

1870048B02
ref: 1-1
MODEL K/L/M/N/P

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

1-2

1870048B03
ref: 1-2
MODEL R/S

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

2-1

0117706168
ref: 2-1
MODEL K/L/M/N/P

BOLT

€ 3.00

2-2

0158006163
ref: 2-2
MODEL R/S

BOLT

€ 2.50

3

0940125402
ref: 3

CLIP

€ 3.00

4

1851020C00
ref: 4

VALVE ASSY,AIR SWITCHING

€ 194.00

5

1852217C00
ref: 5

CLAMP,SWITCHING VALVE

€ 8.00

6

0935945852600
ref: 6
L:600@r250

HOSE(4.5X8.5X600)

€ 9.00

7

0940107401
ref: 7

CLAMP

€ 2.00

8

1842019810
ref: 8

HOSE SET,SECOND AIR NO.2

€ 0.00

9-1

0940121401
ref: 9-1
MODEL K/L/M/N/P/R

CLIP

€ 3.00

9-2

0940121403
ref: 9-2
MODEL S

CLIP

€ 3.00

10

1845048B00
ref: 10

VALVE ASSY,2ND AIR REED

€ 125.50

11

0713005167
ref: 11

BOLT

€ 2.50

12

1847019C01
ref: 12

(CA) B/K REED VALVE

€ 16.00

13-1

0157006167
ref: 13-1
MODEL K/L/M/N/P

BOLT

€ 2.50

13-2

0157006163
ref: 13-2
MODEL R/S

BOLT

€ 2.50

14

1844520C00
ref: 14

HOSE,SECOND AIR NO.1,OUTLET

€ 18.50

15

1844620C00
ref: 15

HOSE,SECOND AIR NO.1,INLET

€ 18.50

16-1

0940113408
ref: 16-1
MODEL K/L/M/N/P/R

CLIP

€ 2.50

16-2

0940113413
ref: 16-2
MODEL S

CLIP

€ 2.50

17

1841020C00
ref: 17
LH

PIPE,2ND AIR NO.1

€ 36.00

18

1844020C00
ref: 18
RH

PIPE,2ND AIR NO.4

€ 36.00

19

1842020C00
ref: 19
ML

PIPE,SECOND AIR NO.2

€ 0.00

20

1843020C00
ref: 20
MR

PIPE,SECOND AIR NO.3

€ 0.00

21

1844117C10
ref: 21

GASKET,SECOND AIR PIPE (NAS)

€ 7.00

22-1

0142106125
ref: 22-1
MODEL K/L/M/N/P/R

STUD BOLT

€ 2.00

22-2

0142106163
ref: 22-2
MODEL S

STUD BOLT

€ 2.00

23-1

0831616064
ref: 23-1
MODEL K/L/M/N/P

NUT 6MM

€ 2.50

23-2

0831610063
ref: 23-2
MODEL R/S

NUT

€ 2.50

24

1876141C00
ref: 24

HOLDER,SECOND AIR CLEANER

€ 0.00
