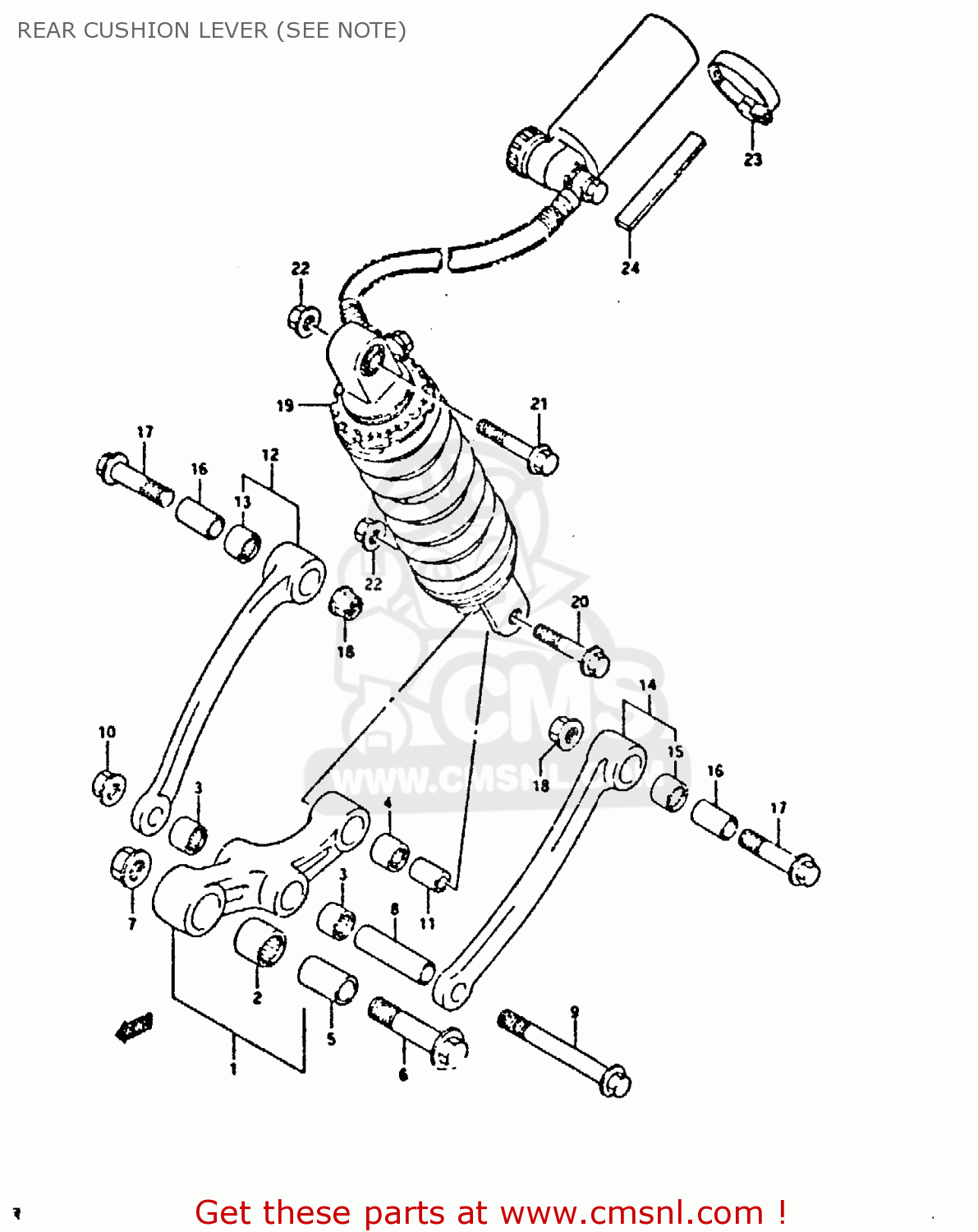

REAR CUSHION LEVER (SEE NOTE)

ref

part #

description

quantity

1

6260019830
ref: 1

LEVER SET,RR CUSHION

€ 575.50

2

0926320070
ref: 2

BEARING(20X27X30)

€ 21.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

0918014014
ref: 5

SPACER(14X20X34)

€ 11.50

6

0910314012
ref: 6

BOLT(14X62)

€ 6.00

7

0831931145
ref: 7

NUT 14MM

€ 9.00

8

0918012121
ref: 8

SPACER(12X17X60)

€ 12.00

9

0910312034
ref: 9

BOLT(12X96)

€ 6.00

10

0831931125
ref: 10

NUT 12MM

€ 3.00

11

6268440A10
ref: 11

SPACER,RR CUSHION LEVER

€ 11.50

12

6260120810
ref: 12

ROD SET,REAR CUSHION,RIGHT

€ 131.00

13

0926317034
ref: 13

BEARING(17X24X26)

€ 21.50

14

6260120820
ref: 14

ROD SET,REAR CUSHION,LEFT

€ 131.00

15

0926317034
ref: 15

BEARING(17X24X26)

€ 21.50

16

0918012120
ref: 16

SPACER(12X17X29)

€ 10.00

17

0910312035
ref: 17

BOLT L:52

€ 7.00

18

0831931125
ref: 18

NUT 12MM

€ 3.00

19

6210020C12
ref: 19

ABSORBER,RR SH

€ 1,496.50

20

0910310101
ref: 20

BOLT(10X54)

€ 3.00

21

0910310213
ref: 21

BOLT(10X52)

€ 4.00

22

0831931105
ref: 22

NUT 10MM

€ 3.00

23

0940250511
ref: 23

CLAMP

€ 8.50

24

6233148800
ref: 24

CUSHION, TANK

€ 0.00

24

6233148800
ref: 24

CUSHION, TANK

€ 0.00

26

0831931105
ref: 26

NUT 10MM

€ 3.00
