FRONT MASTER CYLINDER

GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

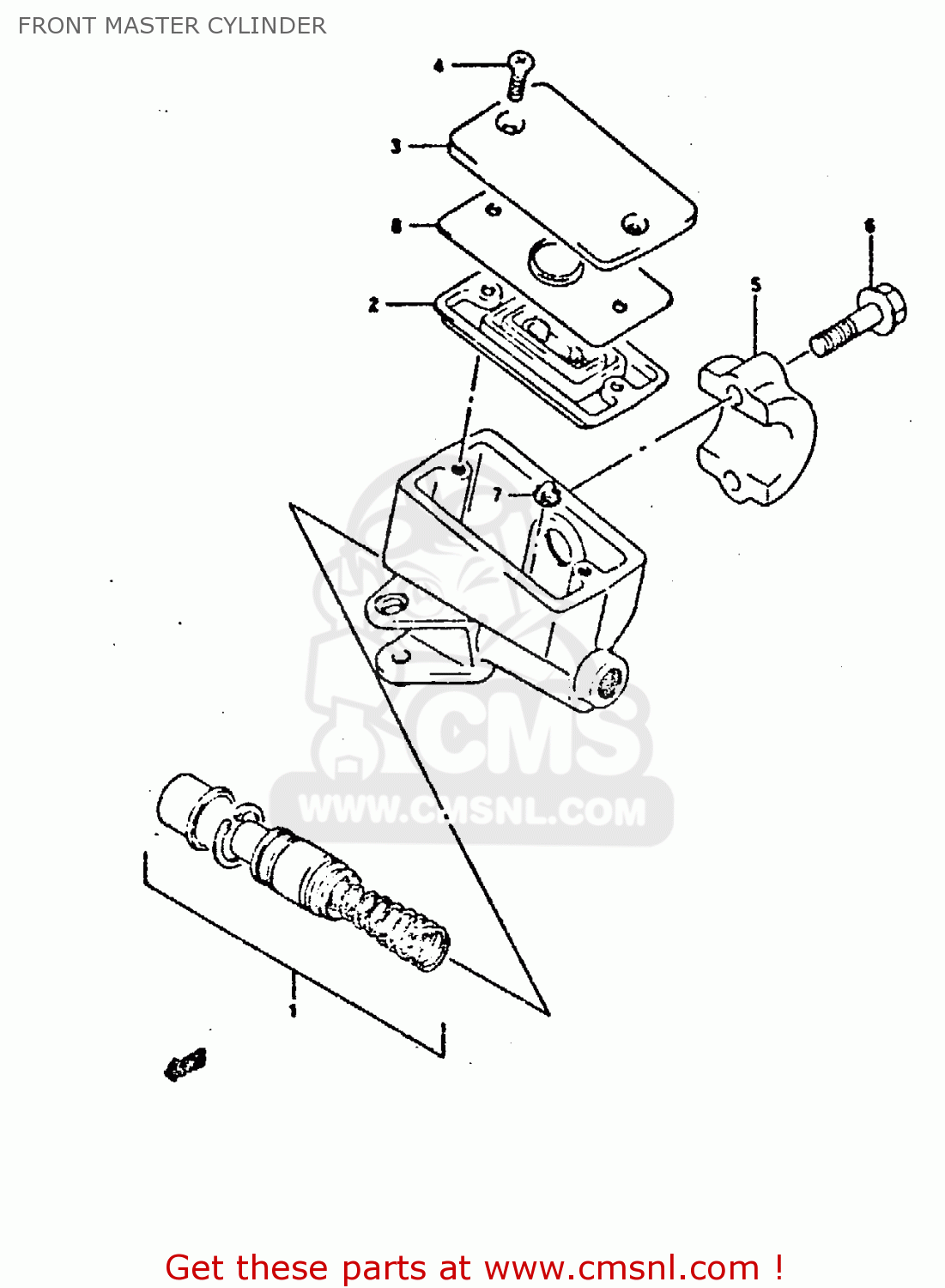

Front master cylinder diagram GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

5960020C10
ref: 0

CYLINDER ASSY,FR MASTER

€ 262.50

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

5966749460
ref: 2

5966749460

3-1

5966934C00
ref: 3-1
MODEL K/L/M/N/P @r59

CAP

€ 30.00

3-2

5966941C00
ref: 3-2
MODEL R/S

CAP

€ 30.00

6968949300
ref: 4

SCREW

€ 1.50

5967119B00
ref: 5

HOLDER

€ 18.50

5967519C00
ref: 6

BOLT(6X25)

€ 3.00

5966448B00
ref: 7

PROTECTOR

€ 8.00

5966841C00
ref: 8
MODEL R/S

PLATE,DIAPHRAGM

€ 8.00
