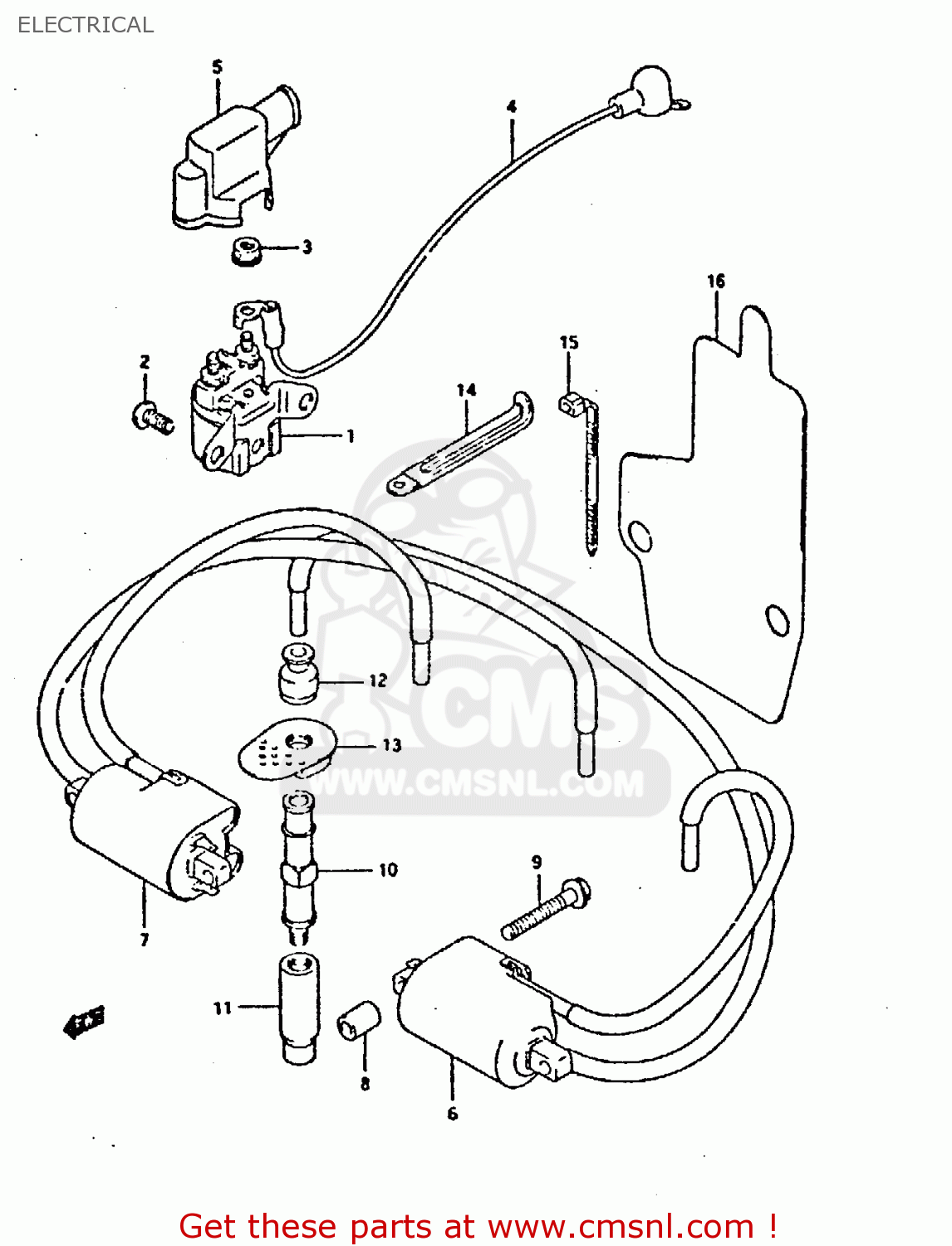

ELECTRICAL

GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

Electrical diagram GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)

ELECTRICAL GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
ELECTRICAL GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
ELECTRICAL GSX750F 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2
0211206103
ref: 2
SCREW
0211206103
€ 1.50
3
0836135063
ref: 3
NUT
€ 2.00
4
3385019C00
ref: 4
WIRE,STARTER MOTOR LEAD
€ 29.00
5
3186110010
ref: 5
31861-19C00
CAP, TERMINAL
€ 0.00
6
3341019C00
ref: 6
COIL ASSEMBLY,IGNITION NO
€ 147.00
7
3342019C00
ref: 7
COIL ASSEMBLY,IGNITION NO
3342019C00
€ 162.50
8
0918006198
ref: 8
SPACER(6.2X12X16)
0918006198
€ 3.50
9-1
0151706456
ref: 9-1
MODEL K/L/M/N/P
SCREW
€ 2.50
9-2
0155006453
ref: 9-2
MODEL R
BOLT (6X45)
€ 2.50
10-1
3351020C01
ref: 10-1
MODEL K @r33510-20C0
CAP,SPARK PLUG
€ 37.50
10-2
3351020C02
ref: 10-2
MODEL L/M/N/P/R/S
CAP,SPARK PLUG
3351020C02
€ 37.50
11
3354120C00
ref: 11
SEAL,SPARK PLUG
3354120C00
€ 19.50
12
3354238B00
ref: 12
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
13
3354348B00
ref: 13
COVER,SPARK PLUG CAP
3354348B00
€ 12.50
14
0940406403
ref: 14
CLAMP
€ 2.50
15
0940718402
ref: 15
CLAMP(L:165)
0940718402
€ 2.50
16
3341120C00
ref: 16
MODEL S
COVER,IGNITION COIL
€ 7.00
