ALTERNATOR
GSX750F KATANA 1999 (X) USA (E03)

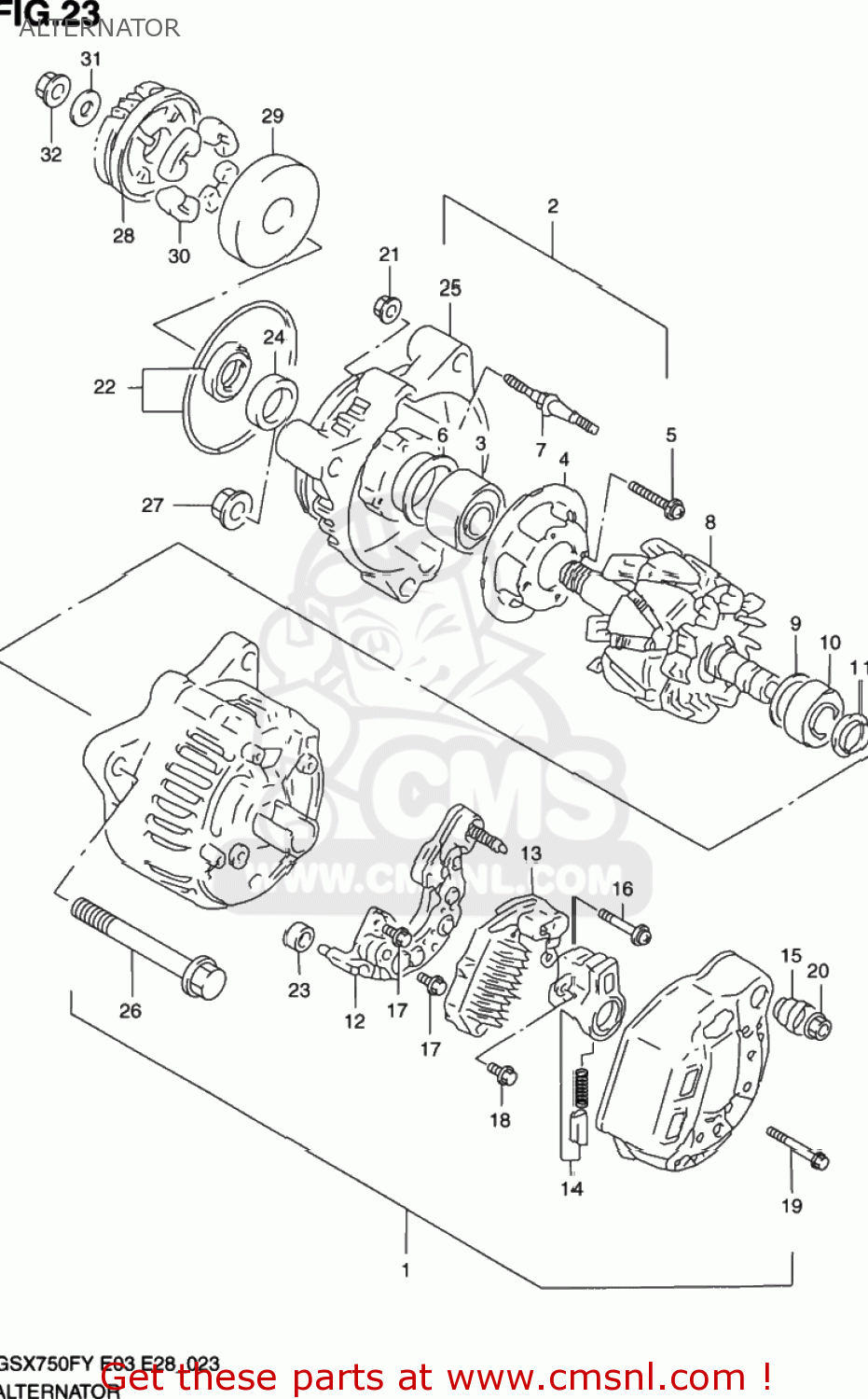

Alternator diagram GSX750F KATANA 1999 (X) USA (E03)
ALTERNATOR GSX750F KATANA 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3140003F01
ref: 1-1
31400-03F40
ALTERNATOR ASSEMBLY
€ 1,482.00
1-2
3140003F03
ref: 1-2
31400-03F40
ALTERNATOR ASSEMBLY
€ 1,482.00
2
3158003F00
ref: 2
FRAME,DRIVE END
€ 253.00
3
3161206B00
ref: 3
BEARING
€ 36.50
4
3158503F00
ref: 4
RETAINER
€ 8.00
5
3158603F00
ref: 5
SCREW(4X14)
€ 2.50
6
3161348B00
ref: 6
COVER,BEARING
€ 5.50
7
3158785250
ref: 7
STUD BOLT
€ 9.00
8
3171003F00
ref: 8
ROTOR ASSY
€ 358.50
9
3161382610
ref: 9
COVER,BEARING
€ 3.50
10
3161248B00
ref: 10
BEARING
€ 42.50
11
3161327A10
ref: 11
COVER(2)
€ 5.50
12
3162103F00
ref: 12
HOLDER,RECTIFIER
€ 194.00
13-1
3250003F00
ref: 13-1
32500-03F10
REGULATOR ASSEMBLY
€ 242.00
13-2
3250003F10
ref: 13-2
REGULATOR ASSY
€ 242.00
14
3165603F00
ref: 14
HOLDER,BRUSH
€ 46.00
15
3151485250
ref: 15
INSULATOR,TERMINAL
€ 8.00
16
0211234253
ref: 16
02112-3425B
SCREW
€ 2.00
17
0211204063
ref: 17
02112-0406B
SCREW 4X6
€ 2.00
18
0211204087
ref: 18
SCREW
€ 1.50
19
0211204253
ref: 19
02112-0425B
SCREW
€ 2.00
20
0836115063
ref: 20
08361-1506A
NUT
€ 1.50
21
0831610053
ref: 21
08316-1005A
NUT
€ 2.50
22
3178027X50
ref: 22
SERVICE KIT(A)
€ 47.50
23-1
3178003F01
ref: 23-1
31780-03F02
SERVICE KIT,B
€ 10.50
23-2
3178003F02
ref: 23-2
SERVICE KIT(B)
€ 10.50
24
3177606B00
ref: 24
SPACER
€ 22.00
25
3161103F01
ref: 25
FRAME,END
€ 180.00
26
0155008653
ref: 26
01550-0865A
BOLT
€ 3.00
27
0836135068
ref: 27
08361-3506A
NUT
€ 2.00
28
2273019C02
ref: 28
GEAR,GENERATOR DRIVEN
€ 112.50
29
2273327A05
ref: 29
HOUSING,GENERATOR GEAR DAMPER
€ 95.00
30
2123106B00
ref: 30
DAMPER,GENERATOR DRIVEN
€ 5.50
31
0821110283
ref: 31
WASHER
€ 3.00
32
0831620103
ref: 32
08316-2010B
NUT
€ 3.50
