FRAME
GSX750F KATANA 1999 (X) USA (E03)

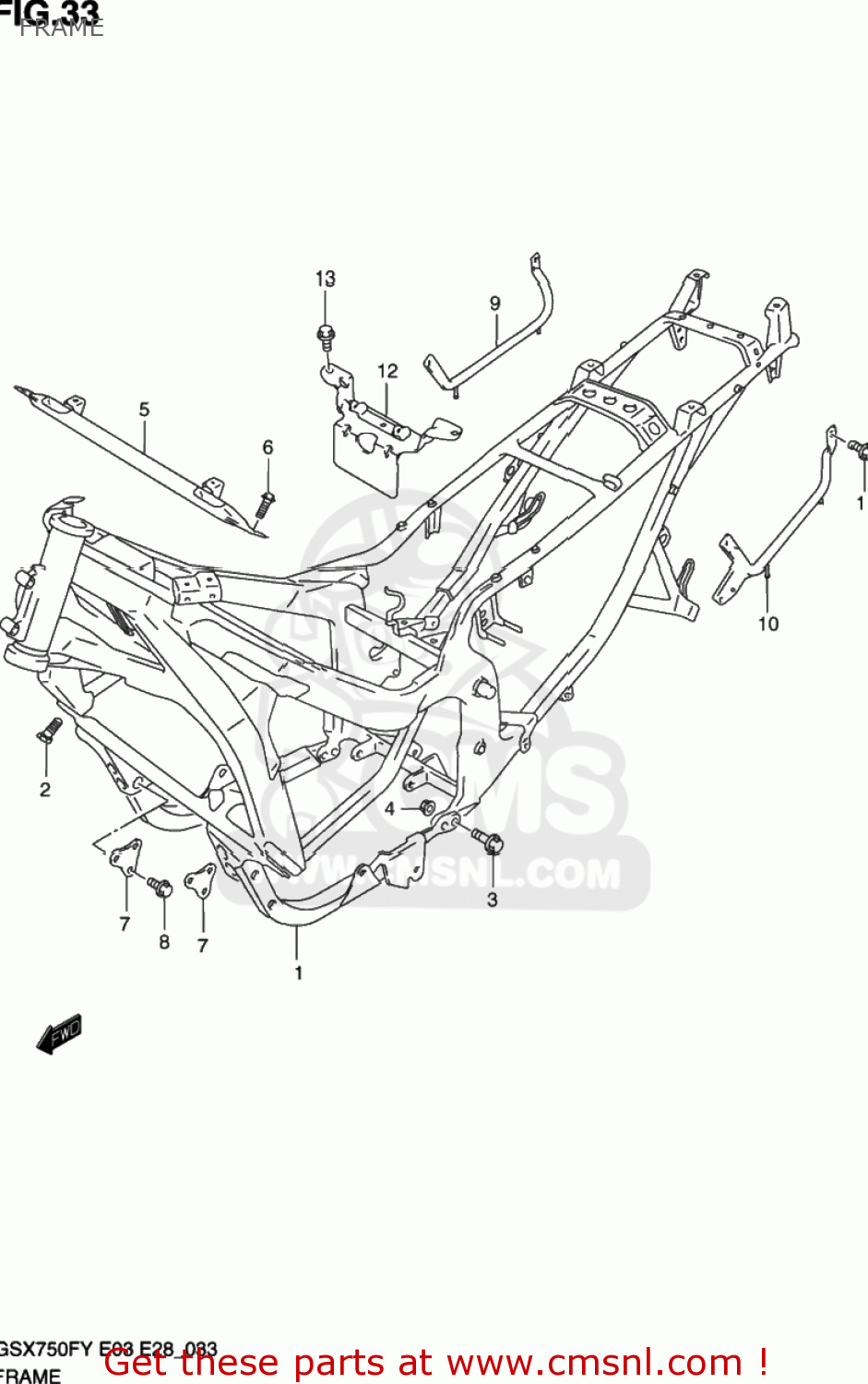

Frame diagram GSX750F KATANA 1999 (X) USA (E03)
FRAME GSX750F KATANA 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110008FC0019
ref: 1-1
FRAME(BLACK)
€ 0.00
1-2
4110008FK0019
ref: 1-2
FRAME COMP
€ 1,383.00
1-3
4110008FL0019
ref: 1-3
FRAME(BLACK)
€ 1,383.00
2
0157008253
ref: 2
01570-0825A
BOLT
€ 2.50
3
0155008303
ref: 3
01550-0830A
BOLT
€ 3.00
4
0831931083
ref: 4
08319-3108A
NUT
€ 2.50
5
4175034C00
ref: 5
TUBE,FRAME BRIDGE NO.2
€ 44.00
6
0910308266
ref: 6
BOLT(8X20)
€ 2.50
7
4191119C00019
ref: 7
PLATE,ENG MTG NO.1
€ 5.00
8
0157008163
ref: 8
01570-0816A
BOLT, UPPER
€ 2.00
9
4397008F00
ref: 9
GRIP,RR,R
€ 31.50
10
4398008F00
ref: 10
GRIP,RR,L
€ 36.50
11
0155008163
ref: 11
01550-0816A
BOLT
€ 3.00
12
4741008F01
ref: 12
PLATE,ELECTRIC PARTS HOLDER
€ 25.00
13
0155006163
ref: 13
01550-0616A
BOLT
€ 2.50
