GEAR SHIFTING
GSX750F KATANA 1999 (X) USA (E03)

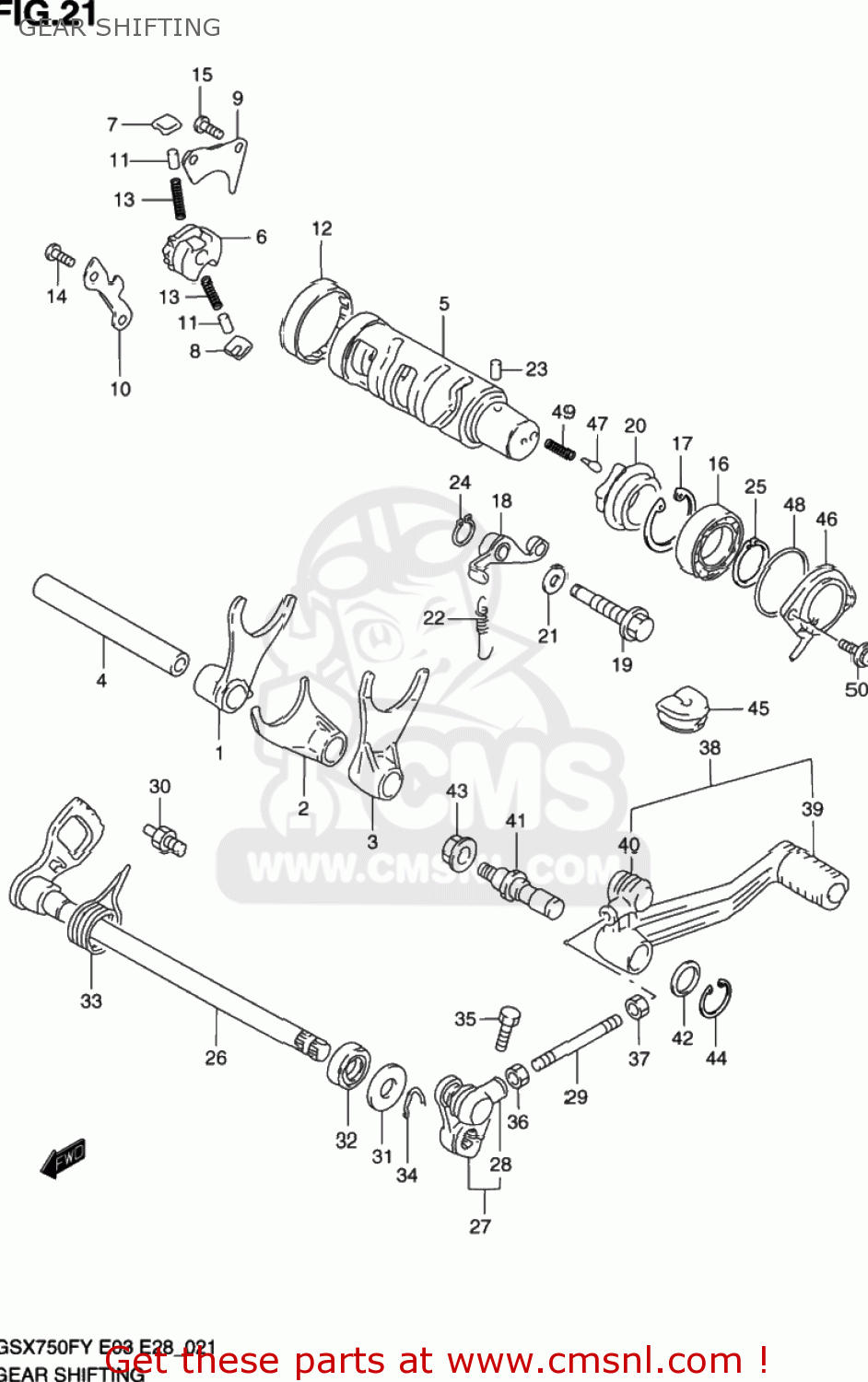

Gear shifting diagram GSX750F KATANA 1999 (X) USA (E03)
GEAR SHIFTING GSX750F KATANA 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2521127A00
ref: 1-1
25211-27A12
FORK,GEAR SHIFT NO.1
€ 102.50
1-2
2521127A10
ref: 1-2
25211-27A12
FORK,GEAR SHIFT NO.1
€ 102.50
1-3
2521127A12
ref: 1-3
FORK,GEAR SHIFT NO.1
€ 102.50
2
2522127A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.50
3
2523127A00
ref: 3
FORK,GEAR SHIFT NO.3
€ 84.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5-1
2531027A02
ref: 5-1
25310-27A03
CAM,GEAR SHIFT
€ 196.50
5-2
2531027A03
ref: 5-2
CAM,GEAR SHIFT
€ 196.50
6
2532231310
ref: 6
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
2533131301
ref: 9
25331-31310
LIFTER,GEAR SHIFT PAWL
€ 7.00
10
2534127A00
ref: 10
GUIDE,GEAR SHIFT CAM
€ 8.50
11
0926105003
ref: 11
PIN(5X8)
€ 1.50
12
0926343001
ref: 12
BEARING(43X49X12)
€ 30.00
13
0944004003
ref: 13
SPRING
€ 1.50
14-1
0212206123
ref: 14-1
02122-0612A
SCREW
€ 3.00
14-2
0912606011
ref: 14-2
SCREW(6X12)
€ 2.00
15-1
0212206123
ref: 15-1
02122-0612A
SCREW
€ 3.00
15-2
0912606011
ref: 15-2
SCREW(6X12)
€ 2.00
16
0811369050
ref: 16
BEARING
€ 36.00
17
0833141426
ref: 17
08331-4142A
CIRCLIP
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
€ 13.00
19
2535327A00
ref: 19
SHAFT,GEAR SHIFT CAM STOPPER
€ 5.50
20
2538138400
ref: 20
PLATE,STOPPER
€ 22.00
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
€ 2.00
22
0944309033
ref: 22
SPRING
€ 7.00
23
0422104069
ref: 23
PIN
€ 2.00
24
0833131086
ref: 24
08331-3108A
CIRCLIP
€ 2.00
25
0833131256
ref: 25
08331-3125A
CIRCLIP
€ 2.00
26
2551019C01
ref: 26
SHAFT,GEAR SHIFT
€ 91.50
27-1
2552019C02
ref: 27-1
ARM,GEAR SHIFT LINK
€ 53.50
27-2
2552047000
ref: 27-2
ARM,GEAR SHIFT LINK
€ 53.50
28
2552647000
ref: 28
COVER,DUST
€ 3.50
29
2552512C10
ref: 29
ROD,GEAR SHIFT LINK
€ 6.00
30-1
2567101000
ref: 30-1
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
30-2
2567101011
ref: 30-2
STOPPER,GEAR SHIFT ARM
€ 3.00
31
0916012090
ref: 31
09160-12089
WASHER (12.5X26X1.6)
€ 2.00
32
0928512002
ref: 32
09285-12006
OIL SEAL
€ 7.00
33
0944426017
ref: 33
SPRING
€ 5.00
34
0833131126
ref: 34
08331-3112A
CIRCLIP,12 MM
€ 2.00
35-1
0150006257
ref: 35-1
BOLT
€ 2.00
35-2
0150006203
ref: 35-2
01500-0620A
BOLT
€ 2.00
36
0831000067
ref: 36
NUT
€ 2.50
37-1
0914006011
ref: 37-1
NUT
€ 1.50
37-2
0914006025
ref: 37-2
NUT
€ 2.00
38
2560019C04
ref: 38
LEVER ASSY,GEAR SHIFT
€ 81.00
39
2565220C00
ref: 39
RUBBER,GEAR SHIFT PEDAL
€ 8.00
40
2552647000
ref: 40
COVER,DUST
€ 3.50
41
2561720A00
ref: 41
SHAFT,GEAR SHIFT LEVER
€ 37.00
42
0916012011
ref: 42
WASHER(12.5X20X1)
€ 1.50
43
0831610103
ref: 43
08316-1010B
NUT
€ 2.00
44
0833131126
ref: 44
08331-3112A
CIRCLIP,12 MM
€ 2.00
45
3388527A01
ref: 45
GROMMET,LEADWIRE
€ 20.50
46
3772020C00
ref: 46
BASE ASSY,GEAR SHIFT TERMINAL
€ 88.50
47
0920905011
ref: 47
PIN(5X15.5)
€ 2.00
48
0928035006
ref: 48
O RING(D:2.4,ID:35.5)
€ 4.00
49
0944004010
ref: 49
SPRING
€ 1.50
50
0211275163
ref: 50
02112-7516A
SCREW
€ 2.50
