prices are in EUR
ref
part #
description
quantity

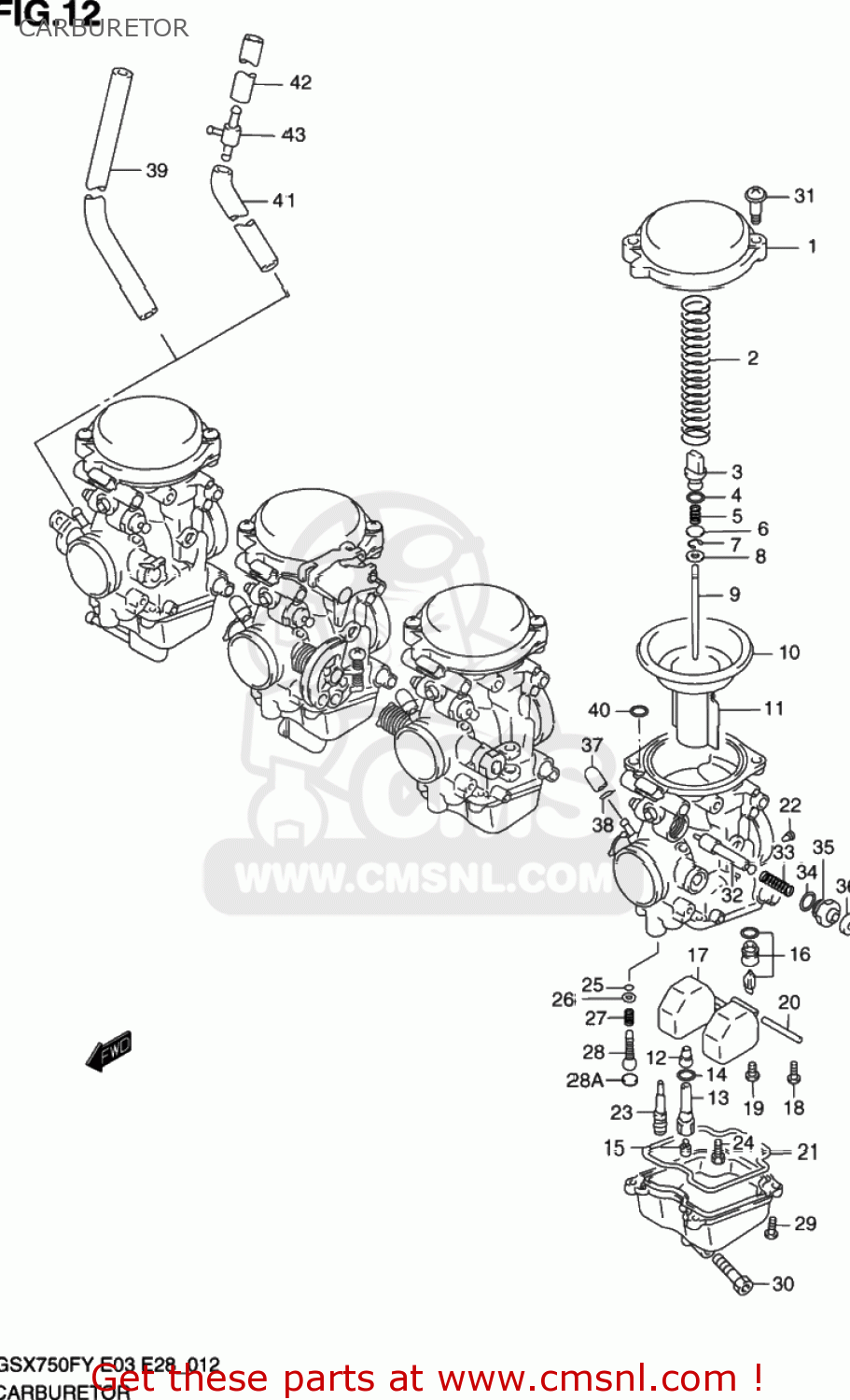

CARBURETOR ASSEMBLY,LEFT
CARBURETOR ASSEMBLY,LEFT
CARBURETOR ASSEMBLY,MIDDLE,LEFT
CARBURETOR ASSY,ML
CARBURETOR ASSEMBLY,MIDDLE,LEFT
CARBURETOR ASSY,ML
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
CARBURETOR ASSY,MR
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
CARBURETOR ASSY,MR
CARBURETOR ASSEMBLY,RIGHT
CARBURETOR ASSEMBLY,RIGHT
CARBURETOR ASSEMBLY,RIGHT
1
COVER,DIAPHRAGM
2
SPRING
3
HOLDER
4
O RING(D:1.9,ID:4.8)
5
SPRING
6
WASHER
7
E RING,MULTIPLE JET NOZZLE
8-2
RING
10
DIAPHRAGM
11
VALVE,PISTON
12
JET,NEEDLE(P-0M)
13
HOLDER,JET
14
O RING
15
JET,MAIN
16-1
VALVE ASSEMBLY,NEEDLE
16-2
VALVE ASSY,NEEDLE
17
FLOAT ASSY
19
SCREW
20
PIN,FLOAT
21
GASKET (NAS)
22-1
JET,PILOT AIR(140)
22-2
JET,POWER(130)
23
JET,PILOT(12.5)
24
JET,STARTER(50)
25
O RING,PILOT AIR SCREW
26
WASHER
27
SPRING,THROTTLE SCREW
28A
PLUG
28-1
ADJUSTER
28-2
ADJUSTER
29
SCREW
30-1
SCREW,DRAIN
30-2
PLUG,DRAIN
30-3
SCREW,DRAIN
31
SCREW
32
PLUNGER
33
SPRING
34
O RING
35
GUIDE SCREW,PLUNGER
36
CAP,STARTER VALVE
37
CAP
38
CLIP
39-2
HOSE
39-2
HOSE
40
O RING
41-2
HOSE
41-3
HOSE(5X9X600)
41-3
HOSE(5X9X600)
42-2
HOSE(5X9X600)
42-2
HOSE(5X9X600)
43
NIPPLE
