STARTER CLUTCH

GSX750F KATANA 1999 (X) USA (E03)

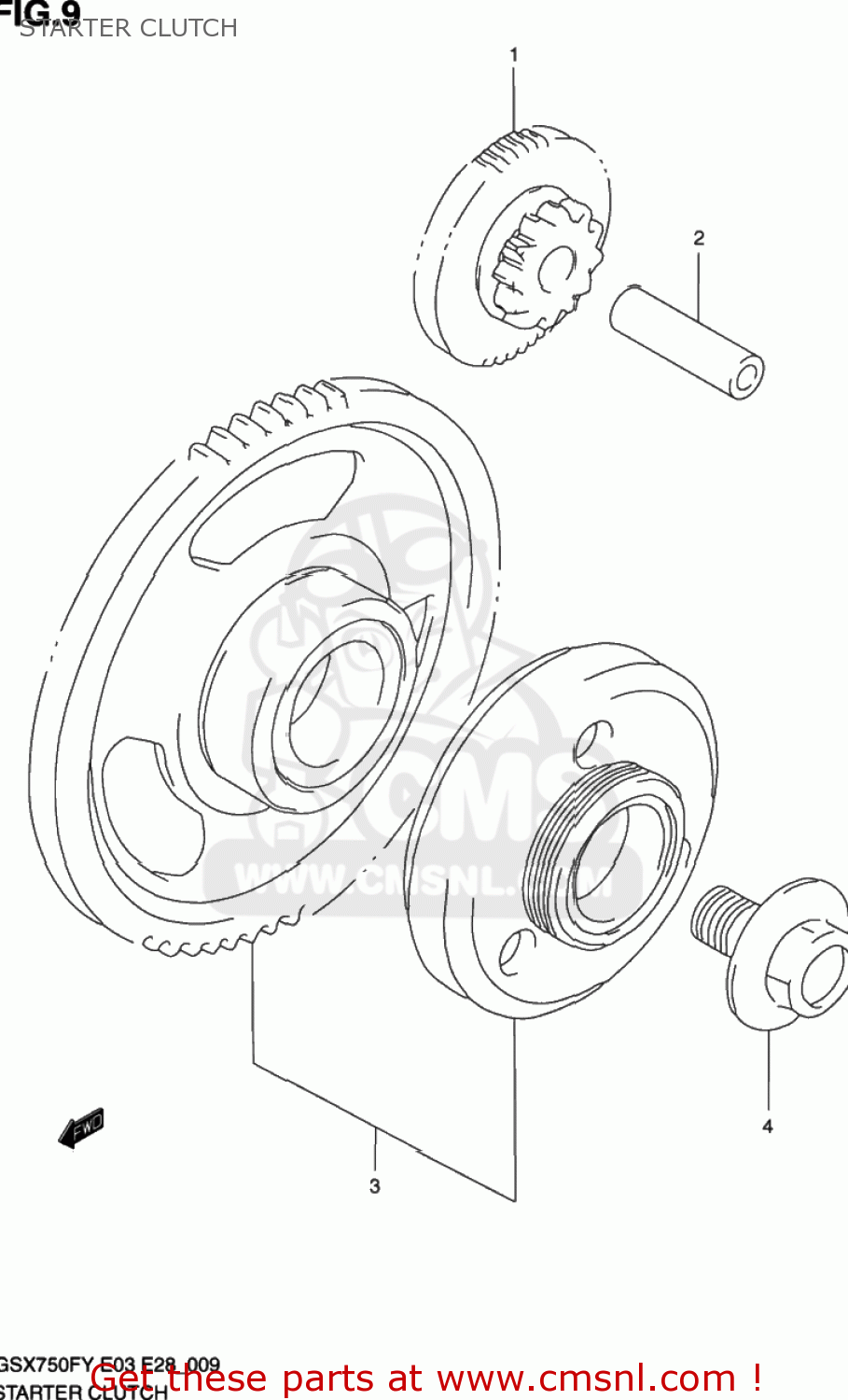

Starter clutch diagram GSX750F KATANA 1999 (X) USA (E03)

STARTER CLUTCH GSX750F KATANA 1999 (X) USA (E03)

STARTER CLUTCH GSX750F KATANA 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3
12600-48813

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
