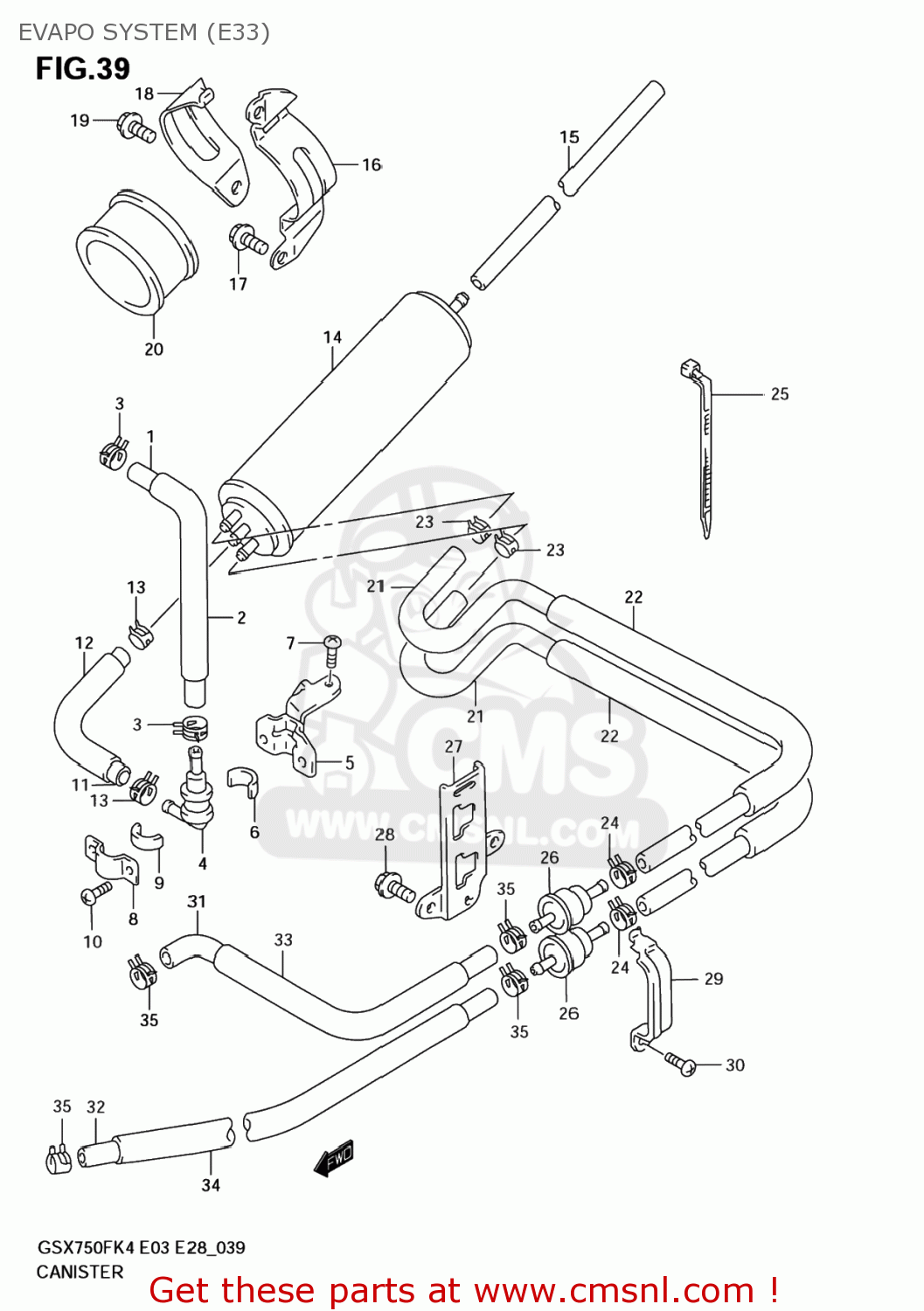

prices are in EUR
ref
part #
description
quantity
1
HOSE(5.4X11.4X600)
2
PROTECTOR(14.5X15.5X600)
3
CLIP
4
VALVE,FUEL TANK BREATHER
6
CUSHION
7
SCREW 6X12
8
PLATE,FUEL TANK BREATHER NO.2
9
CUSHION
10
SCREW
11
HOSE,VALVE & CANISTER CHARGE
12
PROTECTOR(14.5X15.5X600)
13
CLIP
14
CANISTER ASSY,CHARCOAL
15
HOSE(7X12X600)
16
BRACKET,CANISTER MOUNTING
17
BOLT
19
SCREW 6X12
21
HOSE,CSTR & PURGE VALVE
22
PROTECTOR(14.5X15.5X600)
23
CLIP
24
CLIP
25
CLAMP(L:95)
27
BRACKET,CANISTER PURGE VALVE
28
BOLT
30
SCREW
31
HOSE,CARB & PURGE NO.1
32
HOSE,CARBURETOR & PURGE NO.2
33
PROTECTOR(14.5X15.5X600)
35
CLIP
