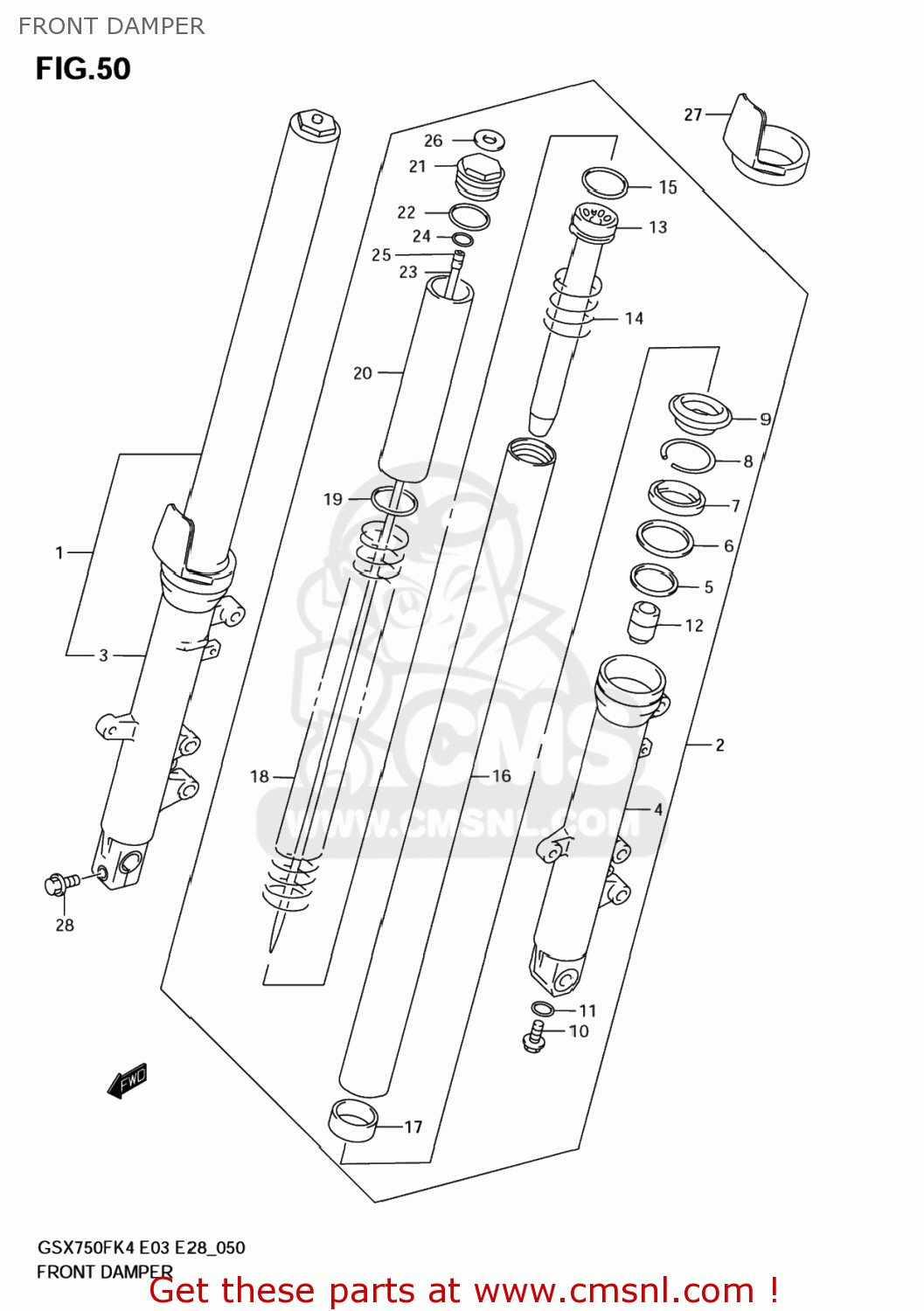

FRONT DAMPER

ref

part #

description

quantity

1

5110308FC0
ref: 1

DAMPER ASSY,FR FORK,R

€ 787.50

2

5110408FC0
ref: 2

DAMPER ASSY,FR FORK,L

€ 888.50

3

5113008F10
ref: 3

TUBE,OUTER,R

€ 369.00

4

5114008F10
ref: 4

TUBE,OUTER,L

€ 373.00

5

5115211D60
ref: 5

BUSH,GUIDE

€ 12.00

6

5116838B00
ref: 6

SPACER,SEAL

€ 5.00

7

5115308D00
ref: 7

SEAL,OIL

€ 15.50

8

5155638B00
ref: 8

CIRCLIP,FORK OIL SEAL

€ 4.50

9

5157147D50
ref: 9

SEAL,DUST

€ 18.00

10

5114748130
ref: 10

BOLT(8X27)

€ 3.50

11

5114836011
ref: 11

GASKET (NAS)

€ 4.00

12

5119510F00
ref: 12

PIECE,OIL LOCK

€ 18.50

13

5119408FA0
ref: 13

SEAT,UNDER

€ 85.00

14

5117748B31
ref: 14

SPRING,REBOUND

€ 12.00

15

5119612C00
ref: 15

RING,PISTON

€ 5.50

16

5111008FA0
ref: 16

TUBE,INNER

€ 402.50

17

5112148B31
ref: 17

BUSH,SLIDE

€ 15.50

18

5117108FA0
ref: 18

SPRING,FR

€ 68.50

19

5119219C00
ref: 19

JOINT,SPRING

€ 3.50

20

5117619C00
ref: 20

COLLAR,SPRING

€ 8.50

21

5135120C20
ref: 21

BOLT,FORK

€ 48.00

22

5111712C00
ref: 22

O RING

€ 3.00

23

5211108F00
ref: 23

ROD,DAMPER

€ 75.00

24

0928003002
ref: 24

O RING(D:1.9,ID:3.8)

€ 2.00

25

5116920C20
ref: 25

RING,STOPPER(ID:6.1,D:0.6)

€ 4.00

26

5114920C20
ref: 26

LABEL,S-H

€ 5.00

27

5120132F00
ref: 27

PROTECTOR

€ 17.00

28

0155008407
ref: 28

BOLT

€ 3.50
