TURN SIGNAL LAMP (MODEL K6)

GSX750F KATANA 2005 (K5) USA (E03)

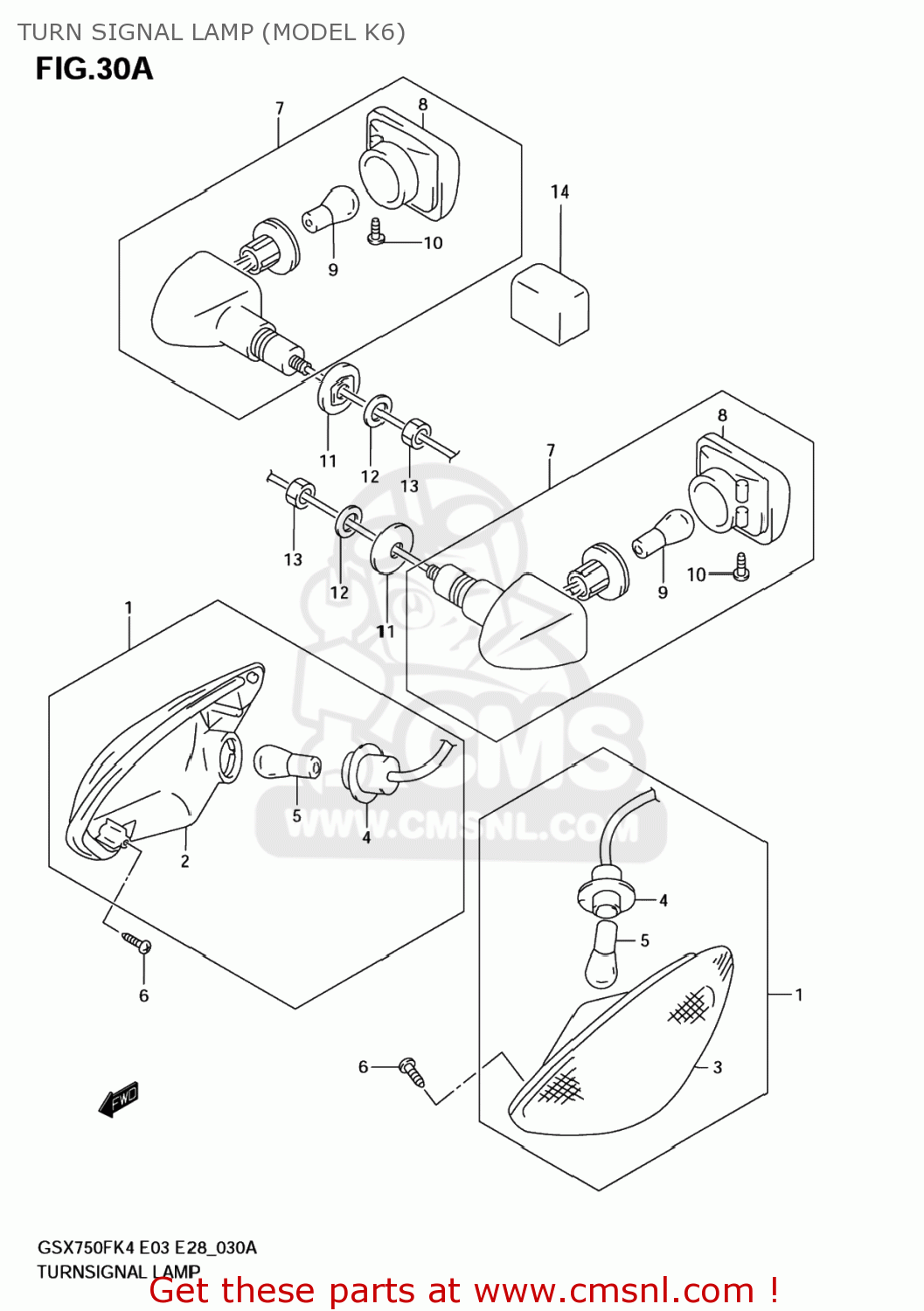

Turn signal lamp (model k6) diagram GSX750F KATANA 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3560108F10
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 65.00

1-2

3560208F10
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 65.00

3561008F10
ref: 2

LAMP UNIT,R

€ 47.50

3563008F10
ref: 3

LAMP UNIT,L

€ 47.50

4-1

3561808F10
ref: 4-1

SOCKET & CORD,R

€ 26.00

4-2

3563808F10
ref: 4-2

SOCKET & CORD,L

€ 186.00

0947112186
ref: 5

BULB(12V21W,AMBER)

€ 2.50

0354105163
ref: 6
03541-0516A

SCREW

€ 1.50

7-1

3560324F30
ref: 7-1

LAMP ASSY,RR TURNSIGNAL,R

€ 110.00

7-2

3560424F30
ref: 7-2

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

3561024F30
ref: 8

LAMP UNIT

€ 48.00

0947112186
ref: 9

BULB(12V21W,AMBER)

€ 2.50

0324204123
ref: 10
03242-0412B

SCREW

€ 2.00

3569517C00
ref: 11

SPACER,RR TURNSIGNAL

€ 3.00

0916010501
ref: 12

WASHER(10.5X30X2.3)

€ 2.50

0831000103
ref: 13
08310-0010A

NUT

€ 2.00

3861003F00
ref: 14

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50

TURN SIGNAL LAMP (MODEL K6)

all assemblies
