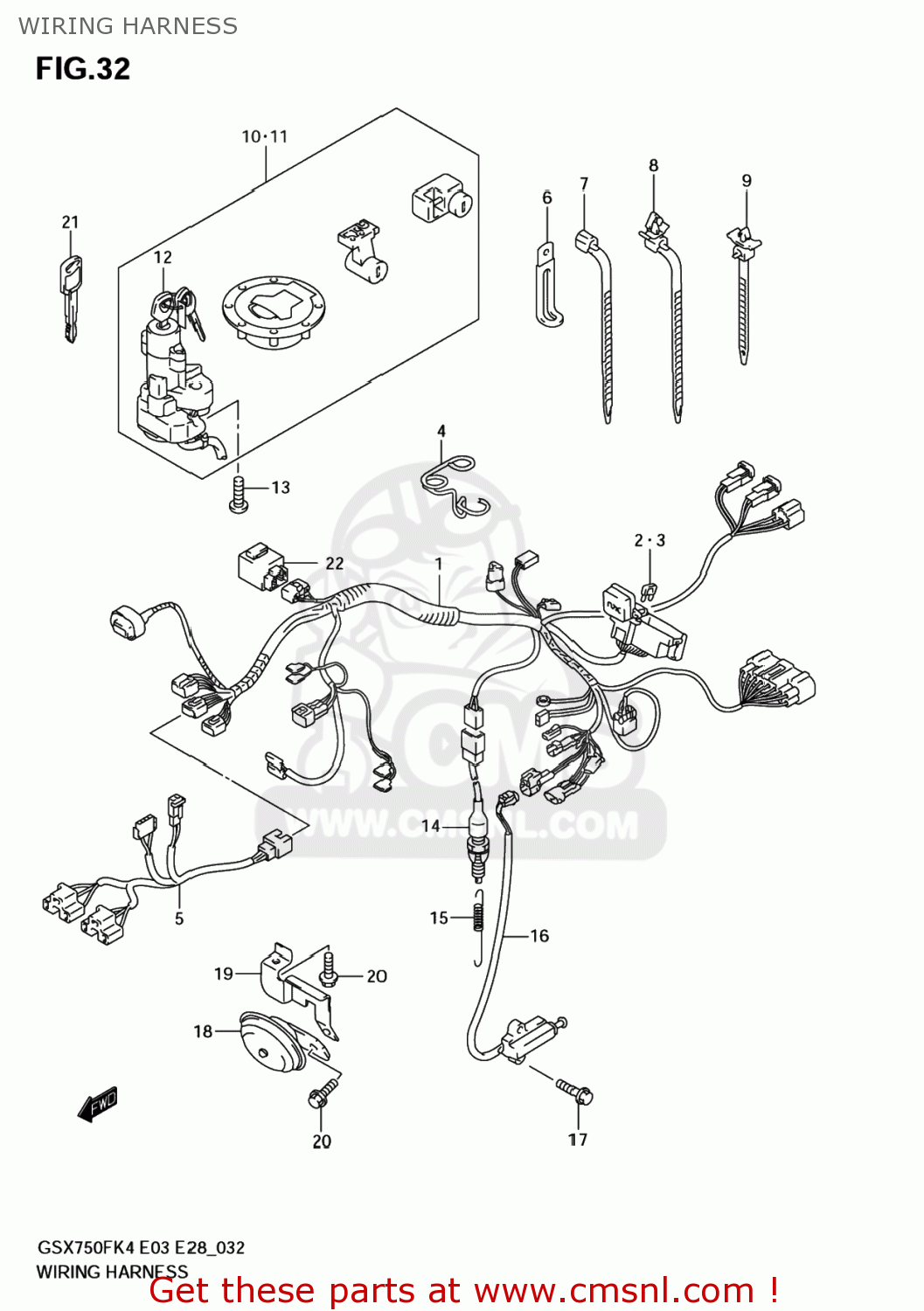

WIRING HARNESS

ref

part #

description

quantity

1-1

3661008FC0
ref: 1-1

HARNESS,WIRING

€ 0.00

1-2

3661008FE0
ref: 1-2

HARNESS,WIRING

€ 0.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661908F00
ref: 4

GUIDE,WIRING HARNESS

€ 9.00

5

3662008FA0
ref: 5

HARNESS,WIRING NO.2

€ 0.00

6

3685308F00
ref: 6

WIRE,LEAD

€ 33.50

7

0940406435
ref: 7

CLAMP(L:135)

€ 2.50

8-1

0940711401
ref: 8-1

CLAMP(L:95)

€ 2.50

8-2

0940714403
ref: 8-2

CLAMP(L:125)

€ 2.50

8-3

0940718402
ref: 8-3

CLAMP(L:165)

€ 2.50

9-1

0940711402
ref: 9-1

CLAMP(L:90)

€ 2.50

9-2

0940714408
ref: 9-2
09407-17402

CLAMP(L:120)

€ 5.00

10-1

3710533850
ref: 10-1
37105-33851

LOCK SET

€ 479.50

10-2

3710633810
ref: 10-2
37105-33851

LOCK SET

€ 479.50

11-1

3710333820
ref: 11-1

LOCK SET

€ 141.50

11-2

3710633820
ref: 11-2
37103-33820

LOCK SET

€ 141.50

12-1

3710033E20
ref: 12-1

LOCK ASSY,STEERING

€ 223.50

12-2

3710033E60
ref: 12-2
37100-33E20

LOCK ASSY,STEE

€ 223.50

13

0913908016
ref: 13

BOLT(8X20)

€ 3.50

14

3774019F00
ref: 14

SWITCH ASSY,STOP LAMP

€ 21.00

15

0944306005
ref: 15

SPRING

€ 6.00

16

3784044X50
ref: 16

SWITCH ASSY,SIDE STAND

€ 75.50

17

0155006163
ref: 17
01550-0616A

BOLT

€ 2.50

18

3850008F10
ref: 18

HORN ASSY

€ 75.50

19

3859008F00
ref: 19

BRACKET,HORN

€ 7.00

20

0155008123
ref: 20
01550-0812A

BOLT

€ 3.50

21

3714633E00
ref: 21

KEY,BLANK

€ 13.00

22

3887048B00
ref: 22

CONTROLLER ASSY,FAN MOTOR

€ 145.50

all assemblies
