SIGNAL GENERATOR

GSX750F KATANA 2005 (K5) USA (E03)

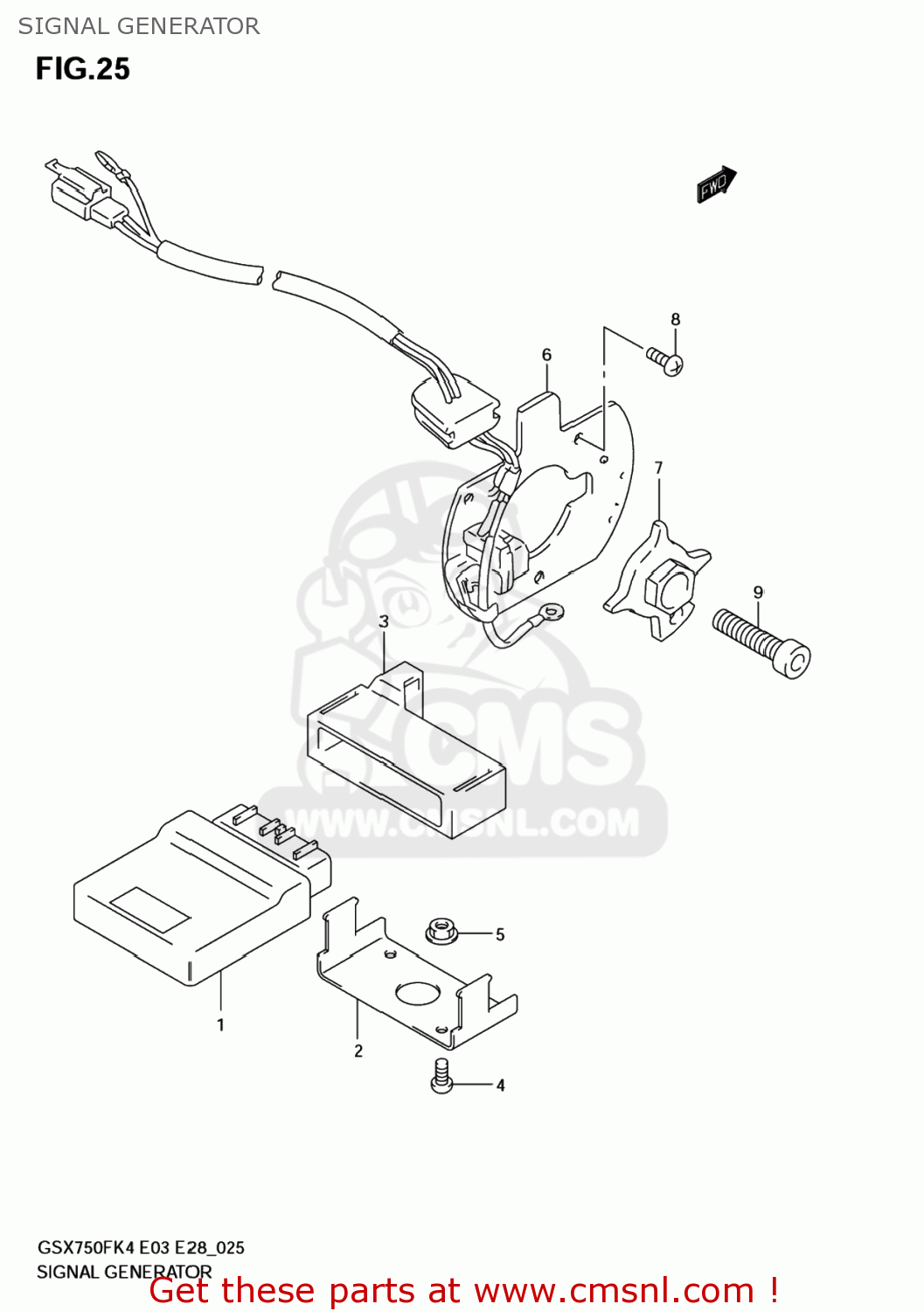

Signal generator diagram GSX750F KATANA 2005 (K5) USA (E03)

SIGNAL GENERATOR GSX750F KATANA 2005 (K5) USA (E03)

SIGNAL GENERATOR GSX750F KATANA 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3290008FM0
ref: 1

IGNITOR ASSY

€ 0.00

2

3293308F10
ref: 2

BRACKET,IGNITOR

€ 4.50

3

3298041F00
ref: 3

COVER,IGNITOR

€ 9.00

4

0214205123
ref: 4
02142-0512A

SCREW 5X12

€ 1.50

5

0831610053
ref: 5
08316-1005A

NUT

€ 2.50

6

3311031F00
ref: 6
33110-31F01

STATOR,SIGNAL GENERATOR

€ 323.50

7

3312019C20
ref: 7

ROTOR,SIGNAL GENERATOR

€ 182.00

8

0211205103
ref: 8
02112-0510A

SCREW

€ 2.00

9

0713008303
ref: 9
07130-0830A

BOLT

€ 3.00
