CAM CHAIN

GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

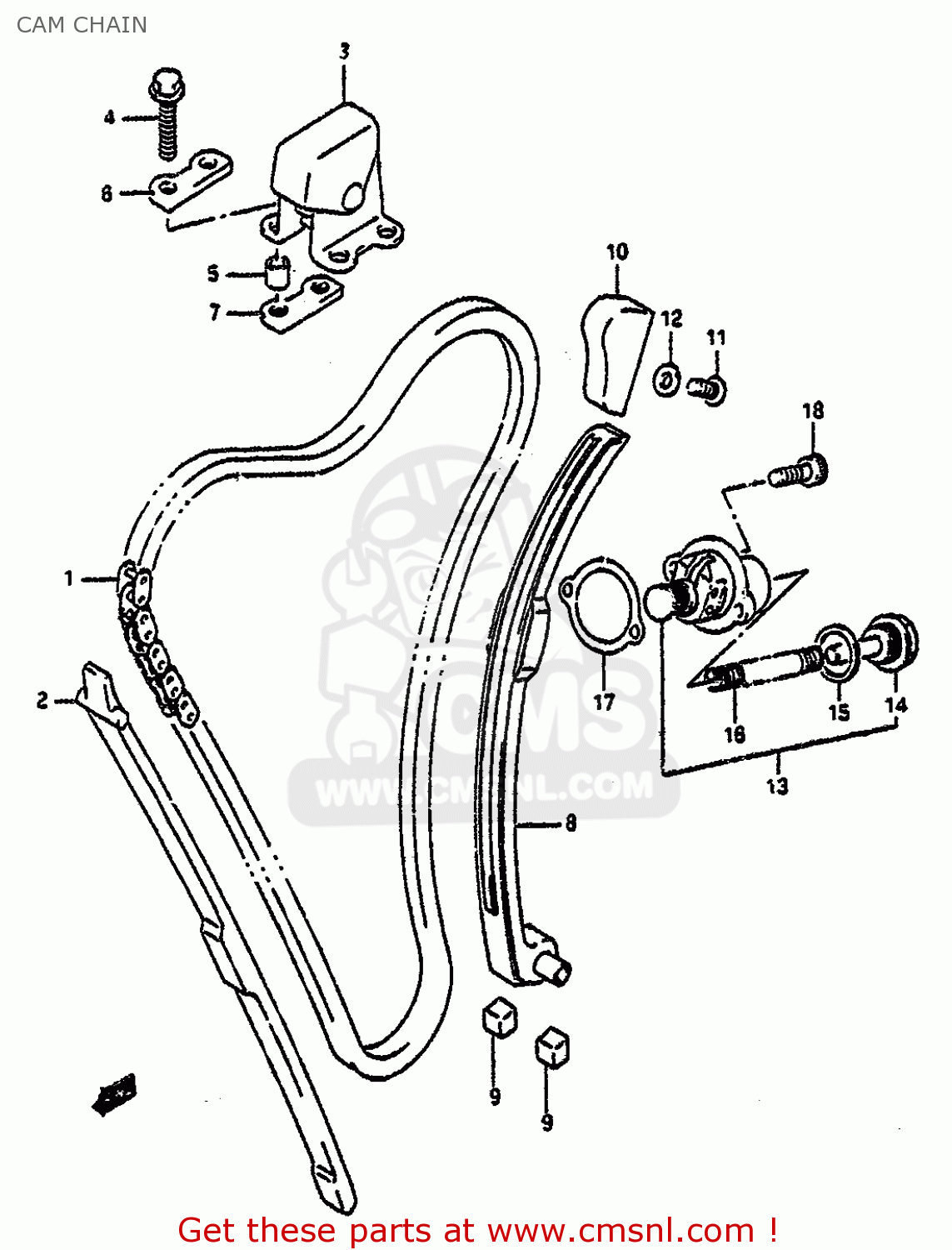

Cam chain diagram GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1276040C01
ref: 1
-12760-40C00

CHAIN,CAMSHAFT DRIVE

€ 114.50

1277106B01
ref: 2

GUIDE,CAM CHAIN NO.1

€ 37.00

1278040C00
ref: 3

IDLER,CAM CHAIN

€ 84.00

0151706307
ref: 4

BOLT

€ 2.00

0918006167
ref: 5

SPACER (6,8X10X9.4)

€ 2.50

1278848B01
ref: 6

CUSION,IDLER

€ 15.00

1278848B11
ref: 7

CUSHION,IDLER

€ 14.50

1281040C00
ref: 8

TENSIONER,CAM CHAIN

€ 69.00

1281434200
ref: 9

CUSHION,CAM CHAIN TENSIONER

€ 6.50

1279106B01
ref: 10

GUIDE,CAM CHAIN NO.2

€ 59.00

0151706105
ref: 11

BOLT

€ 2.50

0916806023
ref: 12

GASKET(5.8X13X1.2) (NAS)

€ 2.00

1283048B02
ref: 13

ADJUSTER ASSEMBLY,TENSIONER

€ 622.00

1283427A00
ref: 14

PLUG

€ 20.50

1283227A00
ref: 15

GASKET (NAS)

€ 5.50

1283306B00
ref: 16

SPRING

€ 17.00

1283727A10
ref: 17
-12837-27A00-H17

GASKET,TENSIONER ADJUSTER (NAS)

€ 8.50

0711006255
ref: 18

BOLT

€ 3.00
