FUEL COCK

GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

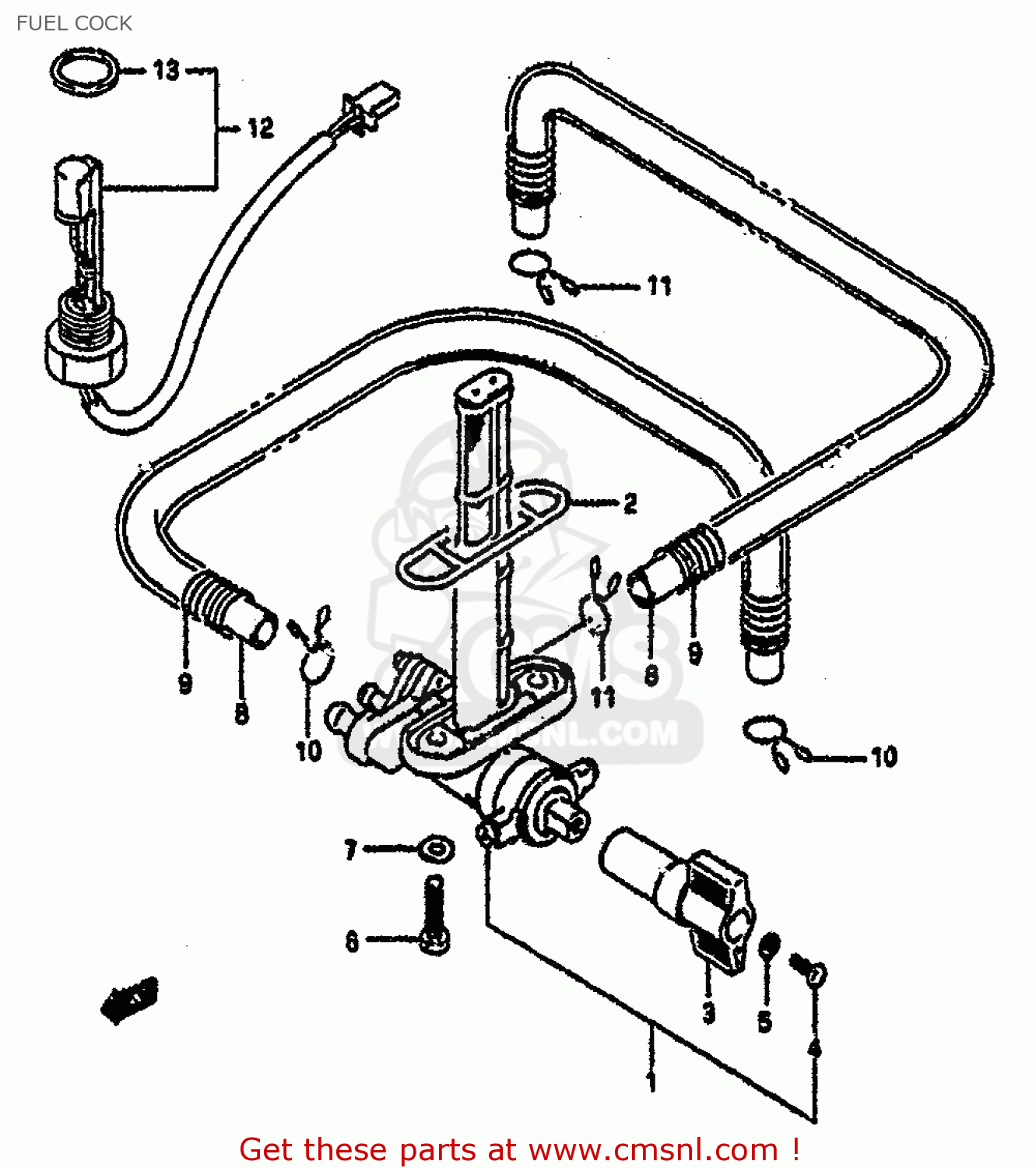

Fuel cock diagram GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

4430041C00
ref: 1-1
MODEL M

COCK ASSEMBLY,FUEL

€ 243.00

1-2

4430041C01
ref: 1-2
MODEL N

COCK ASSEMBLY,FUEL

€ 243.00

1-3

4430017C01
ref: 1-3
MODEL M E18,E39

COCK ASSEMBLY,FUEL

€ 243.00

1-4

4430017C02
ref: 1-4
MODEL N E18,E39

COCK ASSEMBLY,FUEL

€ 243.00

4430517C00
ref: 2

O RING,FUEL TANK JOINT

€ 9.00

4430617C00
ref: 3

LEVER,FUEL COCK

€ 16.00

0211204126
ref: 4

SCREW

€ 1.50

0832121046
ref: 5

LOCK WASHER

€ 2.00

0912806006
ref: 6

BOLT(6X20)

€ 2.00

0916806026
ref: 7

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0935270103300
ref: 8

HOSE

€ 8.00

0944013047
ref: 9

SPRING

€ 6.00

0940110403
ref: 10

CLIP

€ 7.00

11-1

0940110201
ref: 11-1

CLIP

€ 2.00

11-2

0940111411
ref: 11-2
E16

CLIP

€ 4.50

3481040C00
ref: 12

GAUGE ASSEMBLY,FUEL LEVEL

€ 120.50

3482540C00
ref: 13

GASKET,FUEL LEVEL GAUGE (NAS)

€ 6.50
