CYLINDER HEAD COVER

GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

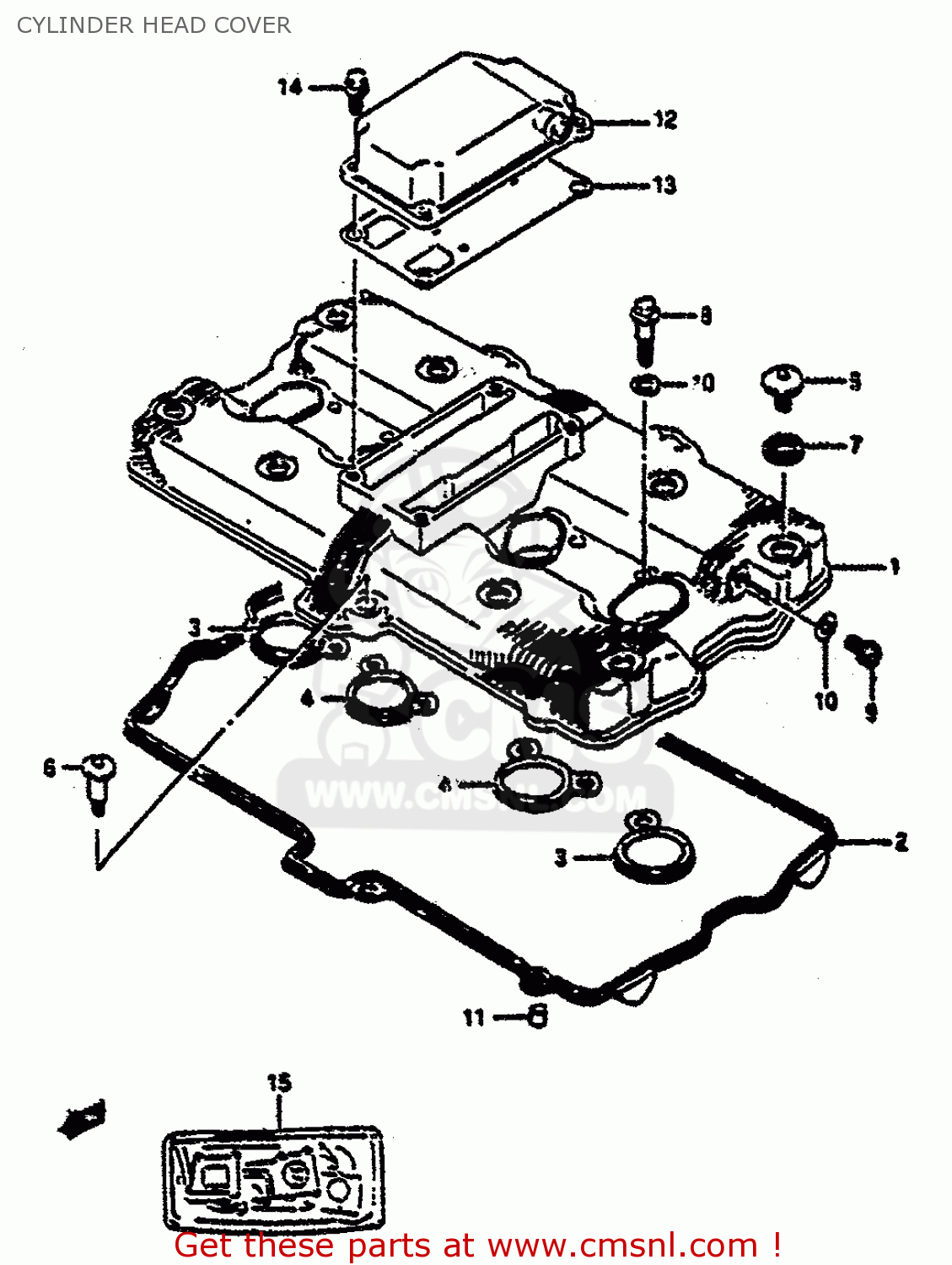

Cylinder head cover diagram GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1117117C00
ref: 1

COVER,CYLINDER HEAD

€ 461.00

1117306B02
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.50

1117827A01
ref: 3

GASKET,HEAD COVER NO.2 (NAS)

€ 5.50

1117927A02
ref: 4

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

0910607010
ref: 6

BOLT(7X31)

€ 4.50

0916111008
ref: 7

WASHER(10.6X25.5X2.3)

€ 4.50

0936008009
ref: 8

BOLT,UNION 8X35

€ 26.50

0711008125
ref: 9

PLUG, HEAD COVER

€ 2.50

0916808008
ref: 10

GASKET 8.2X14X1 (NAS)

€ 1.00

0422108129
ref: 11

PIN

€ 2.00

12-1

1117626D00
ref: 12-1

COVER,BREATHER

€ 35.50

12-2

1117648B10
ref: 12-2
E18,E39

COVER,BREATHER

€ 26.00

13-1

1117726D00
ref: 13-1

GASKET,BREATHER COVER ( (NAS)

€ 12.50

13-2

1117748B00H17
ref: 13-2
E18,E39

GASKET,BREATHER (NAS)

€ 10.50

14-1

0151706254
ref: 14-1

BOLT

€ 2.50

14-2

0151706204
ref: 14-2
E18,E39

BOLT 6X20

€ 2.50

15-1

1140026860
ref: 15-1

GASKET SET

€ 263.00

15-2

1140148814
ref: 15-2
E18,E39,OPT

GASKET SET (NAS)

€ 338.00
