FRAME

GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

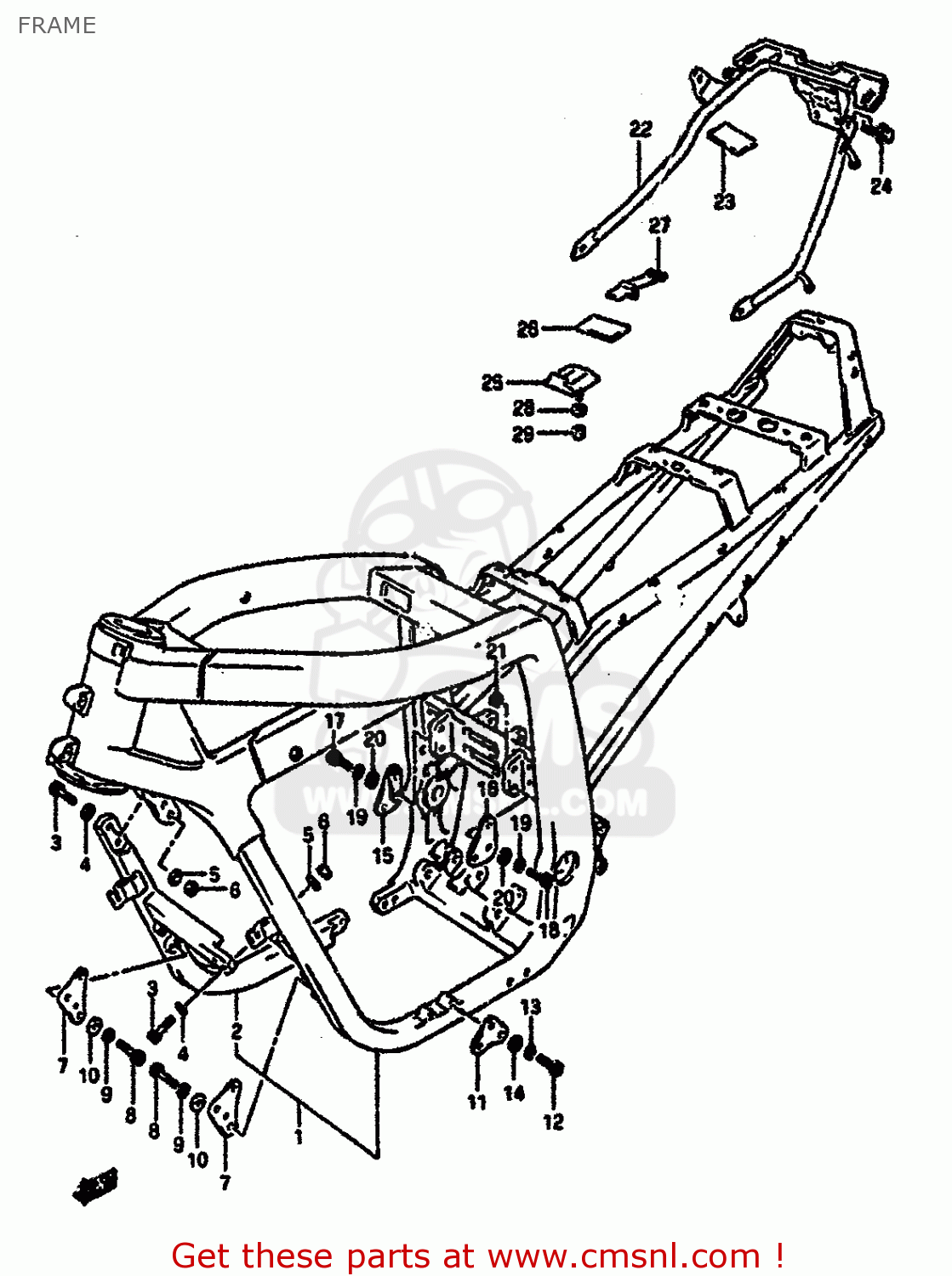

Frame diagram GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FRAME GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FRAME GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FRAME GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4110041810
ref: 1-1
FRAME
€ 4,714.00
1-2
4110041830
ref: 1-2
E18,E39
FRAME SET
€ 4,714.00
2
4114040C30
ref: 2
TUBE COMP,FRAME DOWN,RIGHT
€ 0.00
3
0711010357
ref: 3
BOLT, LH
€ 3.50
4
0916010013
ref: 4
WASHER (10.1X21X2.3)
0916010013
€ 2.00
5
0916410005
ref: 5
WASHER
0916410005
€ 6.50
6
0915910027
ref: 6
NUT
0915910027
€ 3.00
7
4191141C00
ref: 7
PLATE,ENG MTG NO.1
€ 25.00
8
0711008257
ref: 8
BOLT, FRONT LH
0711008257
€ 3.50
9
0832131087
ref: 9
WASHER,LOCK
€ 2.00
10
0916008010
ref: 10
WASHER (8.2X20X1.6)
0916008010
€ 1.50
11
4192117C02
ref: 11
PLATE,ENGINE MOUNT NO.2
4192117C02
€ 17.00
12
0711008257
ref: 12
BOLT, FRONT LH
0711008257
€ 3.50
13
0832131087
ref: 13
WASHER,LOCK
€ 2.00
14
0916008010
ref: 14
WASHER (8.2X20X1.6)
0916008010
€ 1.50
15
4194040C01
ref: 15
PLATE,ENGINE MOUNT NO.3,R
€ 15.50
16
4195040C01
ref: 16
PLATE,ENGINE MOUNTING NO
€ 14.00
17
0711008357
ref: 17
BOLT, FRONT RH
0711008357
€ 4.50
18
0910608005
ref: 18
BOLT(8X22)
0910608005
€ 2.00
19
0832131087
ref: 19
WASHER,LOCK
€ 2.00
20
0916008010
ref: 20
WASHER (8.2X20X1.6)
0916008010
€ 1.50
21
0831931087
ref: 21
NUT
0831931087
€ 2.50
22-1
4398041C00
ref: 22-1
GRIP, REAR
€ 106.00
22-2
4398041C10
ref: 22-2
E39
GRIP COMP,REAR
€ 106.00
23
4188106C00
ref: 23
TAPE,FRAME PROTECTOR
€ 7.00
24
0131708207
ref: 24
BOLT
€ 0.00
25
4155049200
ref: 25
HOLDER,TOOL
€ 10.00
26
4488538A00
ref: 26
CUSHION
4488538A00
€ 3.00
27
0946200093
ref: 27
BAND
0946200093
€ 8.50
28
0916006006
ref: 28
WASHER
0916006006
€ 2.00
29
0831921066
ref: 29
NUT
0831921066
€ 2.00
