OIL COOLER

GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

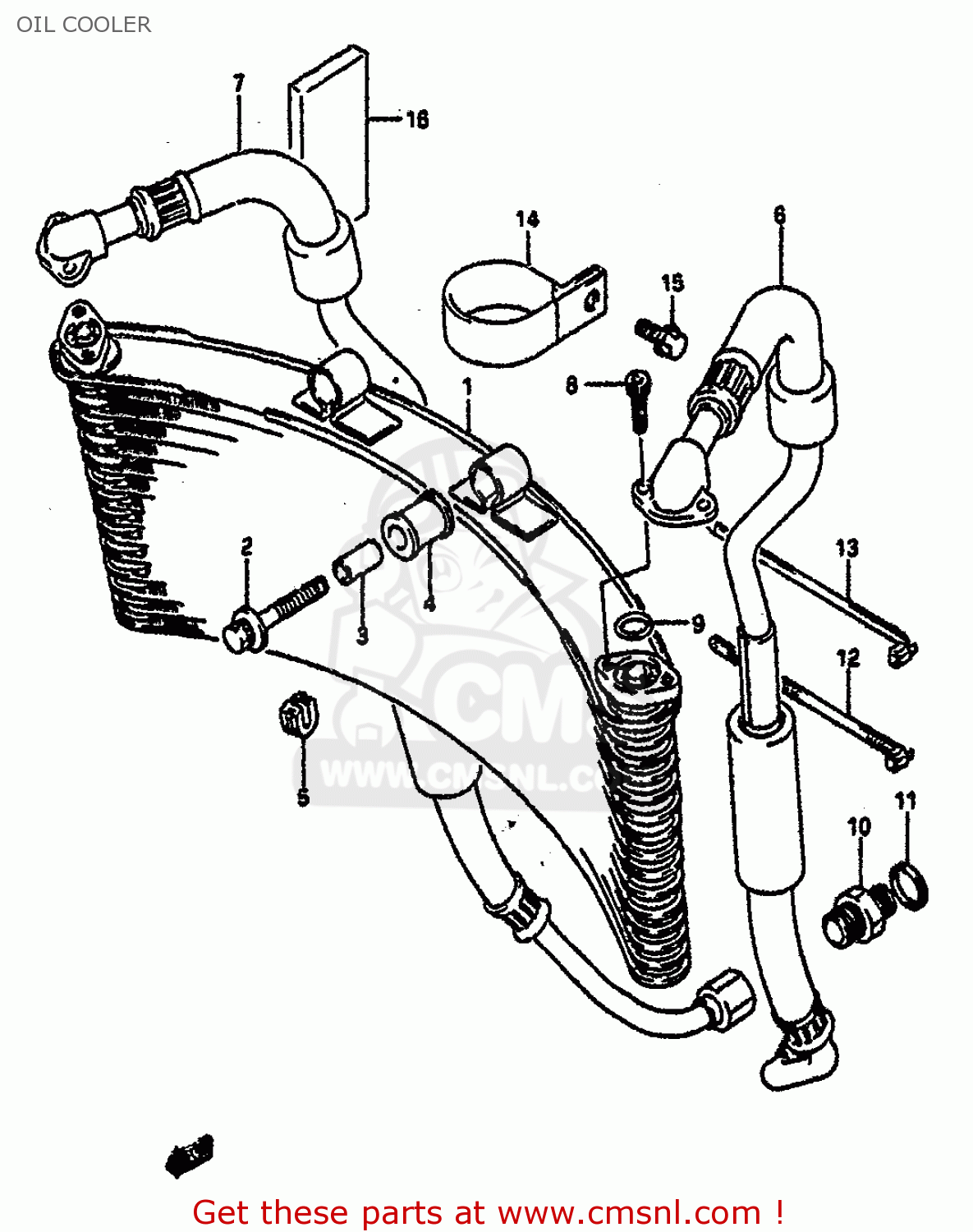

Oil cooler diagram GSXR1100 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1660040C03
ref: 1

COOLER ASSY,OIL

€ 1,326.50

0911808131
ref: 2

BOLT(8X40)

€ 3.50

0918008124
ref: 3

SPACER (8.8X12X24.5)

€ 7.00

1662927A01
ref: 4

CUSHION,OIL COOLER NO.1

€ 4.00

1662827A00
ref: 5

CUSHION,OIL COOLER NO.2

€ 3.00

1646040C10
ref: 6

HOSE,OIL COOLER,L

€ 187.00

1647040C10
ref: 7

HOSE,OIL COOLER,R

€ 187.00

0711006165
ref: 8

BOLT

€ 3.00

0928012008
ref: 9

O RING(D:2.4,ID:12.3)

€ 3.00

0936020002
ref: 10

BOLT UNION

€ 12.00

0916816002
ref: 11

GASKET(16X22X2) (NAS)

€ 2.00

12-1

0940722404
ref: 12-1

CLAMP

€ 2.50

12-2

0940722404
ref: 12-2
E34

CLAMP

€ 2.50

0940725401
ref: 13

CLAMP(L:235)

€ 4.00

14-1

0940338401
ref: 14-1

CLAMP

€ 4.50

14-2

0940338401
ref: 14-2
E34,RH

CLAMP

€ 4.50

15-1

0151706128
ref: 15-1

BOLT

€ 2.50

15-2

0151706128
ref: 15-2
E34,RH

BOLT

€ 2.50

9443517D00
ref: 16

PROTECTOR

€ 3.00
