CYLINDER

GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

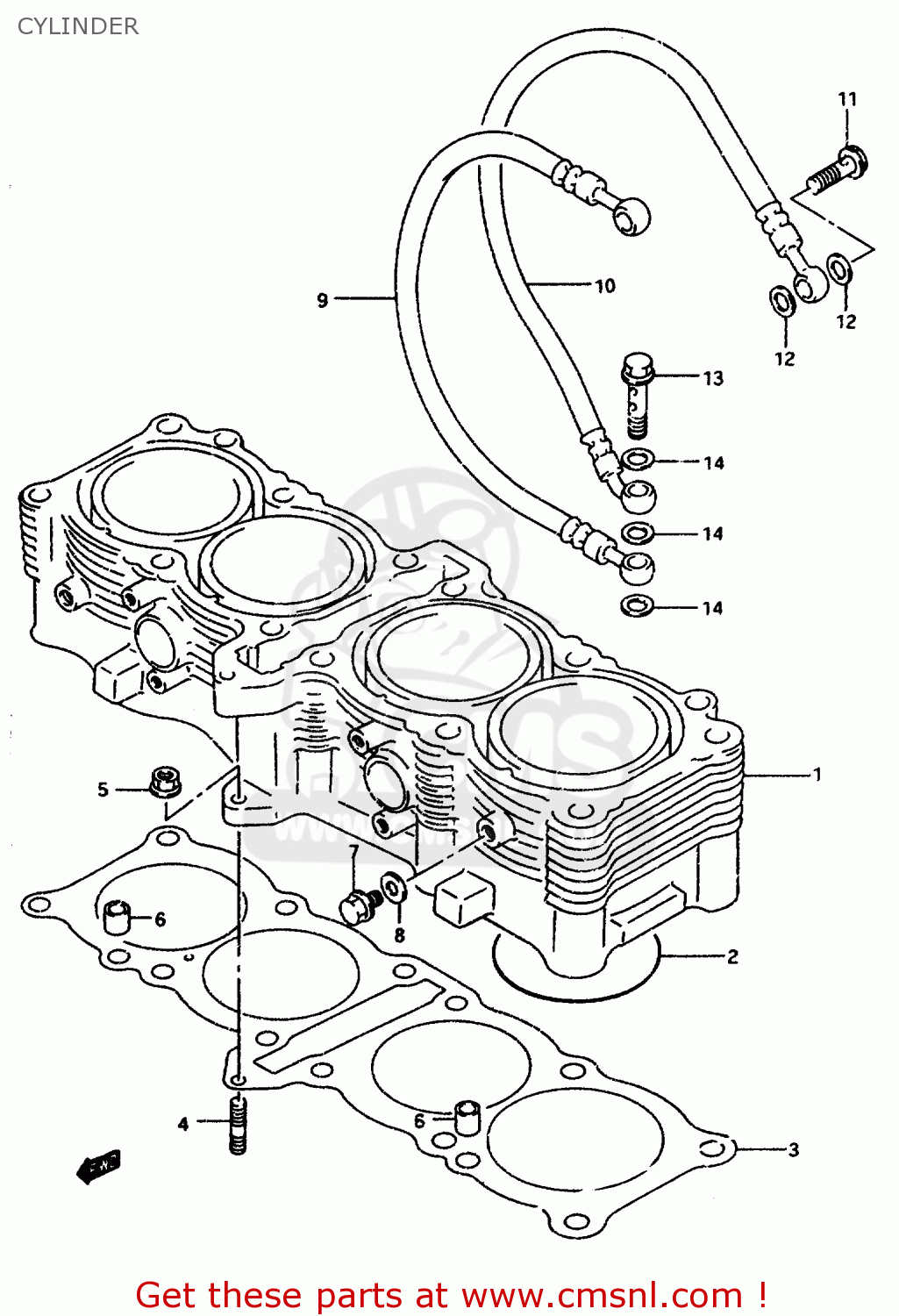

Cylinder diagram GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

CYLINDER GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

CYLINDER GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1121046E00
ref: 1-1
MODEL P/R

CYLINDER COMP

€ 1,481.50

1-2

1121046E01
ref: 1-2
MODEL S/T/T

CYLINDER

€ 1,481.50

2

0928081002
ref: 2

O RING(D:1.9,ID:79.5)

€ 24.50

3

1124146E01
ref: 3

GASKET,CYLINDER

€ 35.50

4-1

0142106205
ref: 4-1
MODEL P/R

STUD BOLT L:20

€ 2.50

4-2

0142106203
ref: 4-2
MODEL S/T/V

STUD,M6X1X32

€ 2.50

5-1

0831616064
ref: 5-1
MODEL P

NUT 6MM

€ 2.50

5-2

0831610063
ref: 5-2
MODEL R/S/T/V

NUT

€ 2.50

6

0421111189
ref: 6

PIN

€ 2.00

7

1741514300
ref: 7
MODEL P/R

BOLT,DRAIN

€ 2.00

8

0916808008
ref: 8
MODEL P/R

GASKET 8.2X14X1 (NAS)

€ 1.00

9-1

1128117E00
ref: 9-1
~E.NO.102584

HOSE,OIL

€ 81.50

9-2

1128117E01
ref: 9-2
R.NO.102585~

HOSE,OIL,R

€ 81.50

10-1

1128217E00
ref: 10-1
~E.NO.102584

HOSE,OIL

€ 107.00

10-2

1128217E01
ref: 10-2
E.NO.102585~

HOSE,OIL,L

€ 107.00

11

1128417E00
ref: 11

BOLT,OIL PIPE UNION,NO

€ 15.00

12

0916808016
ref: 12

GASKET(8.2X14X1) (NAS)

€ 1.00

13

1128532C00
ref: 13

BOLT,OIL PIPE UNION,NO

€ 16.50

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00
