HEADLAMP (MODEL T/V)

GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

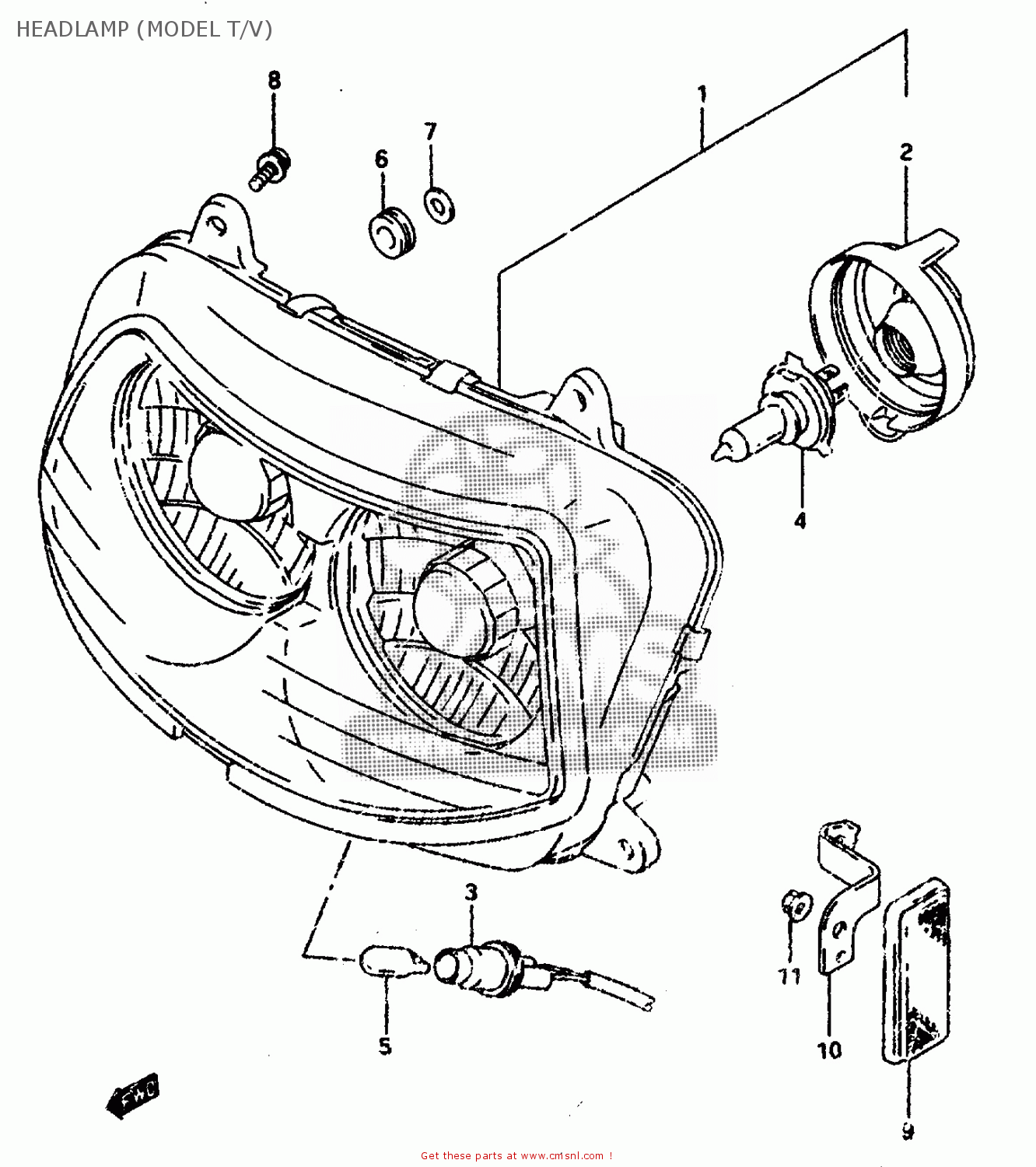

Headlamp (model t/v) diagram GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

HEADLAMP (MODEL T/V) GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
HEADLAMP (MODEL T/V) GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
HEADLAMP (MODEL T/V) GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3510018E11999
ref: 1-1
HEADLAMP ASSY
€ 475.50
1-2
3510018E51999
ref: 1-2
E4,E18E22,E25,E34,E3
HEADLAMP ASSY
3510018E51999
€ 475.50
1-3
3510018E00999
ref: 1-3
E24
HEADLAMP ASSEMBLY
€ 443.50
2
3517318E00
ref: 2
COVER,SOCKET
3517318E00
€ 17.50
3
3611818E51
ref: 3
SOCKET ASSY
3611818E51
€ 15.00
4-1
0947112060
ref: 4-1
BULB(12V60/55W,H4)
0947112060
€ 8.00
4-2
0947112122
ref: 4-2
E4,E18,E22,E25,E34,E
BULB(12V55W/H1/P14.5S/OSRA,PHI
€ 4.00
4-3
0947112060
ref: 4-3
E4,E18,E22,E25,E34,E
BULB(12V60/55W,H4)
0947112060
€ 8.00
5
0947112001
ref: 5
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
6
0916005037
ref: 6
WASHER(5.5X16X1.2)
0916005037
€ 1.50
7
0932008051
ref: 7
CUSHION
0932008051
€ 7.50
8
0351105163
ref: 8
SCREW,SIDE HOL
€ 2.50
9
3595014A00
ref: 9
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
10-1
3595617D00
ref: 10-1
E39
BRACKET,FR SIDE RR,R
3595617D00
€ 6.50
10-2
3595717D00
ref: 10-2
E39
BRACKET,FR SIDE RR,L
3595717D00
€ 6.50
11
0831000053
ref: 11
E39
NUT
€ 2.50
8
0932009034
ref: 8
GROMMET
0932009034
€ 4.50
9
0916006092
ref: 9
WASHER
€ 2.50
10-1
0831011065
ref: 10-1
MODEL P
NUT
€ 2.00
10-2
0831000063
ref: 10-2
MODEL R
NUT 6MM
0831000063
€ 2.00
11-1
0211275165
ref: 11-1
MODEL P
SCREW
0211275165
€ 2.50
11-2
0211275163
ref: 11-2
MODEL R
SCREW
0211275163
€ 2.50
12
3611017E00
ref: 12
LAMP ASSEMBLY,FRONT POSITION
3611017E00
€ 48.00
13
0947112081
ref: 13
BULB(12V5W)
0947112081
€ 1.50
14
3611841C00
ref: 14
SOCKET ASSY
3611841C00
€ 10.50
15
0932008051
ref: 15
CUSHION
0932008051
€ 7.50
16
0916004014
ref: 16
WASHER (4X16X1.2)
0916004014
€ 1.50
17-1
0354104105
ref: 17-1
MODEL P
SCREW
0354104105
€ 1.50
17-2
0354104103
ref: 17-2
MODEL R
SCREW
0354104103
€ 1.50
18
3595014A00
ref: 18
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
19-1
3595617D00
ref: 19-1
E39
BRACKET,FR SIDE RR,R
3595617D00
€ 6.50
19-2
3595717D00
ref: 19-2
E39
BRACKET,FR SIDE RR,L
3595717D00
€ 6.50
20
0831000053
ref: 20
E39
NUT
€ 2.50
