HANDLE SWITCH

GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

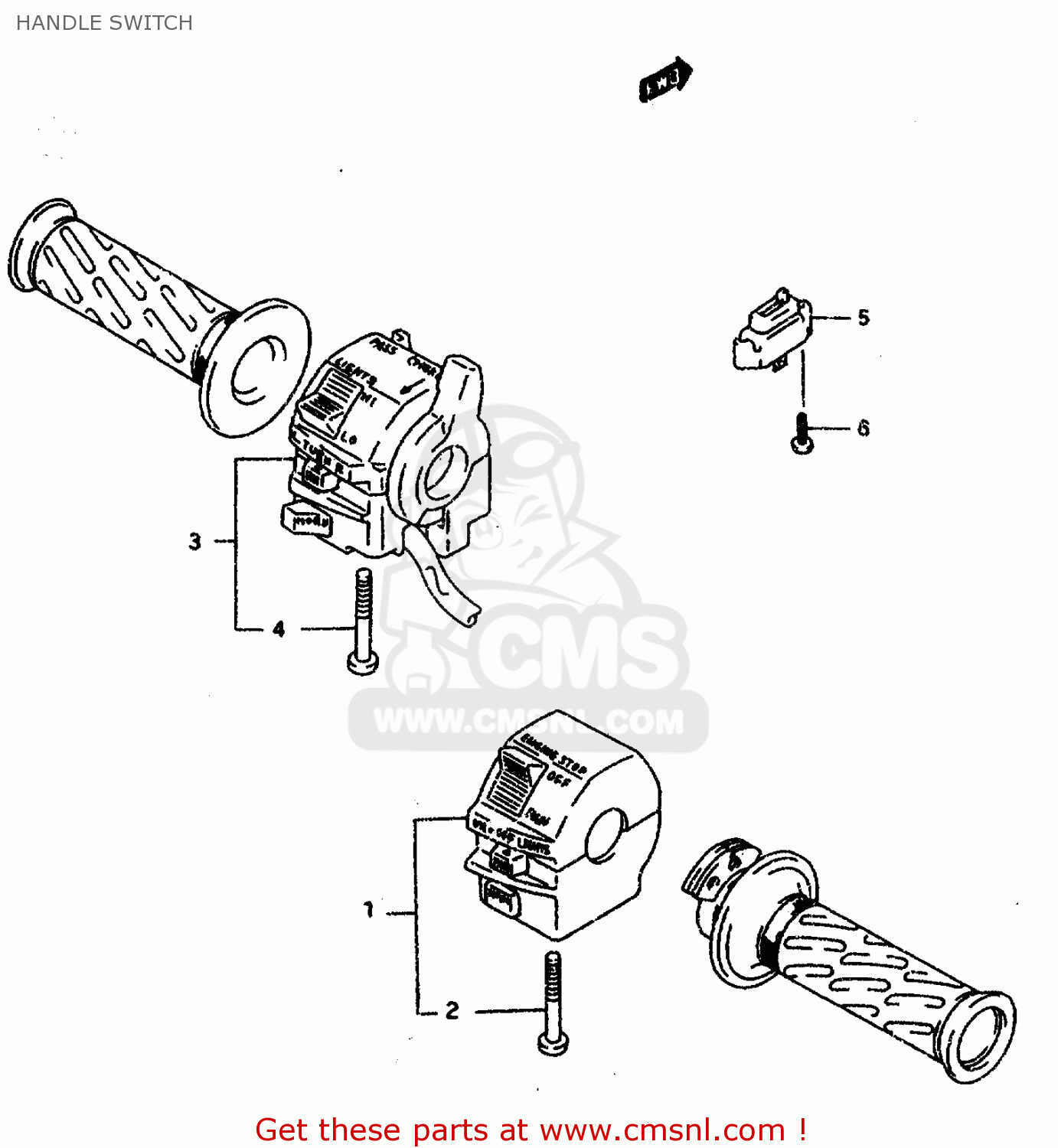

Handle switch diagram GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3720017E12
ref: 1-1
MODEL P/R/S

SWITCH,HANDLE,

€ 121.00

1-2

3720017E13
ref: 1-2
MODEL T

SWITCH,HANDLE,

€ 121.00

1-3

3720017E14
ref: 1-3
MODEL V

SWITCH ASSY,RH

€ 121.00

1-4

3720017E31
ref: 1-4
MODEL P/R/S E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.00

1-5

3720017E40
ref: 1-5
MODEL T E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.00

1-6

3720017E41
ref: 1-6
MODEL V E24

SWITCH ASSEMBLY,RIGHT

€ 108.00

0211205455
ref: 2

SCREW, 5X45

€ 4.00

3740017E11
ref: 3

SWITCH,HANDLE,

€ 157.00

0211205455
ref: 4

SCREW, 5X45

€ 4.00

3756038A90
ref: 5

SWITCH ASSY, CLUTCH

€ 0.00

3756426E00
ref: 6

SCREW

€ 3.00
