WATER PUMP

GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

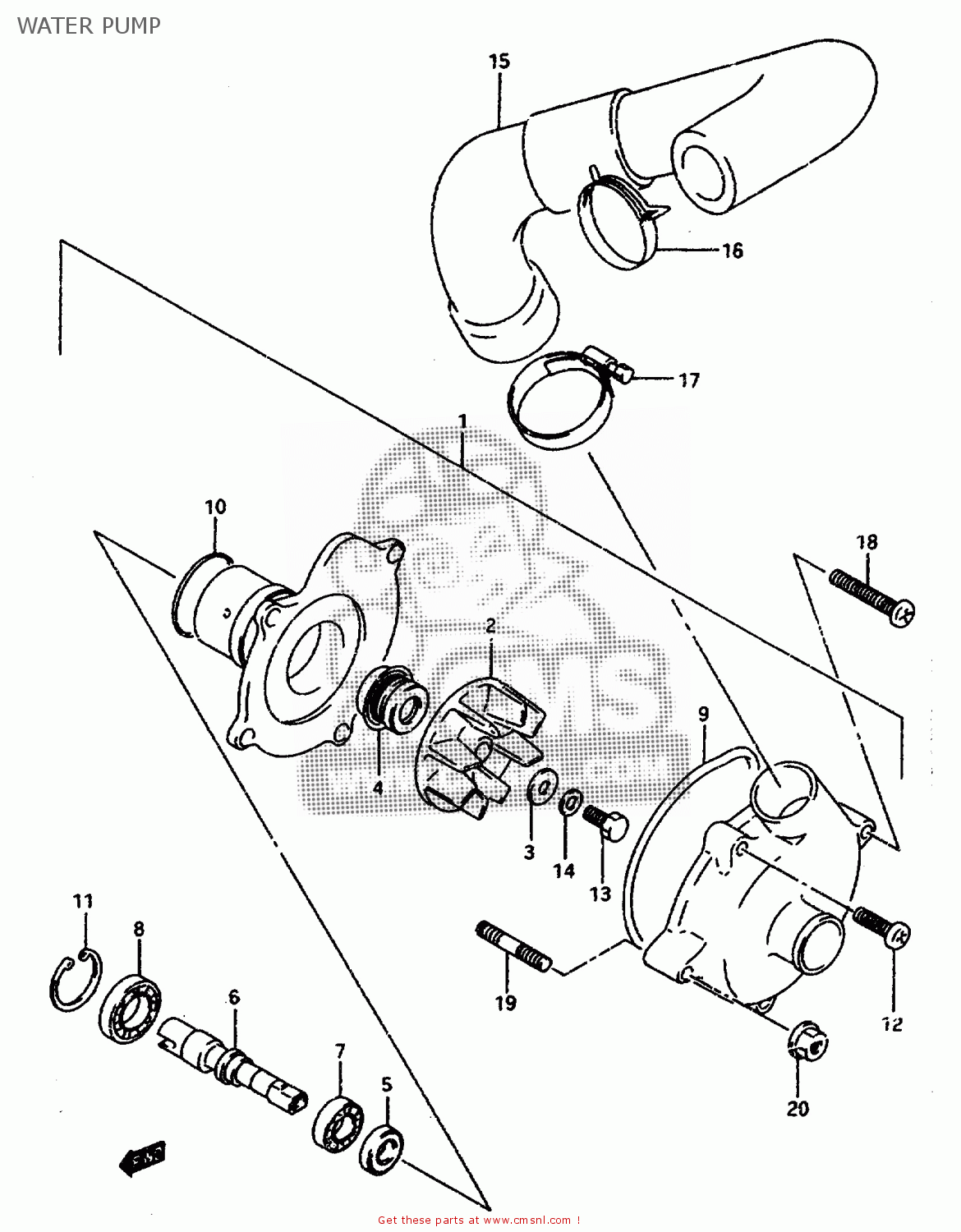

Water pump diagram GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

WATER PUMP GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
WATER PUMP GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
WATER PUMP GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1740017E00
ref: 1-1
MODEL P/R
PUMP ASSEMBLY,WATER
€ 385.50
1-2
1740017E01
ref: 1-2
MODEL S/T/V
PUMP ASSY,WATER
€ 385.50
2
1749117E00
ref: 2
IMPELLER
€ 15.00
3
0916806025
ref: 3
GASKET(6X15X2.2) (NAS)
0916806025
€ 3.00
4
1747046A00
ref: 4
SEAL,MECHANICAL
1747046A00
€ 21.50
5-1
1746138A00
ref: 5-1
MODEL P/R/S
OILSEAL
1746138A00
€ 4.50
5-2
0928310004
ref: 5-2
MODEL T/V
SEAL,OIL(10X21X5)
0928310004
€ 4.50
6-1
1751117E00
ref: 6-1
MODEL S/T/V
SHAFT
€ 86.00
6-2
1751117E01
ref: 6-2
MODEL S/T/V
SHAFT
1751117E01
€ 109.50
7-1
0811369010
ref: 7-1
MODEL P/R
BEARING
0811369010
€ 19.00
7-2
0926210014
ref: 7-2
MODEL S/T/V
BEARING(10X26X8)
0926210014
€ 13.00
8-1
0926215008
ref: 8-1
MODEL P/R
BALL BEARING 15X28X7
€ 17.00
8-2
0926212001
ref: 8-2
MODEL S/T/V
BEARING(12X28X8)
0926212001
€ 15.00
9
1741833400
ref: 9
O RING
1741833400
€ 4.00
10
1743533400
ref: 10
O RING,WATER PUMP HOLDER
1743533400
€ 13.00
11
0833141286
ref: 11
MODEL P/R
CIRCLIP
0833141286
€ 3.50
12-1
0211206163
ref: 12-1
MODEL P/R
SCREW 6X16
0211206163
€ 2.00
12-2
0211206163
ref: 12-2
MODEL S/T/V
SCREW 6X16
0211206163
€ 2.00
13
0910006099
ref: 13
BOLT(6X13)
0910006099
€ 2.00
14
0916406006
ref: 14
WASHER
0916406006
€ 2.50
15-1
1785417E00
ref: 15-1
MODEL P
HOSE,WATER PUMP,OUTLET
1785417E00
€ 24.50
15-2
1785417E01
ref: 15-2
MODEL R/S/T/V
HOSE,WATER PUMP OUTLET
1785417E01
€ 24.50
16
0940126404
ref: 16
CLAMP
€ 3.00
17-1
0940233502
ref: 17-1
MODEL P/R
CLAMP
0940233502
€ 10.50
17-2
0940238511
ref: 17-2
MODEL S/T/V
CLAMP
0940238511
€ 10.50
18-1
0211206357
ref: 18-1
MODEL P/R
SCREW
0211206357
€ 2.50
18-2
0211206353
ref: 18-2
MODEL S/T/V
SCREW
€ 2.50
19
0910806117
ref: 19
MODEL S/T/V
BOLT,STUD
0910806117
€ 3.00
20
0831610063
ref: 20
MODEL S/T/V
NUT
0831610063
€ 2.50
