HANDLEBAR (MODEL S/T/V)

GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

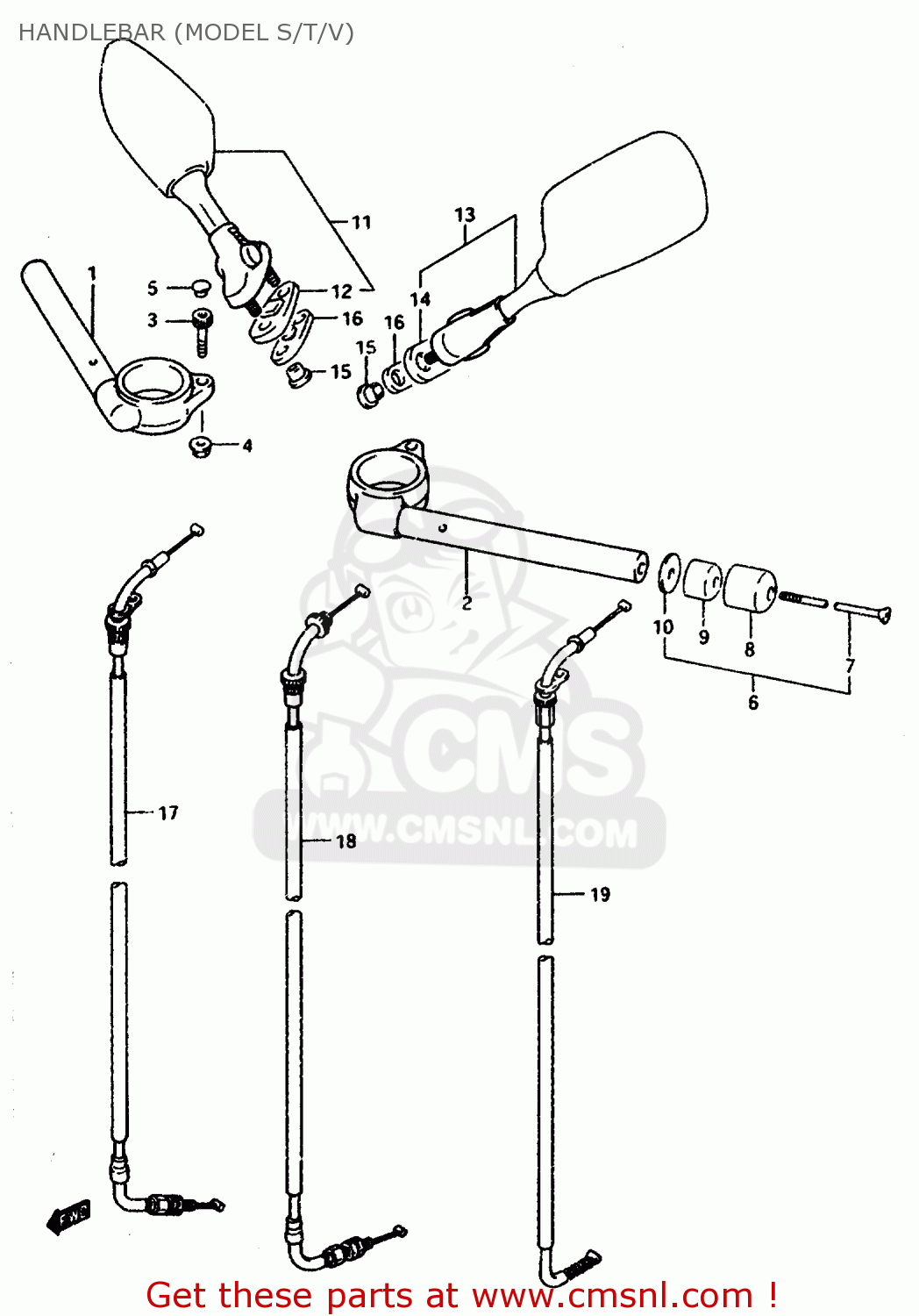

Handlebar (model s/t/v) diagram GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)

HANDLEBAR (MODEL S/T/V) GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
HANDLEBAR (MODEL S/T/V) GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
HANDLEBAR (MODEL S/T/V) GSXR1100W 1996 (T) (E02 E04 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5611146E10
ref: 1-1
MODEL S
HANDLEBAR,RIGHT
€ 199.50
1-2
5611146E11
ref: 1-2
MODEL T/V
HANDLEBAR,R
5611146E11
€ 199.50
2-1
5615146E10
ref: 2-1
MODEL S
HANDLEBAR,LEFT
5615146E10
€ 181.00
2-2
5615146E11
ref: 2-2
MODEL T/V
HANDLEBAR,L
€ 181.00
3
0713010507
ref: 3
BOLT
0713010507
€ 3.50
4
0831931107
ref: 4
NUT
0831931107
€ 3.00
5
0925008014
ref: 5
CAP(OD:12)
0925008014
€ 3.50
6-1
5620001831
ref: 6-1
MODEL S
BALANCER SET,HANDLEBAR
5620001831
€ 55.00
6-2
5620046830
ref: 6-2
MODEL T/V
BALANCER SET,HANDLEBAR
5620046830
€ 23.00
7
0212206603
ref: 7
SCREW
0212206603
€ 3.00
8
5627449310
ref: 8
-56274-20C00(BLACK)
CAP,HANDLE BALANCER
5627449310
€ 141.00
9
5627149310
ref: 9
BALANCER,HANDLEBAR
5627149310
€ 15.50
10
5627534401
ref: 10
SPACER,BALANCER
5627534401
€ 2.50
11
5650019D0084N
ref: 11
MIRROR ASSY,RR VIEW,R
5650019D0084N
€ 102.00
12
5652818D00
ref: 12
GASKET,RR VIEW MIRROR,R (NAS)
5652818D00
€ 11.00
13
5660019D0084N
ref: 13
MIRROR ASSY,RR VIEW,L
€ 109.00
14
5662818D00
ref: 14
GASKET,RR VIEW MIRROR,L (NAS)
5662818D00
€ 10.00
15
5661912C00
ref: 15
NUT,RR VIEW MIRROR
5661912C00
€ 8.00
16
9457641C00
ref: 16
CUSHION,RR VIEW MIRRORR
9457641C00
€ 12.00
17-1
5830046E30
ref: 17-1
CABLE ASSY,THROTTLE NO.1
5830046E30
€ 51.50
17-2
5830046E80
ref: 17-2
E18,E39
CABLE ASSY,THROTTLE NO.1
5830046E80
€ 48.50
18-1
5830046E10
ref: 18-1
CABLE ASSY,THROTTLE NO.2
5830046E10
€ 48.00
18-2
5830046E90
ref: 18-2
E18,E39
CABLE ASSY,THROTTLE NO.2
€ 52.50
19
5841046E00
ref: 19
CABLE,STARTER
5841046E00
€ 32.00
