CYLINDER HEAD COVER

GSXR600 2012 (L2) USA (E03)

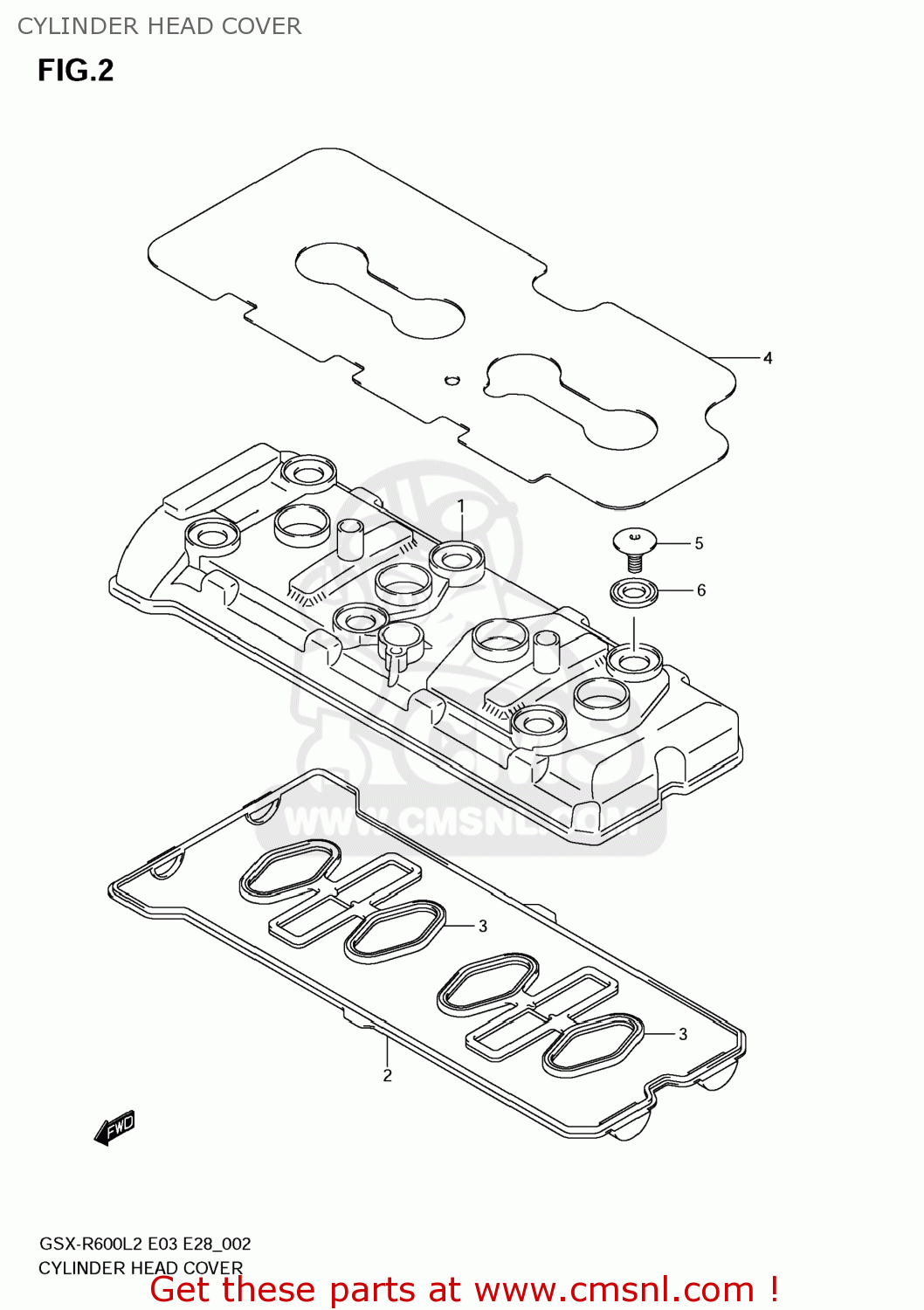

Cylinder head cover diagram GSXR600 2012 (L2) USA (E03)

CYLINDER HEAD COVER GSXR600 2012 (L2) USA (E03)

CYLINDER HEAD COVER GSXR600 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117101H00
ref: 1

COVER,CYLINDER HEAD

€ 335.00

2

1117301H00
ref: 2

GASKET,CYL HEAD COVER NO.1 (NAS)

€ 35.00

3

1117801H00
ref: 3

GASKET,CYL HEAD COVER NO.2 (NAS)

€ 7.50

4

1117937H00
ref: 4

SHIELD,CYLINDER HEAD COVER

€ 19.50

5

0910607021
ref: 5

BOLT(7X17.5)

€ 4.50

6

1119127E00
ref: 6

WASHER,CYL HEAD COVER

€ 4.50
