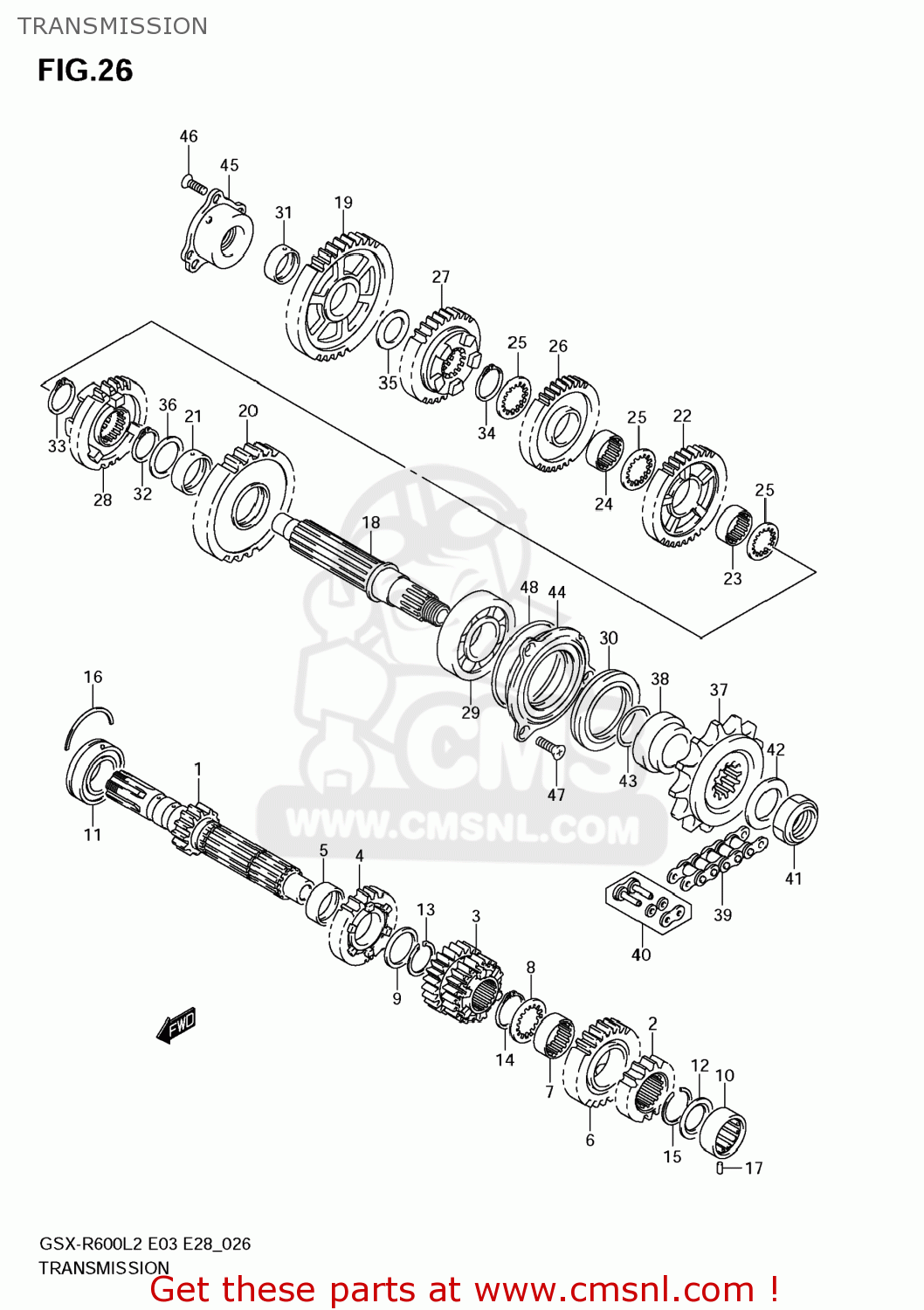

TRANSMISSION

ref

part #

description

quantity

1

2412014J00
ref: 1

SHAFT,COUNTER

€ 214.50

2

2422114J00
ref: 2

GEAR,2ND DRIVE

€ 67.50

3

2423114J00
ref: 3

GEAR,3RD & 4TH DRIVE

€ 125.50

4

2425101H00
ref: 4

GEAR,5TH DRIVE

€ 105.00

5

2425235F00
ref: 5

BUSH,5TH DRIVE GEAR

€ 13.00

6

2426114J00
ref: 6

GEAR,6TH DRIVE

€ 99.00

7

2426235F10
ref: 7

BUSH,6TH DRIVE GEAR

€ 15.00

8

0916727001
ref: 8

WASHER,LOCK

€ 3.50

9

0916027008
ref: 9

WASHER(27X36X1)

€ 3.00

10

0926320087
ref: 10

BEARING(20X34X13.5)

€ 31.50

11

0926225150
ref: 11

BEARING(25X62X17)

€ 38.50

12

0928520006
ref: 12

SEAL,OIL(20X31.2X2.7)

€ 7.00

13

0938027006
ref: 13

CIRCLIP

€ 2.50

14

0938027006
ref: 14

CIRCLIP

€ 2.50

15

0938027004
ref: 15

CIRCLIP

€ 3.50

16

0939062012
ref: 16

C RING

€ 5.00

17

0926106003
ref: 17

PIN(6X10)

€ 1.50

18

2413114J00
ref: 18

SHAFT,DRIVE

€ 193.00

19

2431114J00
ref: 19

GEAR,1ST DRIVEN

€ 99.50

20

2432114J00
ref: 20

GEAR,2ND DRIVEN

€ 99.50

21

2432235F00
ref: 21

BUSH,2ND DRIVEN GEAR

€ 11.50

22

2433114J00
ref: 22

GEAR,3RD DRIVEN

€ 101.00

23

2433246H00
ref: 23

BUSH,3RD DRIVEN GEAR

€ 20.00

24

2433246H00
ref: 24

BUSH,3RD DRIVEN GEAR

€ 20.00

25

2433302F00
ref: 25

WASHER,3RD & 4TH DRIVEN

€ 3.50

26

2434114J00
ref: 26

GEAR,4TH DRIVEN

€ 102.50

27

2435101H01
ref: 27

GEAR,5TH DRIVEN(NT:31)

€ 100.00

28

2436114J00
ref: 28

GEAR,6TH DRIVEN

€ 102.00

29

0926228045
ref: 29

BEARING(28X68X18)

€ 48.00

30

0928342018
ref: 30

SEAL,OIL(42X62X7)

€ 33.00

31

0930022008
ref: 31

BUSH(22X26X9)

€ 10.50

32

0938027006
ref: 32

CIRCLIP

€ 2.50

33

0938027006
ref: 33

CIRCLIP

€ 2.50

34

0938027006
ref: 34

CIRCLIP

€ 2.50

35

0918122223
ref: 35

SHIM(22X34X1)

€ 3.00

36

0916027008
ref: 36

WASHER(27X36X1)

€ 3.00

37

2751020A10
ref: 37

SPROCKET,ENGINE(16T)

€ 38.00

38

2753114J00
ref: 38

SPACER,ENGINE SPROCKET

€ 21.50

39

2760006G40114
ref: 39

CHAIN,DRIVE

€ 162.50

40

2762006G40
ref: 40

JOINT SET,DRIVE CHAIN

€ 11.50

41

0915920004
ref: 41

NUT

€ 12.00

42

0916025009
ref: 42

WASHER(25X41X3)

€ 5.00

43

0928024010
ref: 43

O RING(D:2.4,ID:23.7)

€ 5.50

44

2475114J00
ref: 44

RETAINER,DRIVE SHAFT BEARING,L

€ 61.50

45

2477101810
ref: 45

HOUSING,DRIVE SHAFT SET

€ 88.00

46

0913906159
ref: 46

SCREW(6X20)

€ 2.50

47

0913906159
ref: 47

SCREW(6X20)

€ 2.50

48

0928068010
ref: 48

O RING(D:1.8,ID:67.5)

€ 9.50
