FRONT BRAKE HOSE

GSXR600 2012 (L2) USA (E03)

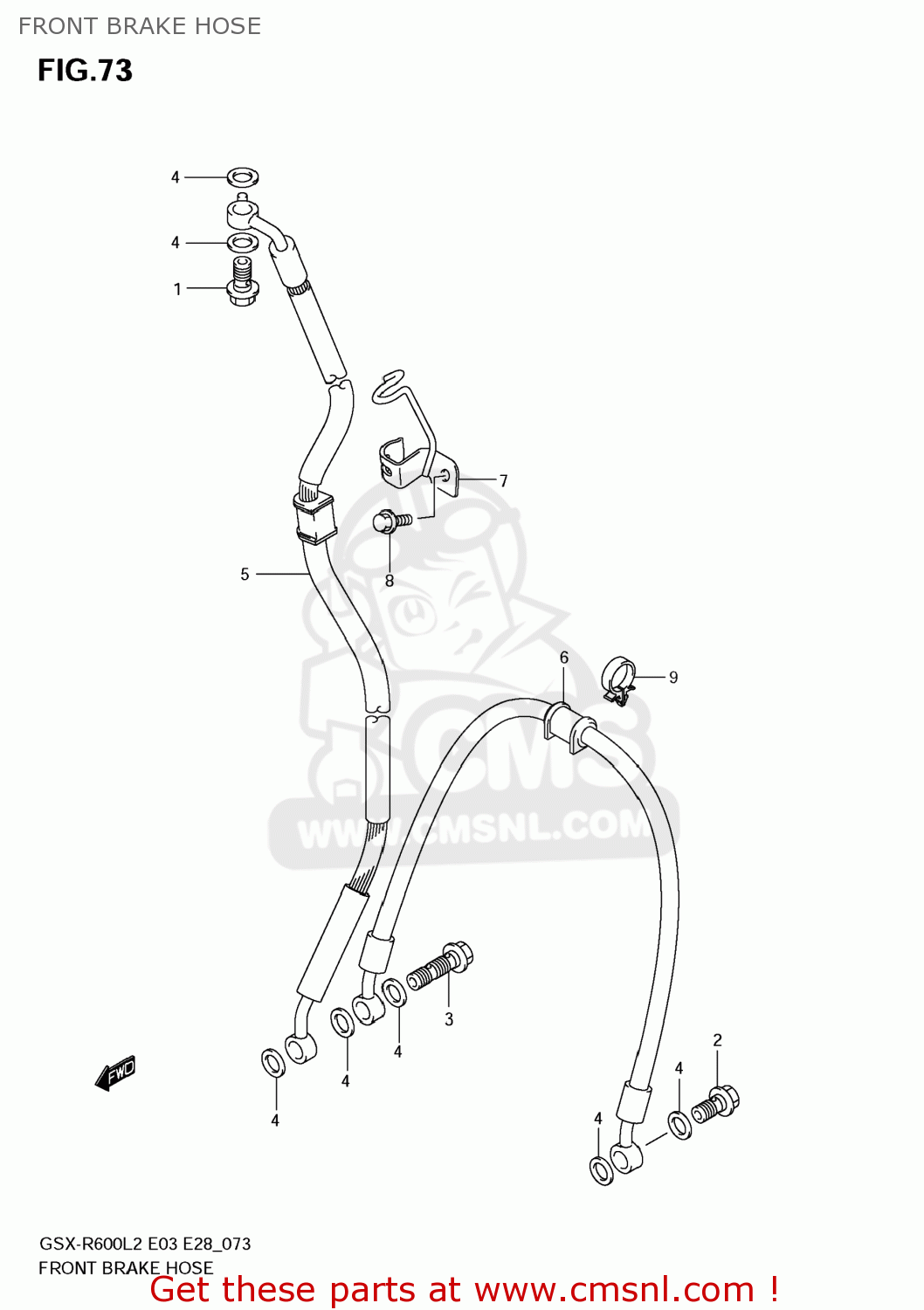

Front brake hose diagram GSXR600 2012 (L2) USA (E03)

FRONT BRAKE HOSE GSXR600 2012 (L2) USA (E03)

FRONT BRAKE HOSE GSXR600 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

0936010062
ref: 1

BOLT UNION

€ 5.00

2

0936010062
ref: 2

BOLT UNION

€ 5.00

3

0936010064
ref: 3

BOLT UNION

€ 5.00

4

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5

5948014J00
ref: 5

HOSE,FR BRAKE NO.1

€ 70.00

6

5924014J00
ref: 6

HOSE,FR BRAKE NO.2

€ 77.50

7

5926047H00
ref: 7

CLAMP,FR BRAKE HOSE NO.1

€ 17.00

8

015470612A
ref: 8

BOLT

€ 2.00

9

0940316412
ref: 9

CLAMP

€ 4.00
