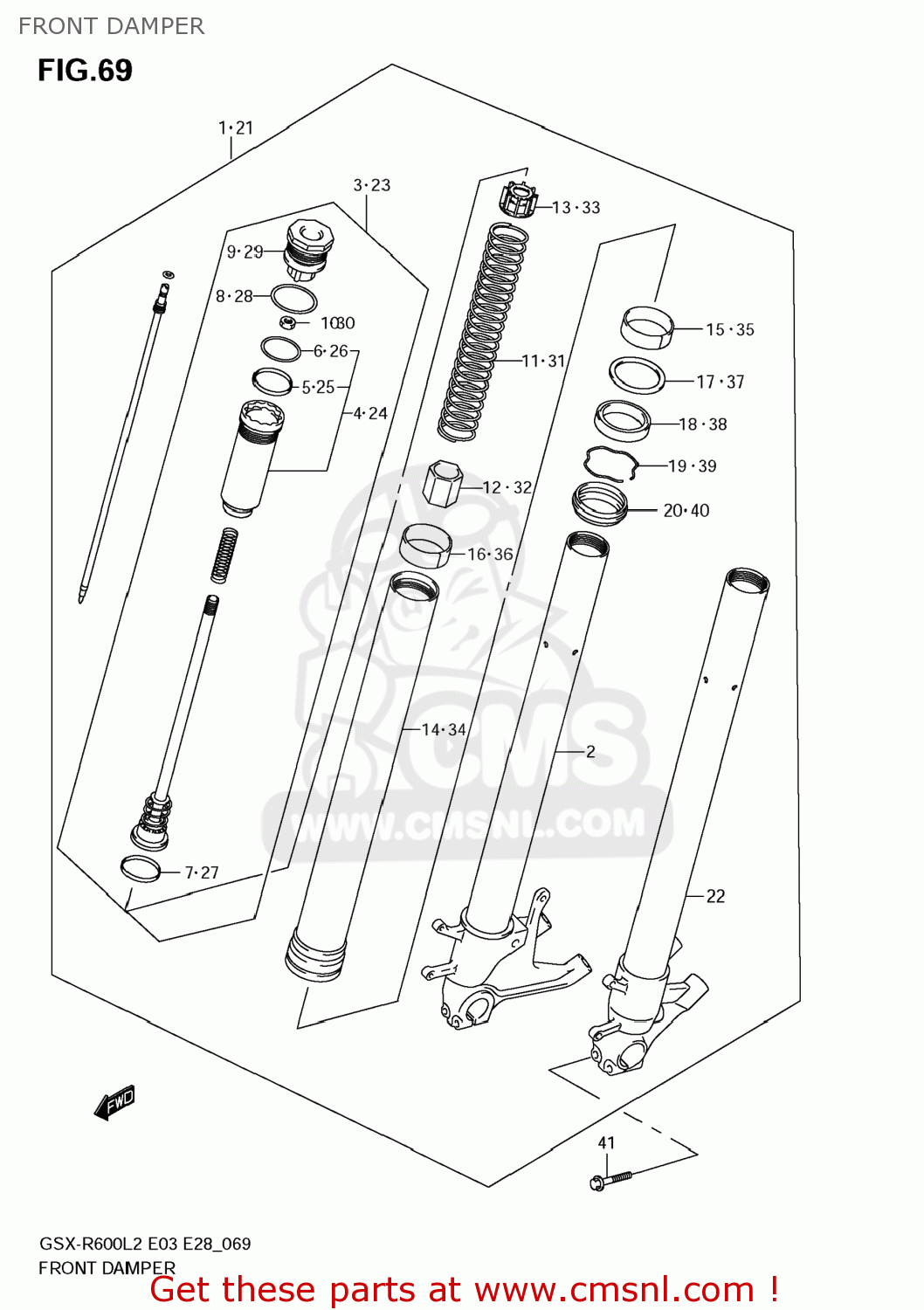

FRONT DAMPER

ref

part #

description

quantity

1

5110314J10
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,201.00

2

5111014J00
ref: 2

TUBE,INNER,R

€ 642.00

3

5211014J00
ref: 3

ROD,PISTON

€ 868.00

4

5117414J00
ref: 4

CASE,ROD GUIDE

€ 95.50

5

5111814J10
ref: 5

PISTON RING

€ 25.00

6

5118714J00
ref: 6

O RING

€ 2.50

7

5111814J00
ref: 7

RING,PISTON

€ 6.50

8

5118701H00
ref: 8

O RING,FORK BOLT

€ 5.50

9

5118914J00
ref: 9

BOLT

€ 127.00

10

5182729G00
ref: 10

NUT

€ 6.50

11

5117114J10
ref: 11

SPRING

€ 72.50

12

5117614J10
ref: 12

COLLAR,SPRING

€ 25.00

13

5117514J00
ref: 13

COLLAR,SPRING

€ 6.00

14

5113114J00
ref: 14

TUBE,OUTER

€ 482.50

15

5115201H10
ref: 15

BUSH,GUIDE

€ 15.00

16

5115214J00
ref: 16

BUSH,SLIDE

€ 12.00

17

5116838B00
ref: 17

SPACER,SEAL

€ 5.00

18

5115301H10
ref: 18

SEAL,OIL

€ 20.00

19

5155638B00
ref: 19

CIRCLIP,FORK OIL SEAL

€ 4.50

20

5117301H00
ref: 20

SEAL,DUST

€ 9.50

21

5110414J10
ref: 21

DAMPER ASSY,FR FORK,L

€ 1,201.00

22

5112014J00
ref: 22

TUBE,INNER,L

€ 665.50

23

5211014J00
ref: 23

ROD,PISTON

€ 868.00

24

5117414J00
ref: 24

CASE,ROD GUIDE

€ 95.50

25

5111814J10
ref: 25

PISTON RING

€ 25.00

26

5118714J00
ref: 26

O RING

€ 2.50

27

5111814J00
ref: 27

RING,PISTON

€ 6.50

28

5118701H00
ref: 28

O RING,FORK BOLT

€ 5.50

29

5118914J00
ref: 29

BOLT

€ 127.00

30

5182729G00
ref: 30

NUT

€ 6.50

31

5117114J10
ref: 31

SPRING

€ 72.50

32

5117614J10
ref: 32

COLLAR,SPRING

€ 25.00

33

5117514J00
ref: 33

COLLAR,SPRING

€ 6.00

34

5113114J00
ref: 34

TUBE,OUTER

€ 482.50

35

5115201H10
ref: 35

BUSH,GUIDE

€ 15.00

36

5115214J00
ref: 36

BUSH,SLIDE

€ 12.00

37

5116838B00
ref: 37

SPACER,SEAL

€ 5.00

38

5115301H10
ref: 38

SEAL,OIL

€ 20.00

39

5155638B00
ref: 39

CIRCLIP,FORK OIL SEAL

€ 4.50

40

5117301H00
ref: 40

SEAL,DUST

€ 9.50

41

5132136F00
ref: 41

BOLT

€ 4.00

all assemblies
