CYLINDER HEAD
GSXR750 2000 (Y) USA (E03)

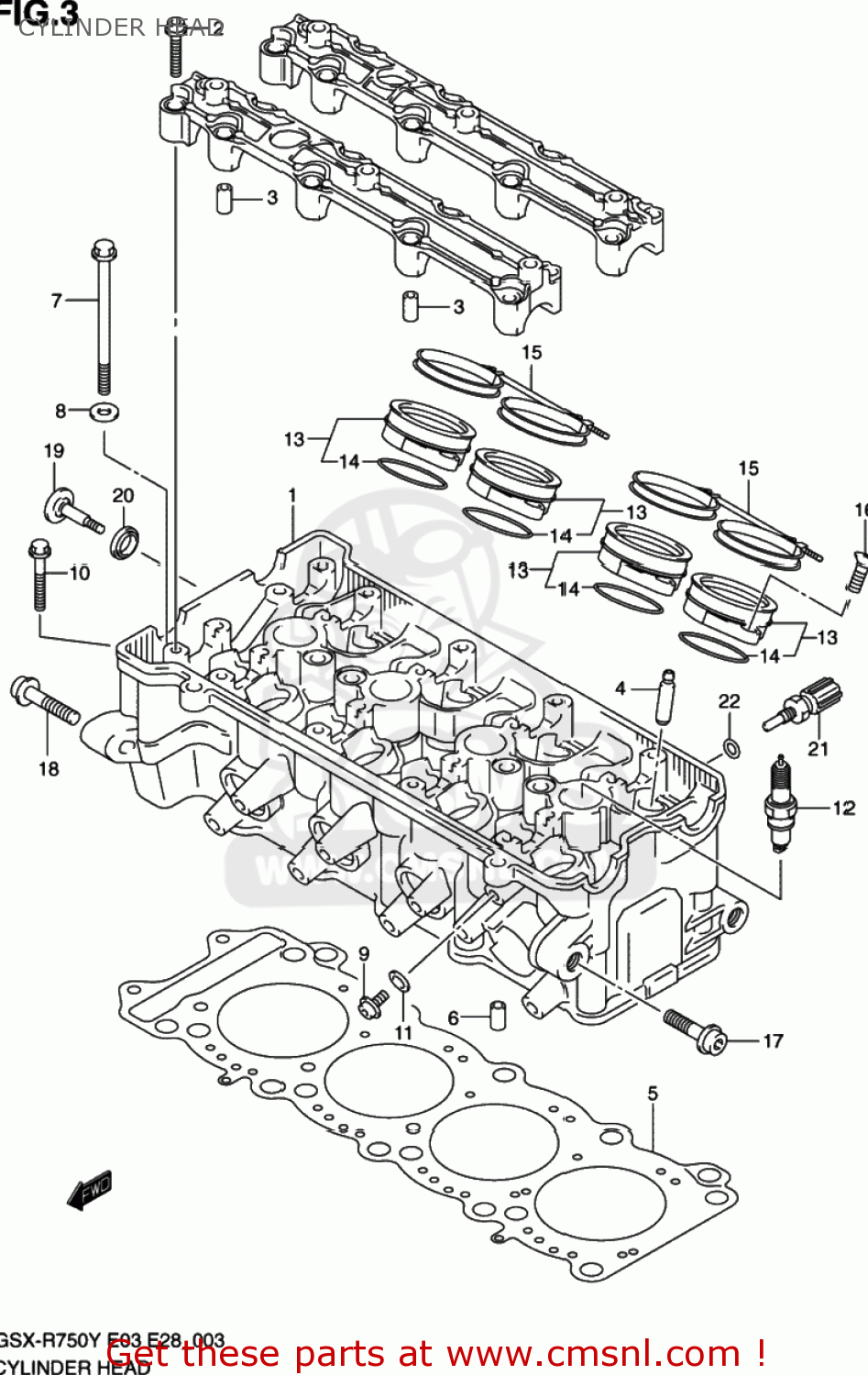

Cylinder head diagram GSXR750 2000 (Y) USA (E03)
CYLINDER HEAD GSXR750 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110035F00
ref: 1
HEAD ASSY,CYLINDER
€ 1,788.50
2
0712006403
ref: 2
07120-0640B
BOLT
€ 3.50
3
0920608007
ref: 3
PIN(6.2X8X16)
€ 2.50
4
1111511D70
ref: 4
GUIDE,VALVE
€ 18.50
5
1114135F00
ref: 5
GASKET,CYLINDER HEAD (NAS)
€ 63.50
6
0421111169
ref: 6
PIN
€ 2.00
7-1
0910310312
ref: 7-1
09103-10330
BOLT 10X105
€ 7.00
7-2
0910310330
ref: 7-2
BOLT(10X105)
€ 7.00
8
0916010082
ref: 8
WASHER(10.5X19X2)
€ 2.00
9
0910306222
ref: 9
BOLT(6X12)
€ 2.00
10
0712006503
ref: 10
07120-0650B
BOLT,CYL.OIL P
€ 2.50
11
0916806023
ref: 11
GASKET(5.8X13X1.2) (NAS)
€ 2.00
12-1
0948200458
ref: 12-1
PLUG,SPARK(NGK CR9E)
€ 8.50
12-2
0948200459
ref: 12-2
PLUG,SPARK(U27ESR-N)
€ 8.50
12-3
0948200456
ref: 12-3
PLUG,SPARK(CR8E)
€ 7.00
12-4
0948200460
ref: 12-4
PLUG,SPARK(CR10E)
€ 8.50
12-5
0948200457
ref: 12-5
PLUG,SPARK(U24ESR-N)
€ 7.00
12-6
0948200461
ref: 12-6
PLUG,SPARK(U31ESR-N)
€ 8.50
13
1310135F00
ref: 13
PIPE ASSY,INTAKE
€ 52.50
14
0928046006
ref: 14
O RING(D:2.4,ID:47X42)
€ 8.00
15-1
1317035F00
ref: 15-1
13170-35F01
CLAMP COMP,INTAKE PIPE
€ 27.00
15-2
1317035F01
ref: 15-2
CLAMP,INTAKE PIPE
€ 27.00
16
0212206163
ref: 16
02122-0616A
SCREW ,6X16
€ 2.00
17
0910610069
ref: 17
BOLT(10X45)
€ 4.50
17
0910610069
ref: 17
BOLT(10X45)
€ 4.50
18
0910610070
ref: 18
BOLT(10X55)
€ 4.50
18
0910610070
ref: 18
BOLT(10X55)
€ 4.50
19
1116133E00
ref: 19
BOLT,CYL HEAD SIDE FACE
€ 8.00
20
1119113E00
ref: 20
WASHER,HEAD COVER
€ 4.00
21-1
1365051G10
ref: 21-1
SENSOR,WATER TEMP
€ 101.50
21-2
1365010G00
ref: 21-2
SENSOR,WATER TEMP
€ 64.50
22
0916812017
ref: 22
GASKET(12X17X1) (NAS)
€ 2.00
