HANDLE LEVER
GSXR750 2000 (Y) USA (E03)

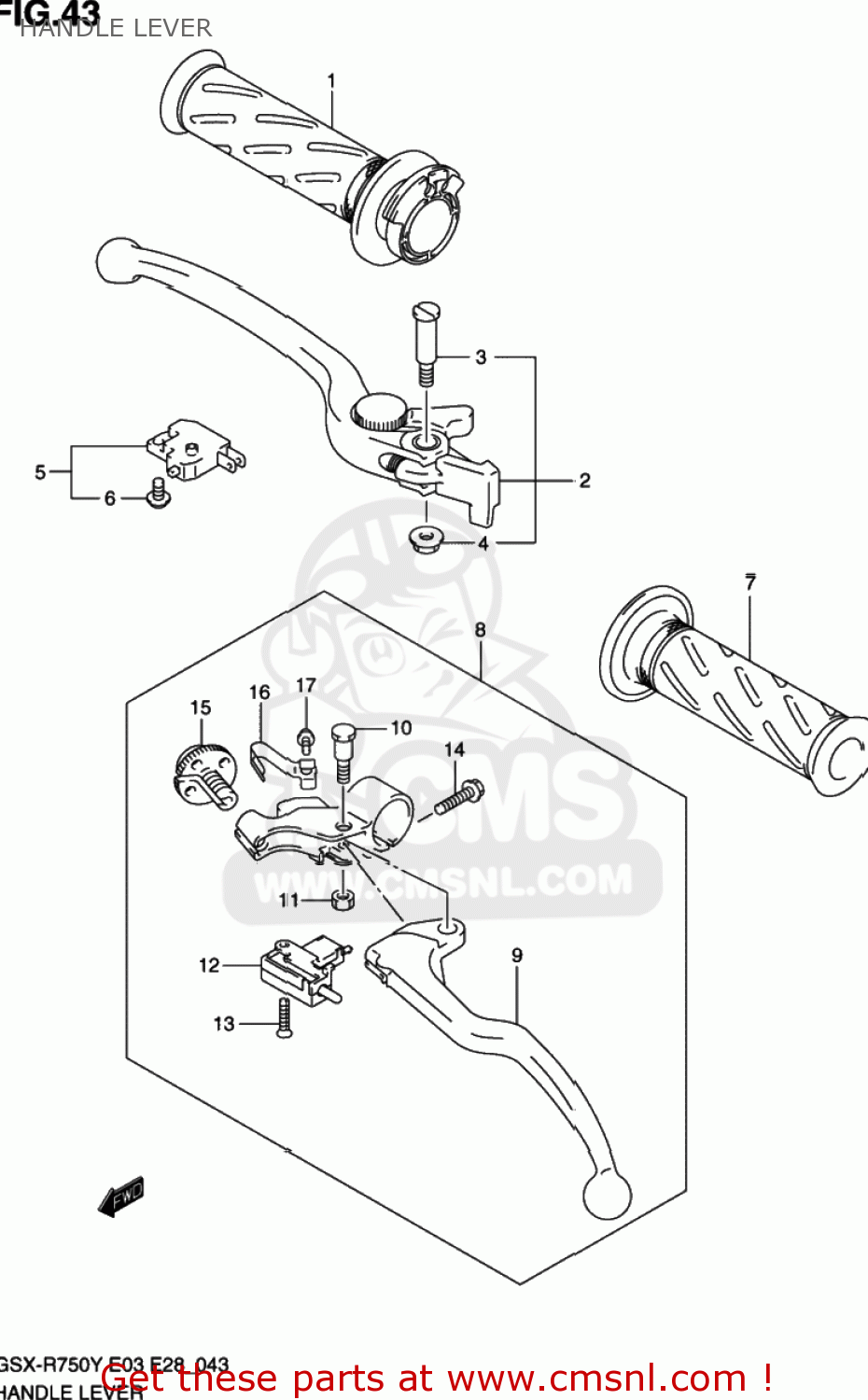

Handle lever diagram GSXR750 2000 (Y) USA (E03)
HANDLE LEVER GSXR750 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711046E01
ref: 1
GRIP,THROTTLE
€ 26.00
2
5730033E01
ref: 2
LEVER ASSY,BRAKE
€ 44.00
3
5743117C00
ref: 3
BOLT,LEVER PIVOT
€ 8.00
4
0831610063
ref: 4
08316-1006B
NUT
€ 2.50
5
5746017C00
ref: 5
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
6
5746517C00
ref: 6
SCREW
€ 1.50
7
5721122D01
ref: 7
57211-22D01-291
GRIP,LEFT
€ 11.50
8-1
5750033E21
ref: 8-1
57500-40F10
LEVER ASSEMBLY,CLUTCH
€ 97.00
8-2
5750040F00
ref: 8-2
57500-40F10
LEVER ASSY,CLU
€ 97.00
9-1
5762133E01
ref: 9-1
57621-40F00
LEVER,CLUTCH
€ 24.00
9-2
5762140F00
ref: 9-2
LEVER,CLUTCH
€ 24.00
10
5743145C01
ref: 10
BOLT,LEVER PIVOT
€ 10.50
11
0831921063
ref: 11
08319-2106B
NUT
€ 2.50
12
5756005A00
ref: 12
SWITCH,CLUTCH
€ 11.00
13
0212203208
ref: 13
02122-0320A
SCREW
€ 2.00
14
0154706203
ref: 14
01547-0620B
SCREW
€ 2.50
15
5764133E20
ref: 15
57641-33E21
NUT,CABLE ADJUSTER
€ 24.00
16
5764433E00
ref: 16
SPRING,ADJUST
€ 6.50
17
5764233E00
ref: 17
SCREW,SPRING
€ 2.50
