REAR WHEEL
GSXR750 2000 (Y) USA (E03)

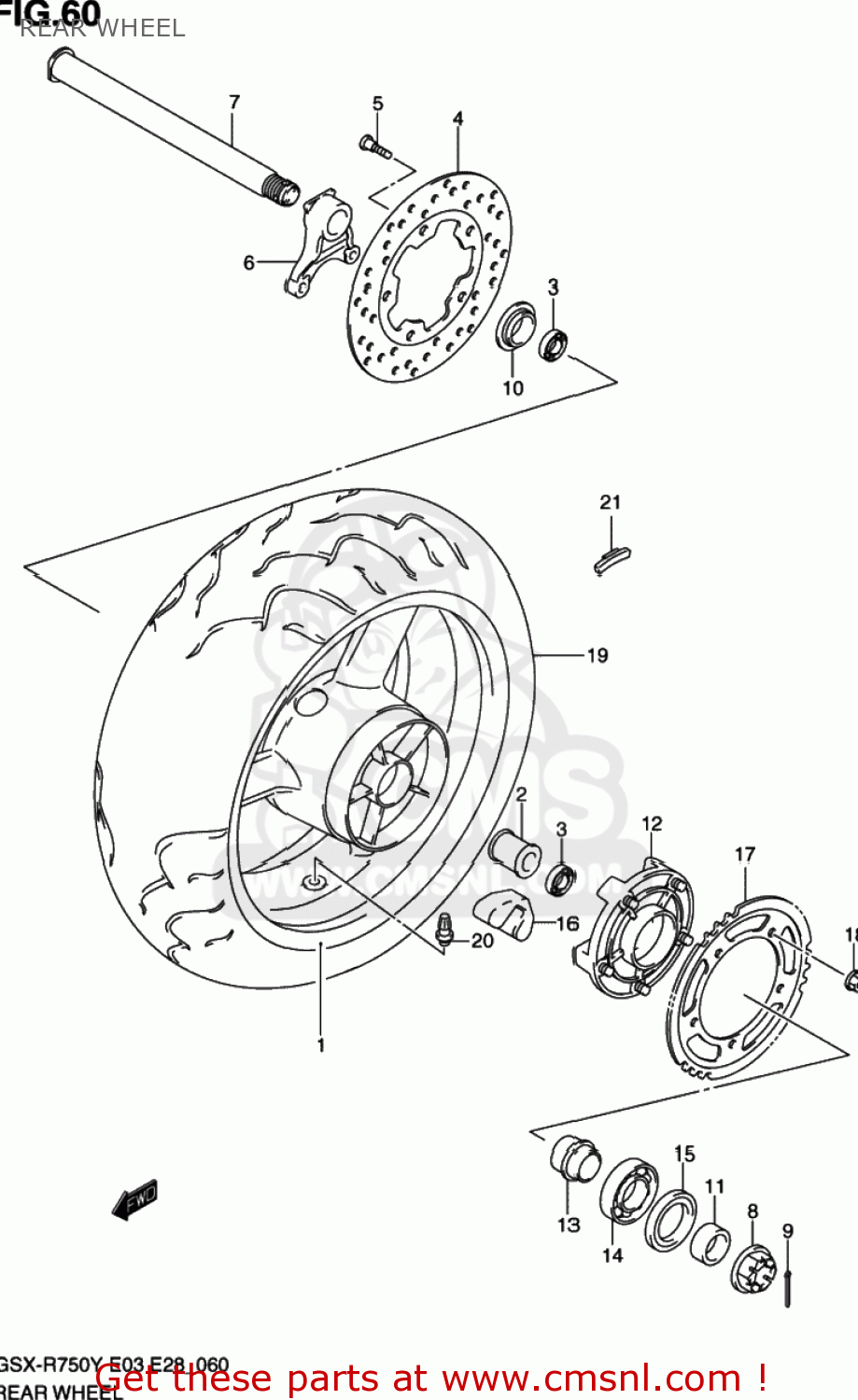

Rear wheel diagram GSXR750 2000 (Y) USA (E03)
REAR WHEEL GSXR750 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411135F00Y6G
ref: 1-1
64111-35F01-Y6G
WHEEL,REAR (17XMT5.50)
€ 625.00
1-1
6411135F00Y6G
ref: 1-1
64111-35F01-Y6G
WHEEL,REAR (17XMT5.50)
€ 625.00
1-2
6411135F0028W
ref: 1-2
64111-35F01-28W
WHEEL,REAR (17XMT5.50)
€ 598.00
1-2
6411135F0028W
ref: 1-2
64111-35F01-28W
WHEEL,REAR (17XMT5.50)
€ 598.00
1-2
6411135F0028W
ref: 1-2
64111-35F01-28W
WHEEL,REAR (17XMT5.50)
€ 598.00
1-2
6411135F0028W
ref: 1-2
64111-35F01-28W
WHEEL,REAR (17XMT5.50)
€ 598.00
1-3
6411135F00019
ref: 1-3
64111-35F01-019
WHEEL,REAR,17X
€ 850.00
1-3
6411135F00019
ref: 1-3
64111-35F01-019
WHEEL,REAR,17X
€ 850.00
1-3
6411135F00019
ref: 1-3
64111-35F01-019
WHEEL,REAR,17X
€ 850.00
2
6473135F00
ref: 2
64731-35F10
SPACER,REAR HUB BEARING
€ 40.00
3
0926228043
ref: 3
BEARING(28X52X12)
€ 22.50
4-1
6921133E00
ref: 4-1
DISC,RR BRAKE
€ 160.00
4-2
6921133E10
ref: 4-2
DISC,RR BRAKE
€ 200.50
5-1
0910608125
ref: 5-1
09106-08148
BOLT 8X33
€ 6.00
5-2
0910608148
ref: 5-2
BOLT(8X33)
€ 6.00
6
6972135F00
ref: 6
BRACKET,RR CALIPER
€ 82.00
7
6471133E10
ref: 7
AXLE,RR
€ 129.00
8
0914125001
ref: 8
NUT
€ 25.00
9
0411140408
ref: 9
04111-4040A
PIN, COTTER
€ 2.00
10
6474035F00
ref: 10
SPACER,RR AXLE,R
€ 34.50
11
6475135F00
ref: 11
SPACER,RR AXLE,L
€ 25.50
12-1
6461035F00
ref: 12-1
64610-35F10
DRUM COMP,REAR SPROCKET
€ 219.00
12-2
6461035F10
ref: 12-2
DRUM, REAR SPROCKET
€ 219.00
13
6473335F00
ref: 13
RETAINER,RR SPROCKET DRUM
€ 21.50
14
0926232007
ref: 14
09262-32022
BEARING
€ 49.00
15
0928539001
ref: 15
SEAL,OIL(39X65X7)
€ 9.00
16
6465135F00
ref: 16
ABSORBER,RR HUB SHOCK
€ 10.00
17-1
6451135F00
ref: 17-1
64511-35F10
SPROCKET,REAR (42-525)
€ 83.00
17-2
6451135F10
ref: 17-2
SPROCKET,RR(42T-525)
€ 83.00
18
0831931107
ref: 18
NUT
€ 3.00
19
6511035F10
ref: 19
TIRE,RR(180/55 ZR17) (73W)
€ 0.00
19
6511035F10
ref: 19
TIRE,RR(180/55 ZR17) (73W)
€ 0.00
20
4313024A00
ref: 20
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
21-1
4323282000
ref: 21-1
43222-73H10
WEIGHT,WHEEL BALANCE 10G
€ 4.00
21-2
4323482000
ref: 21-2
43224-73H10
WEIGHT,WHEEL BALANCE 20G
€ 5.00
21-3
4323682000
ref: 21-3
43226-73H10
WEIGHT,BAL. 30
€ 6.00
