GSXR750 2000 (Y) USA (E03)

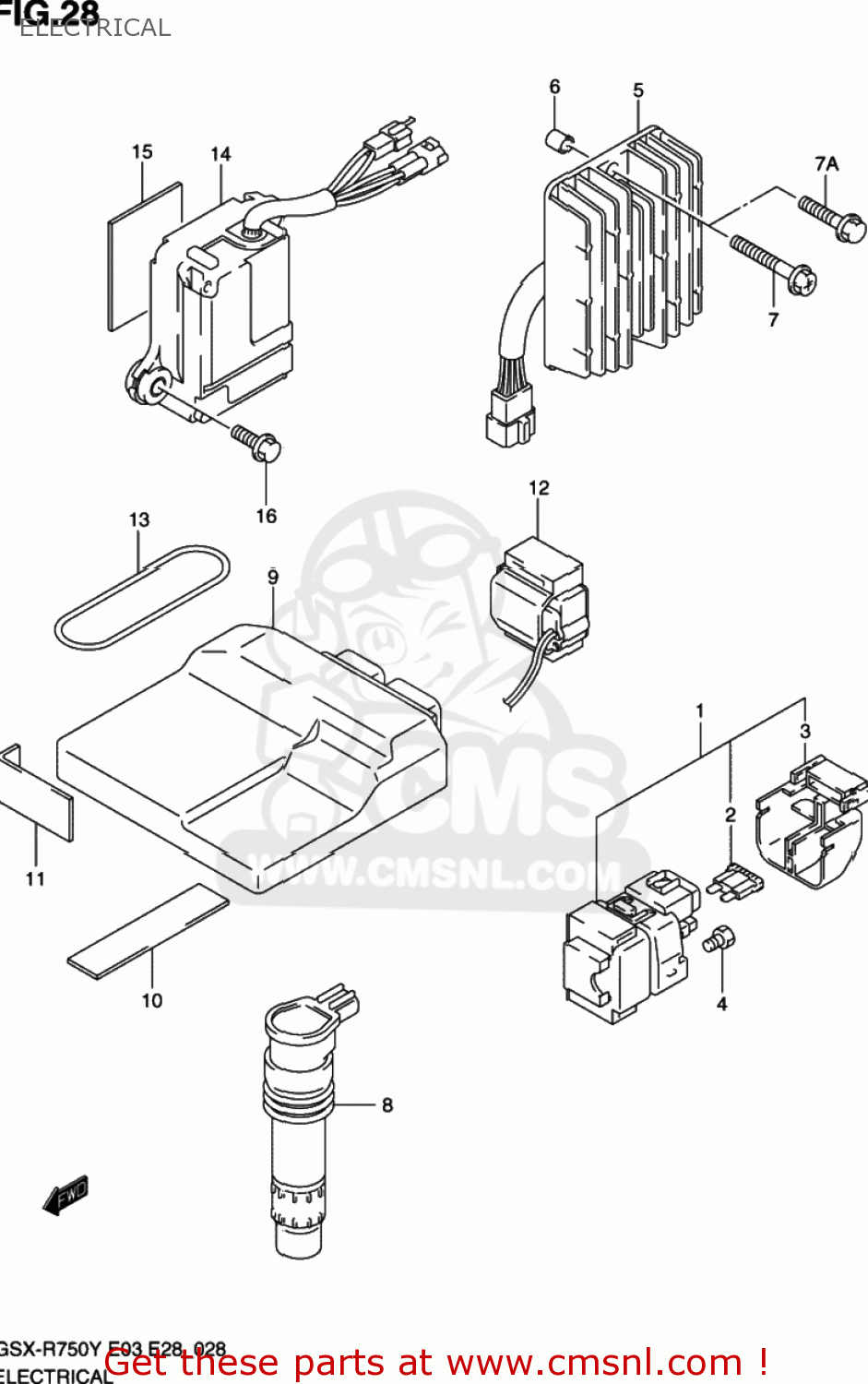

Electrical diagram GSXR750 2000 (Y) USA (E03)
ELECTRICAL GSXR750 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180035F00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 113.50
2
0948130101
ref: 2
FUSE(30A)
€ 6.00
3
3186126E00
ref: 3
COVER,STARTER RELAY
€ 3.50
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5-1
3280033E10
ref: 5-1
32800-33E21
RECTIFIER ASSEMBLY
€ 371.00
5-2
3280033E20
ref: 5-2
32800-33E21
RECTIFIER ASY
€ 371.00
6
0918006283
ref: 6
SPACER(6.5X10X7)
€ 2.00
7
0216206353
ref: 7
SCREW
€ 2.00
7A
0155006203
ref: 7A
01550-0620A
BOLT
€ 2.50
8-1
3341035F00
ref: 8-1
COIL ASSY,IGNITION
€ 146.00
8-2
3341035F10
ref: 8-2
COIL ASSY,IGNITION
€ 122.50
9-1
3292035F30
ref: 9-1
CONTROL UNIT,FI
€ 0.00
9-2
3292035FD0
ref: 9-2
CONTROL UNIT,FI
€ 0.00
10
3365207D00
ref: 10
PROTECTOR(80X80X2)
€ 4.50
10
3365207D00
ref: 10
PROTECTOR(80X80X2)
€ 4.50
11
3365137000
ref: 11
PROTECTOR(170X95X3.0)
€ 5.00
11
3365137000
ref: 11
PROTECTOR(170X95X3.0)
€ 5.00
12
3396002F00
ref: 12
SENSOR ASSY,FUEL CUT
€ 85.00
13
0928070004
ref: 13
O RING(D:3.53,ID:69.44)
€ 3.50
14
3397019D10
ref: 14
ACTUATOR ASSY
€ 546.00
15
3397235F00
ref: 15
PROTECTOR,ACTUATOR
€ 2.50
15
3397235F00
ref: 15
PROTECTOR,ACTUATOR
€ 2.50
16
0911606025
ref: 16
BOLT(6X25)
€ 2.50
