WIRING HARNESS (MODEL Y/K1)
GSXR750 2000 (Y) USA (E03)

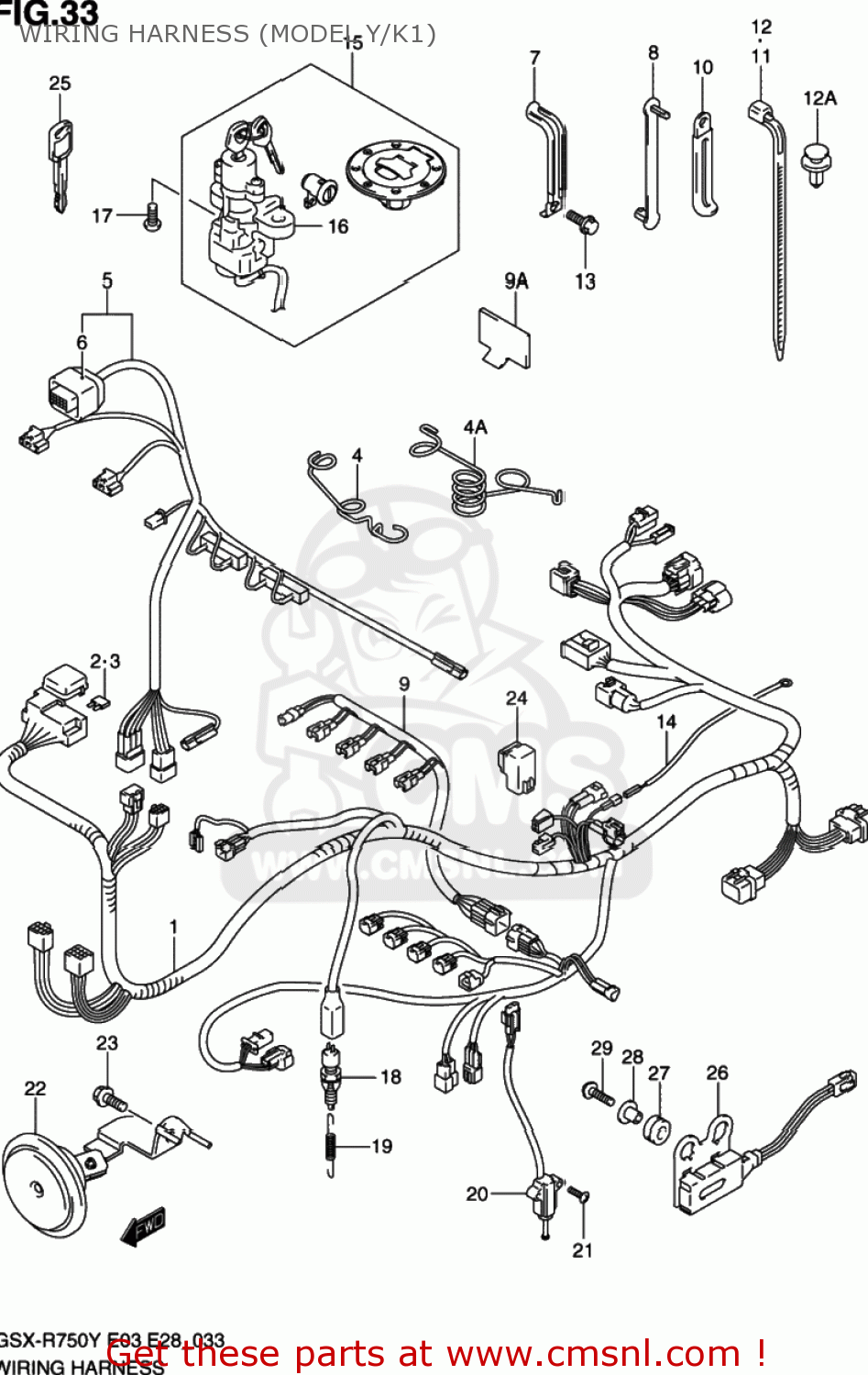

Wiring harness (model y/k1) diagram GSXR750 2000 (Y) USA (E03)
WIRING HARNESS (MODEL Y/K1) GSXR750 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661035F10
ref: 1-1
HARNESS,WIRING NO.1
€ 749.50
1-2
3661035F20
ref: 1-2
HARNESS,WIRING NO.1
€ 749.50
1-2
3661035F20
ref: 1-2
HARNESS,WIRING NO.1
€ 749.50
1-3
3661035F30
ref: 1-3
HARNESS,WIRING NO.1
€ 0.00
1-3
3661035F30
ref: 1-3
HARNESS,WIRING NO.1
€ 0.00
2
0948110501
ref: 2
FUSE(10A)
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
€ 1.00
4
3661935F00
ref: 4
GUIDE,WIRING HARNESS
€ 9.00
4A
3661940F00
ref: 4A
GUIDE,WIRING HARNESS
€ 12.00
5-1
3662035F10
ref: 5-1
HARNESS,WIRING NO.2
€ 147.00
5-2
3662035F20
ref: 5-2
HARNESS,WIRING NO.2
€ 154.50
5-2
3662035F20
ref: 5-2
HARNESS,WIRING NO.2
€ 154.50
5-3
3662035F30
ref: 5-3
HARNESS,WIRING NO.2
€ 131.50
5-3
3662035F30
ref: 5-3
HARNESS,WIRING NO.2
€ 131.50
6
3661835F00
ref: 6
COVER,SPEEDOMETER COUPLER
€ 6.50
7
3665135F00
ref: 7
36651-35F01
CLAMP,WIRING HARNESS
€ 3.50
8
3665148E00
ref: 8
CLAMP(L:63)
€ 2.50
9A
3692035F00
ref: 9A
PROTECTOR,WIRING HARNESS
€ 2.50
9-1
3685935F00
ref: 9-1
WIRE,INJECTOR LEAD
€ 145.00
9-2
3685935F20
ref: 9-2
WIRE, INJECTOR LEAD F.NO.12104098~
€ 0.00
10-1
0940406432
ref: 10-1
CLAMP(L:65)
€ 2.50
10-2
0940408205
ref: 10-2
CLAMP(L:45 T:0.6)
€ 3.00
10-3
0940408207
ref: 10-3
CLAMP(L:80)
€ 3.00
11-1
0940714403
ref: 11-1
CLAMP(L:125)
€ 2.50
11-2
0940718402
ref: 11-2
CLAMP(L:165)
€ 2.50
11-3
0940725401
ref: 11-3
CLAMP(L:235)
€ 4.00
12A
0940908327
ref: 12A
CLIP
€ 3.00
12-1
0940711402
ref: 12-1
CLAMP(L:90)
€ 2.50
12-2
0940717401
ref: 12-2
09407-17402
CLAMP
€ 5.00
13
0155005123
ref: 13
01550-0512B
BOLT
€ 2.50
14
3685135F00
ref: 14
WIRE,OIL PRESSURE SWITCH LEAD
€ 15.00
15-1
3700035810
ref: 15-1
LOCK SET
€ 284.00
15-2
3700035840
ref: 15-2
LOCK SET
€ 527.00
15-3
3700035820
ref: 15-3
LOCK SET
€ 0.00
15-4
3700035850
ref: 15-4
LOCK SET
€ 0.00
16-1
3710035F00
ref: 16-1
LOCK ASSY,STEERING
€ 144.50
16-2
3710035F20
ref: 16-2
LOCK ASSY,STEERING
€ 159.50
17
0913908016
ref: 17
BOLT(8X20)
€ 3.50
18
3774024A00
ref: 18
SWITCH ASSY,STOP LAMP
€ 20.50
19
0944306042
ref: 19
SPRING
€ 3.00
20
3784035F00
ref: 20
SWITCH ASSY,SIDE STAND
€ 63.50
21
0155006203
ref: 21
01550-0620A
BOLT
€ 2.50
22-1
3850035F00
ref: 22-1
38500-35F10
HORN ASSEMBLY
€ 54.00
22-2
3850035F10
ref: 22-2
HORN ASSY
€ 54.00
23
0155006253
ref: 23
01550-0625A
BOLT
€ 2.50
24
3874024X50
ref: 24
RELAY ASSY
€ 37.50
25
3714633E00
ref: 25
KEY,BLANK
€ 13.00
26
3651035F00
ref: 26
RESISTOR ASSY
€ 80.50
27
0932010015
ref: 27
CUSHION
€ 2.50
28
0918006319
ref: 28
SPACER(6.5X10X11.6)
€ 3.50
29
0913606126
ref: 29
SCREW(6X25)
€ 2.50
