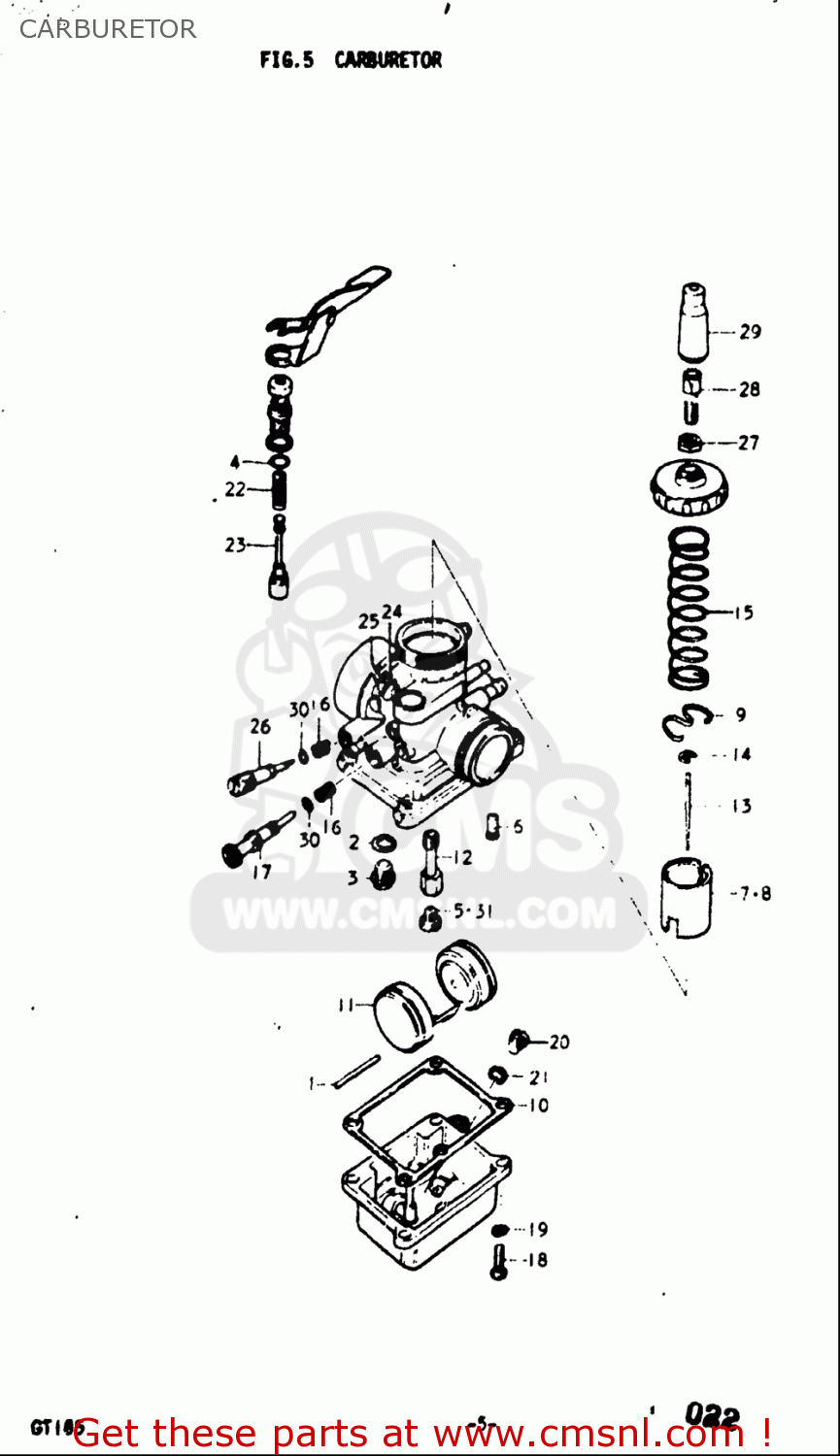

CARBURETOR

ref

part #

description

quantity

1-2

1325401010
ref: 1-2

PIN,FLOAT

€ 3.00

2

1339201010
ref: 2

GASKET,NEEDLE VALVE (NAS)

€ 2.50

3

1337036210
ref: 3

VALVE ASSY,NEEDLE

€ 42.50

4

0928008014
ref: 4

O RING(D:1.5,ID:8.5)

€ 3.00

5-2

0949172012
ref: 5-2

JET,MAIN(72.5)

€ 7.00

6

0949220008
ref: 6

JET,PILOT 20

€ 10.00

9

1358136600
ref: 9

STOPPER,NEEDLE CLIP

€ 4.00

10

1325136110
ref: 10

GASKET,FLOAT CAHMBER (NAS)

€ 7.00

11

1325236110
ref: 11

FLOAT

€ 24.50

14

1339410010
ref: 14

CLIP

€ 4.50

15

1357336110
ref: 15

SPRING,THROTTLE VALVE

€ 3.00

16

1326835010
ref: 16

SPRING

€ 3.00

17

1326736600
ref: 17

SCREW,THROTTLE STOP

€ 8.50

18

0211204163
ref: 18

SCREW 4X16

€ 1.00

19

0832101043
ref: 19

WASHER,LOCK

€ 2.00

20

1324705010
ref: 20

PLUG

€ 6.00

21

1324905010
ref: 21

GASKET,DRAIN,PLUG (NAS)

€ 1.50

22

1341718630
ref: 22

SPRING

€ 6.00

23

1341118010
ref: 23

PLUNGER,STARTER

€ 12.50

24

1366331010
ref: 24

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

25

1366418654
ref: 25

BOLT

€ 10.50

26-1

1326915010
ref: 26-1

SCREW,PILOT AIR

€ 10.50

26-2

1326915011
ref: 26-2

SCREW,PILOT AIR ADJUSTING

€ 12.50

27

1366116600
ref: 27

NUT

€ 5.00

28

1357748110
ref: 28

ADJUSTER,CABLE

€ 8.00

29

1368133010
ref: 29

CAP,CABLE ADJUSTER

€ 8.00

30

1329533010
ref: 30

O RING

€ 4.50

31-1

0949170010
ref: 31-1

JET,MAIN(70)

€ 9.00

31-2

0949170012
ref: 31-2

JET,PILOT AIR(70)

€ 7.50

31-3

0949175009
ref: 31-3

JET,MAIN(75)

€ 7.00

31-5

0949177005
ref: 31-5

JET,MAIN(77.5)

€ 16.50

31-7

0949180008
ref: 31-7

JET,MAIN

€ 9.00

31-8

0949185008
ref: 31-8

JET,MAIN(85)

€ 8.50

31-9

0949190007
ref: 31-9

JET,MAIN(90)

€ 10.50
