OIL PUMP

GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

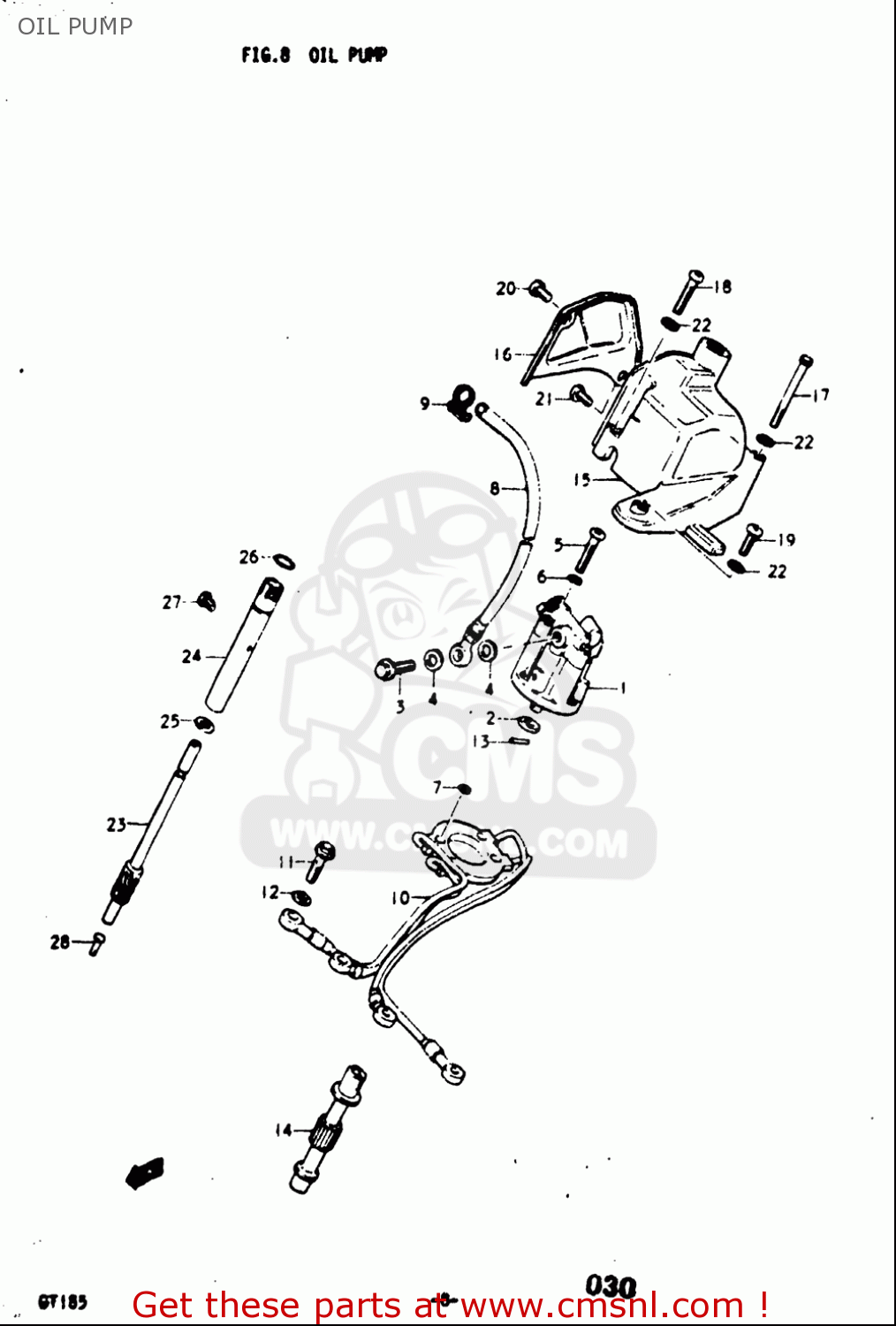

Oil pump diagram GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

OIL PUMP GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
OIL PUMP GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
OIL PUMP GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
0928508002
ref: 2
SEAL,OIL(8X16X4)
0928508002
€ 16.50
3
0936006003
ref: 3
UNION BOLT
0936006003
€ 5.00
4
0916806004
ref: 4
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
5
0211205257
ref: 5
SCREW
0211205257
€ 2.00
6
0832101057
ref: 6
WASHER,LOCK
0832101057
€ 2.00
7
0928003002
ref: 7
O RING(D:1.9,ID:3.8)
0928003002
€ 2.00
8
1681007520
ref: 8
HOSE,INLET
1681007520
€ 17.50
9
0940010302
ref: 9
CLAMP
0940010302
€ 9.50
11
0936006003
ref: 11
UNION BOLT
0936006003
€ 5.00
12
0916806004
ref: 12
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
13
0926103010
ref: 13
PIN(3X13.8)
0926103010
€ 3.00
17
0110705458
ref: 17
BOLT 5X45
€ 2.00
18
0211205257
ref: 18
SCREW
0211205257
€ 2.00
19
0211205167
ref: 19
SCREW
0211205167
€ 2.50
20
0211205087
ref: 20
SCREW
0211205087
€ 2.00
21
0311205123
ref: 21
SCREW
0311205123
€ 1.50
22
0832201057
ref: 22
WASHER
0832201057
€ 2.50
23
2643125000
ref: 23
GEAR,TACHOMETER DRIVEN
2643125000
€ 16.00
24
2644125000
ref: 24
SLEEVE, DRIVEN GEAR
2644125000
€ 11.50
25
0916008003
ref: 25
WASHER(8X13.7X1)
0916008003
€ 2.00
26
0928010001
ref: 26
O RING(D:1.3,ID:9.6)
0928010001
€ 2.00
27
0913506002
ref: 27
BOLT
0913506002
€ 2.50
