GEAR SHIFTING

GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

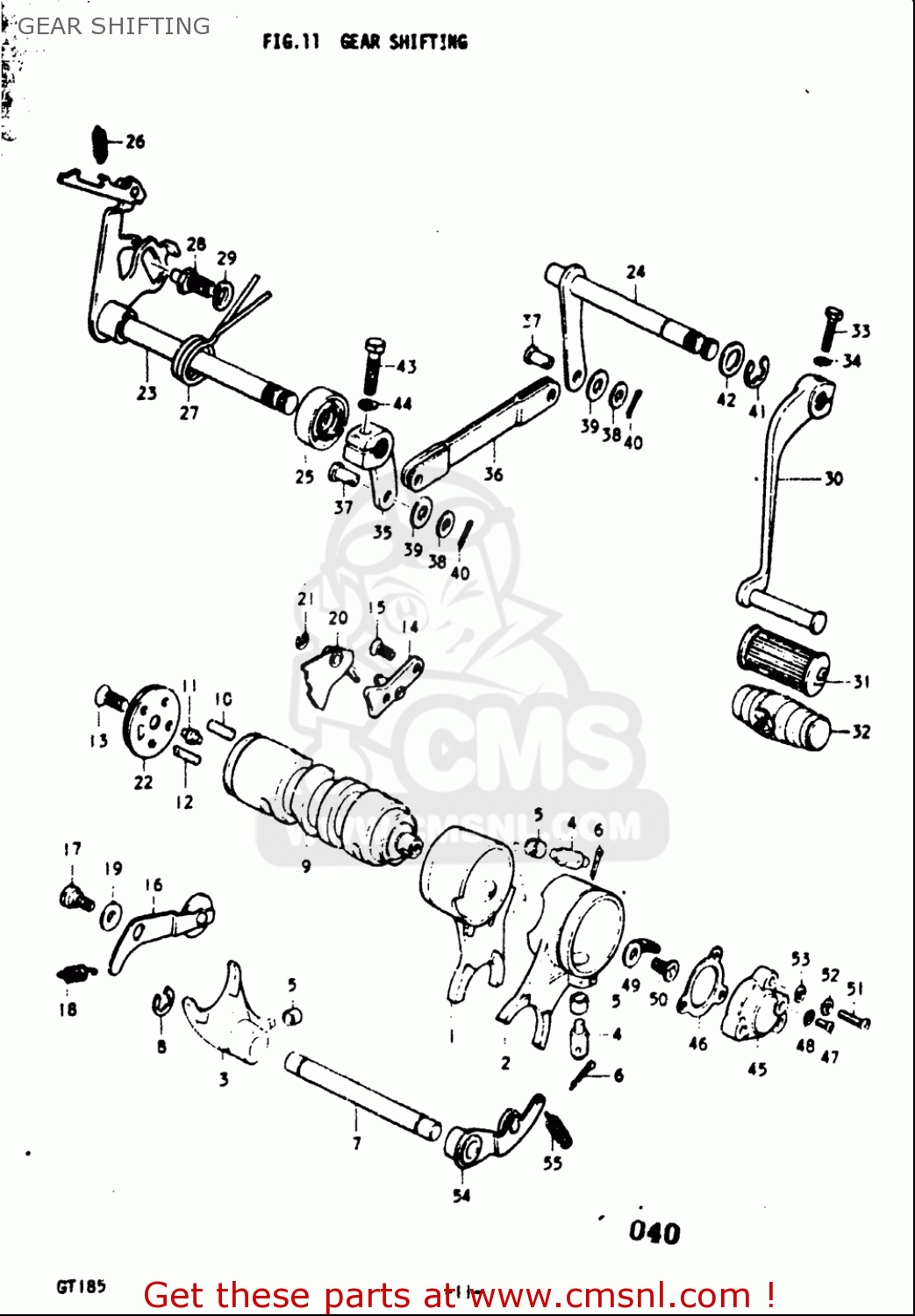

Gear shifting diagram GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

GEAR SHIFTING GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
GEAR SHIFTING GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
GEAR SHIFTING GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2521128002
ref: 1
FORK,GEAR SHIFT NO.1
€ 58.50
2
2522128002
ref: 2
FORK,GEAR SHIFT NO.2
€ 25.00
4-2
0920910002
ref: 4-2
PIN
0920910002
€ 8.50
5
0918006086
ref: 5
SPACER(6X9.8X6)
0918006086
€ 2.50
6
041112520A
ref: 6
PIN
041112520A
€ 2.00
8
083321108A
ref: 8
E RING
083321108A
€ 2.00
10-1
0926104009
ref: 10-1
PIN(4X15.8)
0926104009
€ 1.50
10-2
0926104003
ref: 10-2
PIN(4X20)
0926104003
€ 2.00
11-2
0920904012
ref: 11-2
PIN
0920904012
€ 2.50
12
0920904013
ref: 12
PIN
0920904013
€ 5.00
13
021220620A
ref: 13
SCREW
021220620A
€ 2.00
15
0212206167
ref: 15
SCREW
0212206167
€ 2.00
17
0911106003
ref: 17
BOLT(6X16.1)
0911106003
€ 1.50
18
0944307014
ref: 18
SPRING
0944307014
€ 2.00
19-1
0916006022
ref: 19-1
WASHER(6.5X16X2.3)
0916006022
€ 1.50
19-2
0916006084
ref: 19-2
WASHER(6.5X18X1.6)
0916006084
€ 2.00
21
083321105A
ref: 21
E RING
083321105A
€ 1.50
25
0928512006
ref: 25
SEAL,OIL (12X22X9)
0928512006
€ 7.00
26
0944307013
ref: 26
SPRING
0944307013
€ 2.50
29
0832101107
ref: 29
WASHER,LOCK
0832101107
€ 2.00
30-2
2560036101
ref: 30-2
LEVER ASSEMBLY,GEAR SHIFTING
2560036101
€ 40.50
31
2565216500
ref: 31
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
32
2565216500
ref: 32
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
33
0150006207
ref: 33
BOLT
0150006207
€ 2.00
34
0832101067
ref: 34
WASHER,LOCK
0832101067
€ 2.50
36
2552536000
ref: 36
LEVER,GEAR SHIFT LINK
2552536000
€ 10.50
37
0920008025
ref: 37
PIN
0920008025
€ 2.50
38
0918108139
ref: 38
SHIM(8.8X14X1)
0918108139
€ 1.50
40
0411120108
ref: 40
PIN 20X10
0411120108
€ 1.50
41
0833211106
ref: 41
E RING
0833211106
€ 1.50
42
0916012011
ref: 42
WASHER(12.5X20X1)
0916012011
€ 1.50
43
0150006207
ref: 43
BOLT
0150006207
€ 2.00
44
0832101067
ref: 44
WASHER,LOCK
0832101067
€ 2.50
45
3772105101
ref: 45
BODY,CHANGE SWITCH
3772105101
€ 10.50
46
3771201000
ref: 46
GASKET,GEAR SHIFT SWITCH (NAS)
3771201000
€ 2.00
47
0211203047
ref: 47
SCREW
0211203047
€ 2.00
48
0832201037
ref: 48
WASHER
0832201037
€ 2.00
49
3771105101
ref: 49
CONTACT,GEAR SHIFT SWITCH
3771105101
€ 4.00
50
0212206127
ref: 50
SCREW
0212206127
€ 3.00
51
0211204203
ref: 51
SCREW
0211204203
€ 1.00
52
0832101043
ref: 52
WASHER,LOCK
0832101043
€ 2.00
53
0832201047
ref: 53
WASHER
0832201047
€ 2.00
