FENDER (GT185A

GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

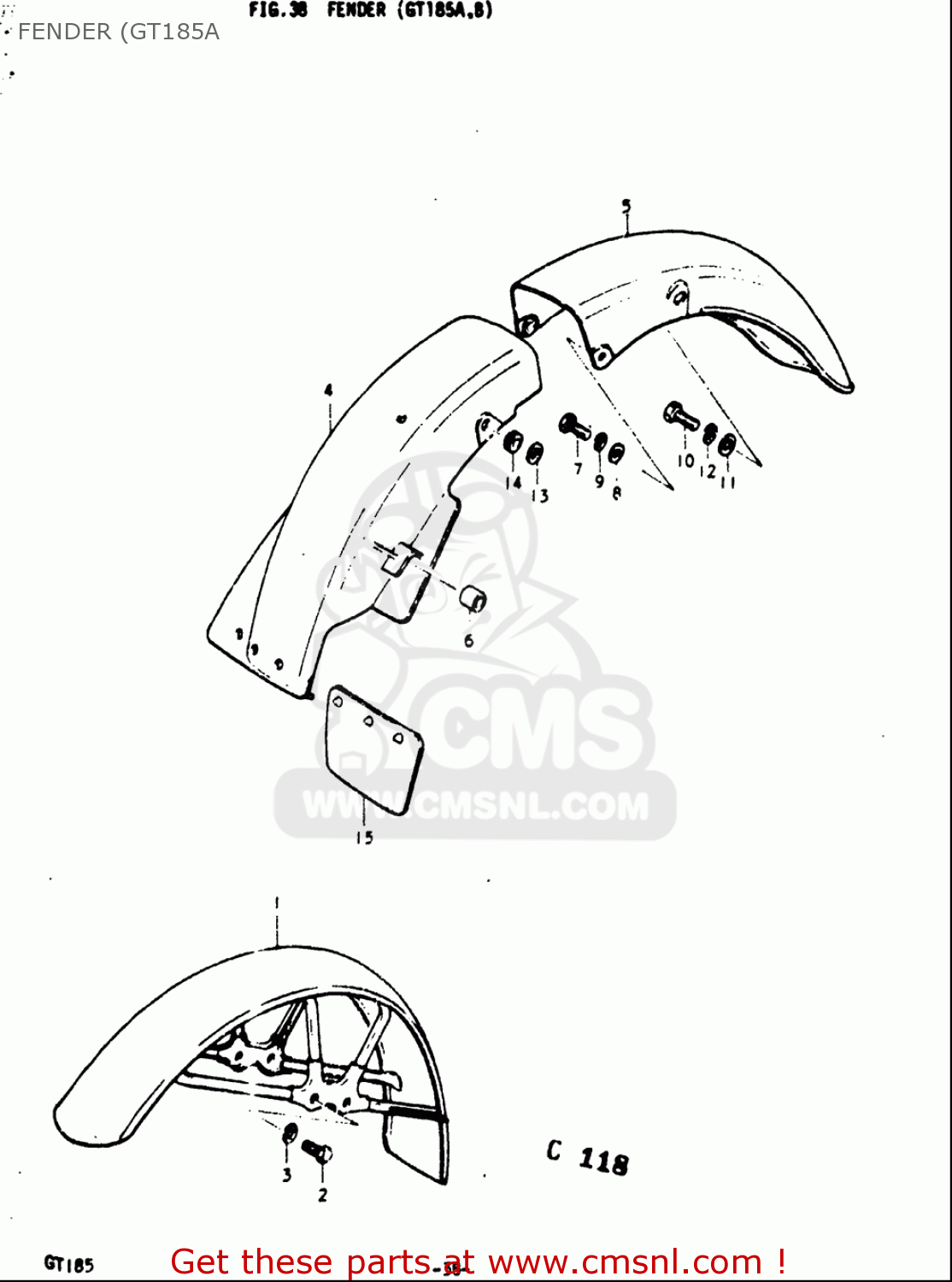

Fender (gt185a diagram GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

FENDER (GT185A GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

FENDER (GT185A GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0150008163
ref: 2

BOLT

€ 2.00

3

0832101087
ref: 3

WASHER,LOCK

€ 2.00

6

0932905003
ref: 6

CUSHION

€ 4.50

7

0150006127
ref: 7

BOLT

€ 2.00

8

0832201067
ref: 8

WASHER

€ 2.00

9

0832101067
ref: 9

WASHER,LOCK

€ 2.50

10

0150008207
ref: 10

BOLT

€ 3.00

11

0832201087
ref: 11

WASHER

€ 2.00

12

0832101087
ref: 12

WASHER,LOCK

€ 2.00

13

0916006084
ref: 13

WASHER(6.5X18X1.6)

€ 2.00

14

0932006504
ref: 14

CUSHION

€ 4.00
