FRONT WHEEL (GT185K)

GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

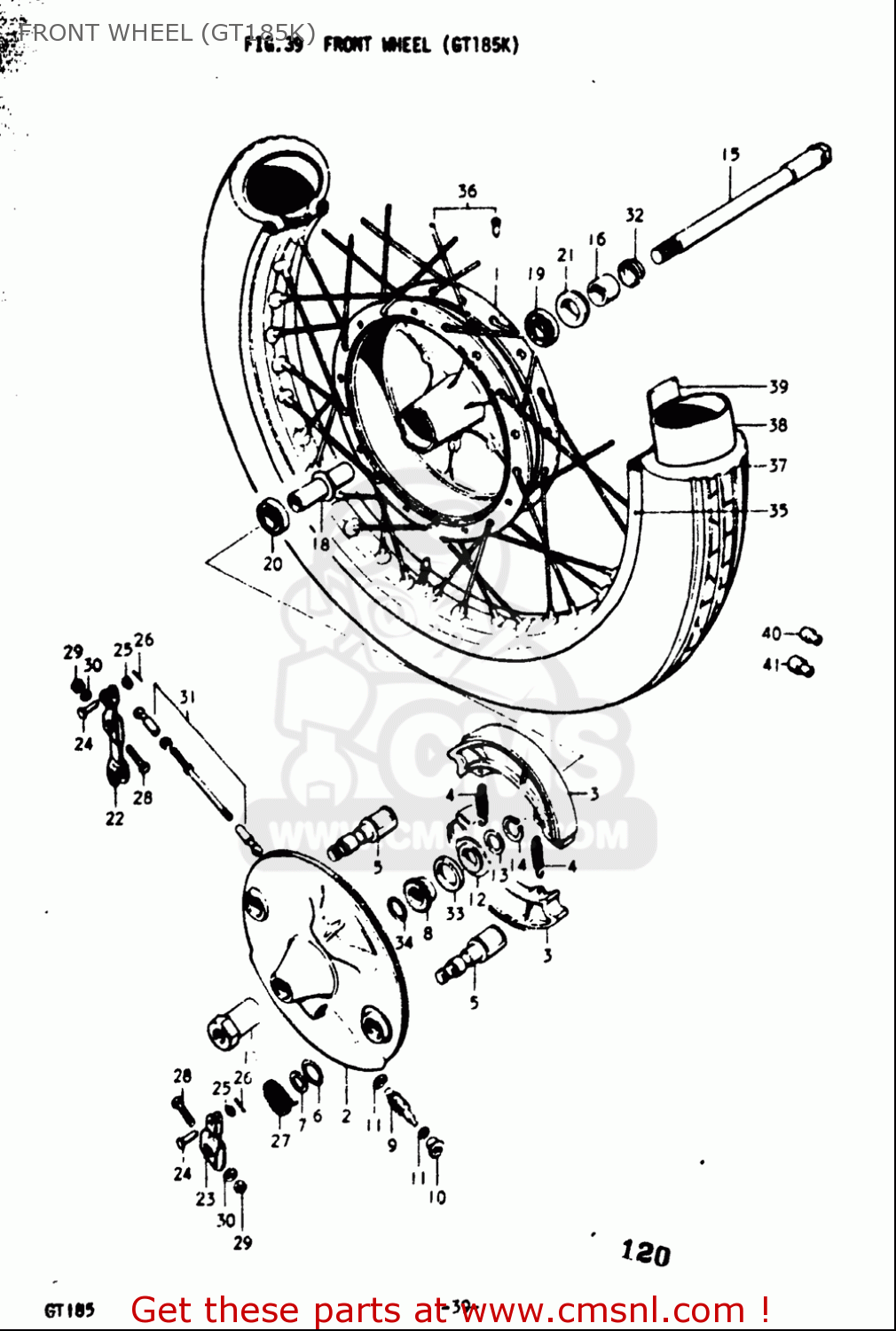

Front wheel (gt185k) diagram GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

FRONT WHEEL (GT185K) GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
FRONT WHEEL (GT185K) GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
FRONT WHEEL (GT185K) GT185 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
3
5441008100
ref: 3
SHOE,BRAKE
€ 17.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
5542030000
€ 3.50
5
6444038A00
ref: 5
CAM,RR BRAKE
6444038A00
€ 43.00
6
0928015003
ref: 6
O RING(D:2.4,ID:14.8)
0928015003
€ 2.00
7
0916015048
ref: 7
WASHER(15.5X24X1.6)
0916015048
€ 2.50
8
5461136001
ref: 8
GEAR,SPEEDOMETER
5461136001
€ 26.50
9
5462111000
ref: 9
PINION,SPEEDOMETER
5462111000
€ 11.50
10
5463249200
ref: 10
BUSHING,SPEEDOMETER PINION
5463249200
€ 6.50
11
0916005001A05
ref: 11
WASHER(5.1X9X0.4)
0916005001A05
€ 2.00
12
5466011031
ref: 12
DRIVER,SPEEDOMETER GEAR
5466011031
€ 31.00
13
0916022001
ref: 13
WASHER(22.5X27X1)
0916022001
€ 2.00
14
0833131226
ref: 14
CIRCLIP
0833131226
€ 2.00
16
0918015018
ref: 16
SPACER
0918015018
€ 6.00
19
0811360020
ref: 19
BEARING
0811360020
€ 14.00
20
0814362027
ref: 20
BEARING
0814362027
€ 12.50
25
0832201067
ref: 25
WASHER
0832201067
€ 2.00
26
0411112108
ref: 26
PIN 12X10
0411112108
€ 2.00
27
0944830001
ref: 27
SPRING
0944830001
€ 16.00
28
0910006150
ref: 28
BOLT(6X31)
0910006150
€ 1.50
29
0831000067
ref: 29
NUT
0831000067
€ 2.50
30
0832201067
ref: 30
WASHER
0832201067
€ 2.00
33
0928526003
ref: 33
SEAL,OIL(26X38X4)
0928526003
€ 22.00
34
0928906001
ref: 34
SEAL,OIL(6X10X3)
0928906001
€ 4.00
35
5531105300
ref: 35
RIM,FR WHEEL 1.60X18
5531105300
€ 86.50
37
5510012B00
ref: 37
TIRE,FR(2.75-18)
€ 201.00
38
5520026F00
ref: 38
TUBE ASSY,WHEEL INNER
5520026F00
€ 24.50
39
5526111010
ref: 39
PROTECTOR,INNER TUBE
5526111010
€ 3.50
40
5541111000
ref: 40
BALANCER,WHEEL (B)
€ 4.50
41
5541211000
ref: 41
BALANCER,WHEEL (30G)
5541211000
€ 8.00
