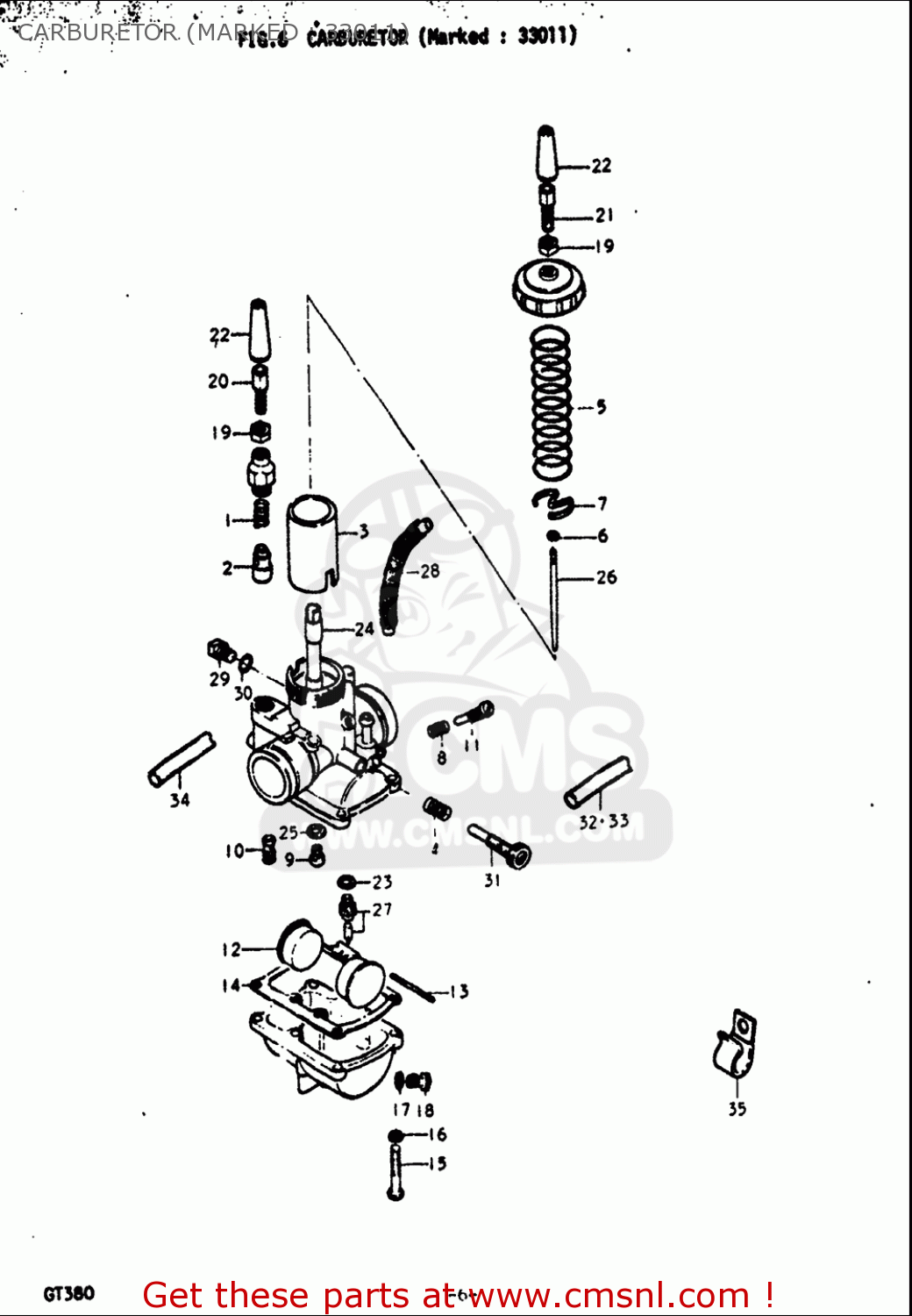

CARBURETOR (MARKED : 33011)

ref

part #

description

quantity

1

1341718630
ref: 1

SPRING

€ 6.50

2

1341101010
ref: 2

PLUNGER,STARTER

€ 15.50

4

1326801010
ref: 4

SPRING

€ 4.00

6

1339410010
ref: 6

CLIP

€ 5.00

7

1358128010
ref: 7

SEAT,THROTTLE VALVE SPRING

€ 7.50

8

1326801010
ref: 8

SPRING

€ 4.00

9-1

0949180008
ref: 9-1

JET,MAIN

€ 9.00

9-2

0949187005
ref: 9-2

JET,MAIN(87.5)

€ 7.00

9-3

0949175009
ref: 9-3

JET,MAIN(75)

€ 8.00

10

0949222006
ref: 10

JET,PILOT(22.5)

€ 8.50

11

1326915010
ref: 11

SCREW,PILOT AIR

€ 10.50

12

1325211010
ref: 12

FLOAT

€ 23.50

13

1325401010
ref: 13

PIN,FLOAT

€ 3.50

14

1325111010
ref: 14

GASKET,FLOAT CHAMBER (NAS)

€ 7.00

15

0211204163
ref: 15

SCREW 4X16

€ 1.00

16

0832101043
ref: 16

WASHER,LOCK

€ 2.50

17

1324905010
ref: 17

GASKET,DRAIN,PLUG (NAS)

€ 2.00

18

1324705010
ref: 18

PLUG

€ 6.50

19

1366116600
ref: 19

NUT

€ 5.50

20

1357748110
ref: 20

ADJUSTER,CABLE

€ 8.50

22

1368116600
ref: 22

CAP,RUBBER

€ 8.00

23

1339258600
ref: 23

GASKET,VALVE SEAT (NAS)

€ 2.00

25

1338203110
ref: 25

WASHER

€ 3.00

26

1338333010
ref: 26

NEEDLE,JET

€ 20.00

27

1337048051
ref: 27

VALVE ASSY,NEEDLE

€ 64.50

29

1366418654
ref: 29

BOLT

€ 11.50

30

1366331010
ref: 30

GASKET,THRO VALVE INSPECTION (NAS)

€ 4.00

32

0935130503600
ref: 32

HOSE(3X5X600)

€ 7.00

35

0940300069
ref: 35

CLAMP

€ 14.50

all assemblies
