HANDLE SWITCH
GT380 1972 (J) USA (E03)

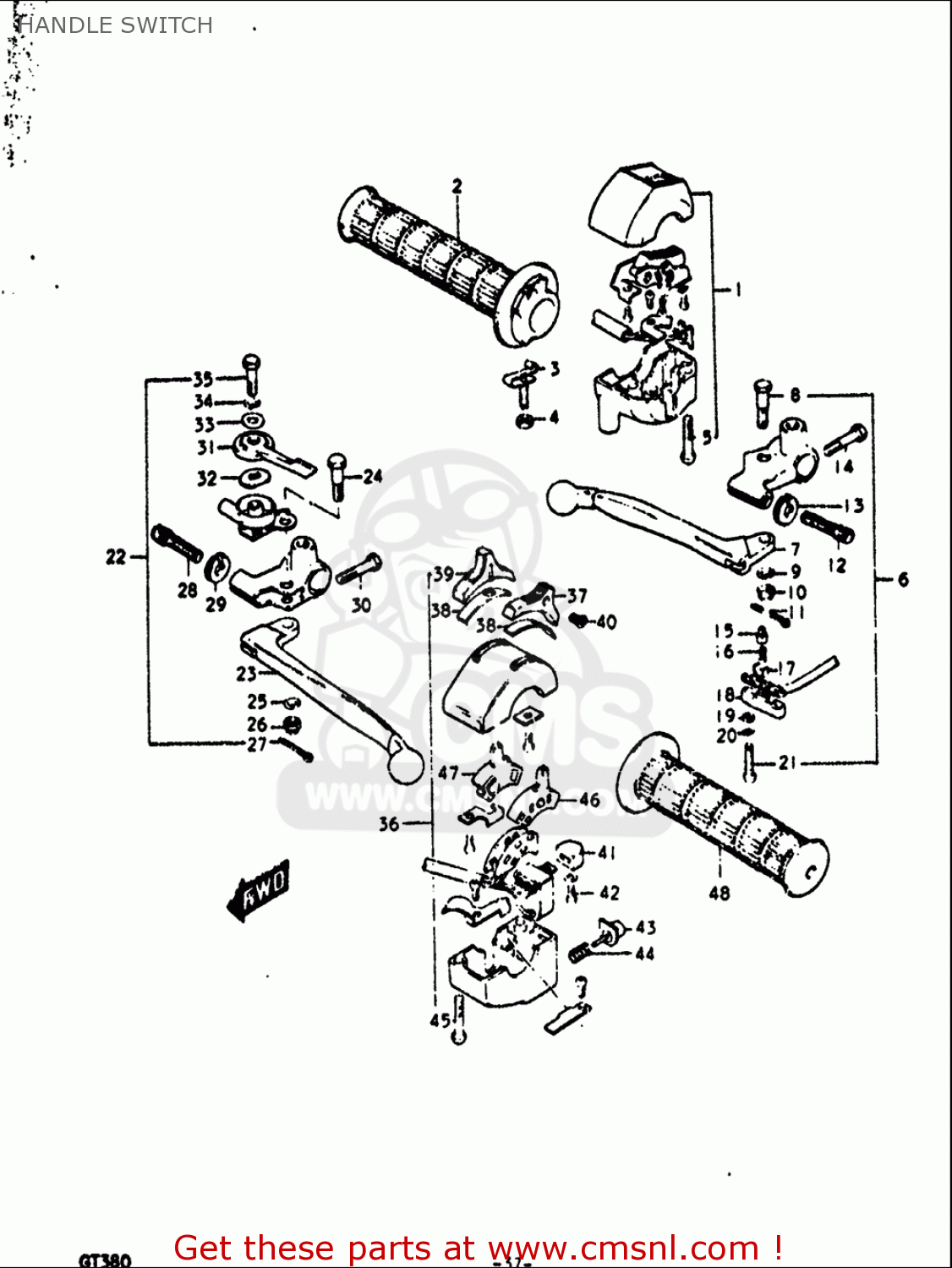

Handle switch diagram GT380 1972 (J) USA (E03)
HANDLE SWITCH GT380 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
5711033012
ref: 2
GRIP,THROTTLE
€ 29.50
3
5717011011
ref: 3
ADJUSTER, THROTTLE
€ 4.50
4
0831000057
ref: 4
NUT
€ 2.50
5
0211205257
ref: 5
SCREW
€ 2.00
6
5730030501
ref: 6
BRAKE LEVER & SWITCH ASSY
€ 59.00
7
5742018602
ref: 7
LEVER,BRAKE
€ 37.00
8
5743111013
ref: 8
BOLT,LEVER PIVOT
€ 6.00
9
0832101067
ref: 9
WASHER,LOCK
€ 2.50
10
5743311010
ref: 10
NUT,LEVER FITTNG
€ 5.50
11
0411116208
ref: 11
PIN 16X20
€ 2.00
12
5744111010
ref: 12
ADJUSTER,CABLE
€ 8.00
13
5744211010
ref: 13
NUT,CABLE ADJUSTER
€ 4.00
14
0150006207
ref: 14
BOLT
€ 2.00
15
5746518601
ref: 15
CONTACT,SWITCH
€ 4.50
16
5746518601
ref: 16
CONTACT,SWITCH
€ 4.50
17
5746518601
ref: 17
CONTACT,SWITCH
€ 4.50
18
5748133010
ref: 18
COVER,FR BK TERMINAL BASE
€ 19.50
19
0832201037
ref: 19
WASHER
€ 2.00
20
0916203001
ref: 20
WASHER,LOCK
€ 1.50
21
0912503105
ref: 21
SCREW
€ 2.50
23
5762045010
ref: 23
LEVER,CLUTCH
€ 35.00
24
5743131010
ref: 24
BOLT,LEVER PIVOT
€ 9.00
25
0832101067
ref: 25
WASHER,LOCK
€ 2.50
26
5743311010
ref: 26
NUT,LEVER FITTNG
€ 5.50
27
0411116208
ref: 27
PIN 16X20
€ 2.00
28
5744111010
ref: 28
ADJUSTER,CABLE
€ 8.00
29
5744211010
ref: 29
NUT,CABLE ADJUSTER
€ 4.00
30
0150006207
ref: 30
BOLT
€ 2.00
31
5872103010
ref: 31
LEVER
€ 26.00
32
5872203010
ref: 32
WASHER,ADJUSTER
€ 3.00
33
0916006129
ref: 33
WASHER(6.5X16X1)
€ 2.00
34
0832101067
ref: 34
WASHER,LOCK
€ 2.50
35
0150006127
ref: 35
BOLT
€ 2.00
38
5771433010
ref: 38
PLATE,SWITCH KNOB
€ 3.00
39
5771333011
ref: 39
KNOB
€ 6.00
40
0212203067
ref: 40
SCREW
€ 1.00
42
0212203067
ref: 42
SCREW
€ 1.00
43
5785031010
ref: 43
BUTTON,HORN
€ 6.50
44
5776126010
ref: 44
SPRING,BUTTON
€ 2.50
45
0211205207
ref: 45
SCREW
€ 3.00
46
5735333010
ref: 46
BLOCK, LIGHTING SWITCH
€ 19.00
48
5721133010
ref: 48
GRIP,L
€ 32.50
