CENTER STAND
GT380 1972 (J) USA (E03)

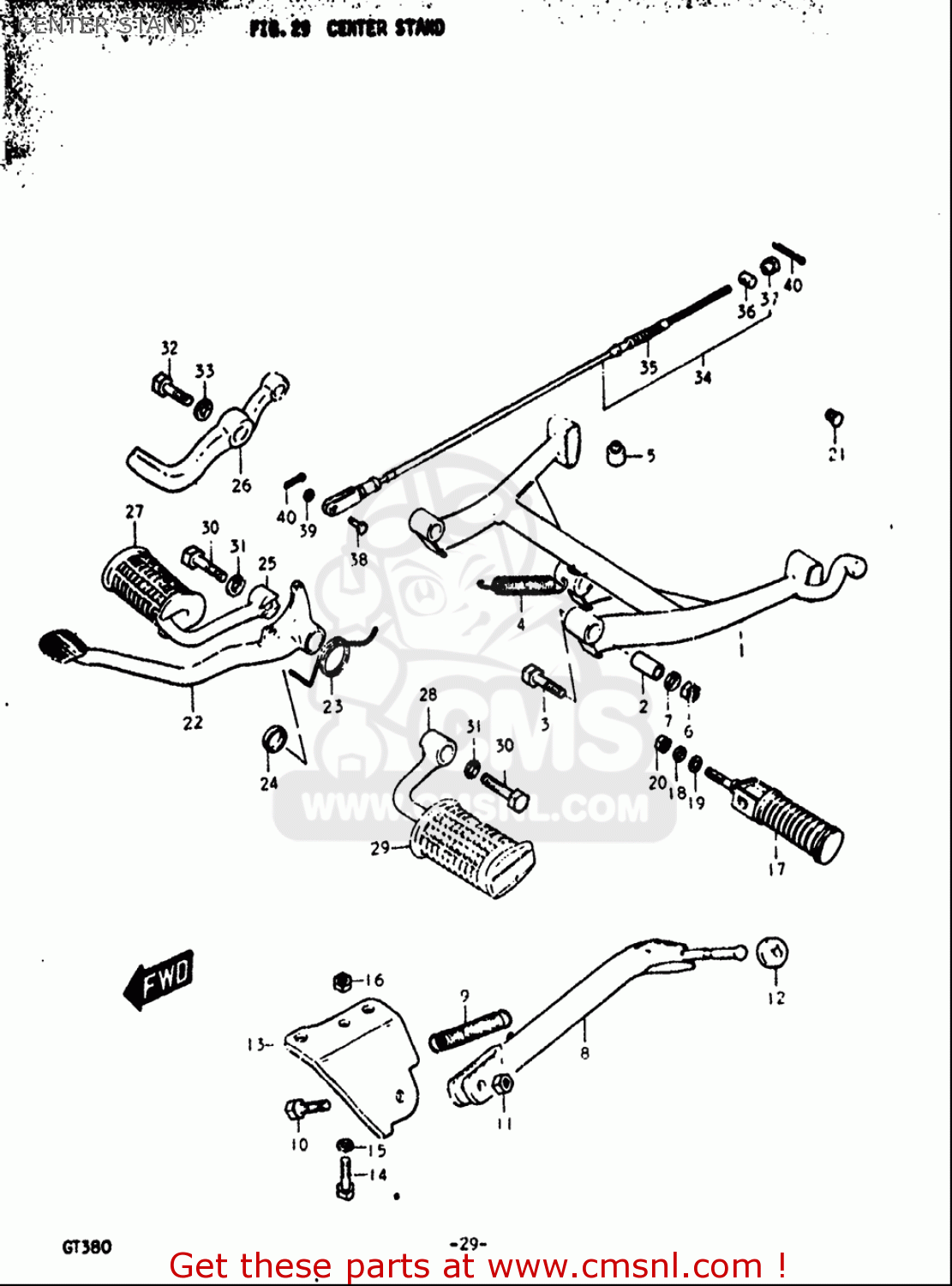

Center stand diagram GT380 1972 (J) USA (E03)
CENTER STAND GT380 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0918010001
ref: 2
SPACER(10.5X16X30)
€ 3.50
3
0910010006
ref: 3
BOLT(10X48)
€ 4.00
4
0944316005
ref: 4
SPRING
€ 12.00
5
0932110001
ref: 5
CUSHION
€ 2.50
6
0831000107
ref: 6
NUT
€ 2.50
7
083210110A
ref: 7
WASHER,LOCK
€ 3.00
9
0944314017
ref: 9
SPRING
€ 6.50
10
0910010067
ref: 10
BOLT(10X30)
€ 3.50
11
0831000107
ref: 11
NUT
€ 2.50
12
0932007001
ref: 12
CUSHION
€ 4.00
14
0910010287
ref: 14
BOLT(10X27)
€ 4.50
15
0832101107
ref: 15
WASHER,LOCK
€ 2.00
16
0831000107
ref: 16
NUT
€ 2.50
17-1
4360031000
ref: 17-1
FOOTREST ASSY,PILLION
€ 33.00
18
0832101107
ref: 18
WASHER,LOCK
€ 2.00
19
0832201107
ref: 19
WASHER
€ 2.50
20
0831000107
ref: 20
NUT
€ 2.50
21
0925009001
ref: 21
CAP(OD:14)
€ 1.00
27
4355133000
ref: 27
RUBBER,FOOTREST
€ 21.00
30
0910412101
ref: 30
BOLT
€ 3.00
31
0832101127
ref: 31
WASHER,LOCK
€ 2.50
32
0150008353
ref: 32
BOLT
€ 3.50
33
0832101087
ref: 33
WASHER,LOCK
€ 2.00
34
5850031000
ref: 34
CABLE ASSY,RR BRAKE
€ 36.50
35
0928705001
ref: 35
SEAL,DUST
€ 11.00
36
0920913018
ref: 36
PIN(13X18)
€ 3.50
37
0915006014
ref: 37
NUT
€ 3.50
38
0920005001
ref: 38
PIN(L:17.5)
€ 1.50
39
0832201067
ref: 39
WASHER
€ 2.00
40
0411120158
ref: 40
PIN
€ 1.50
