REAR SWINGING ARM
GT380 1972 (J) USA (E03)

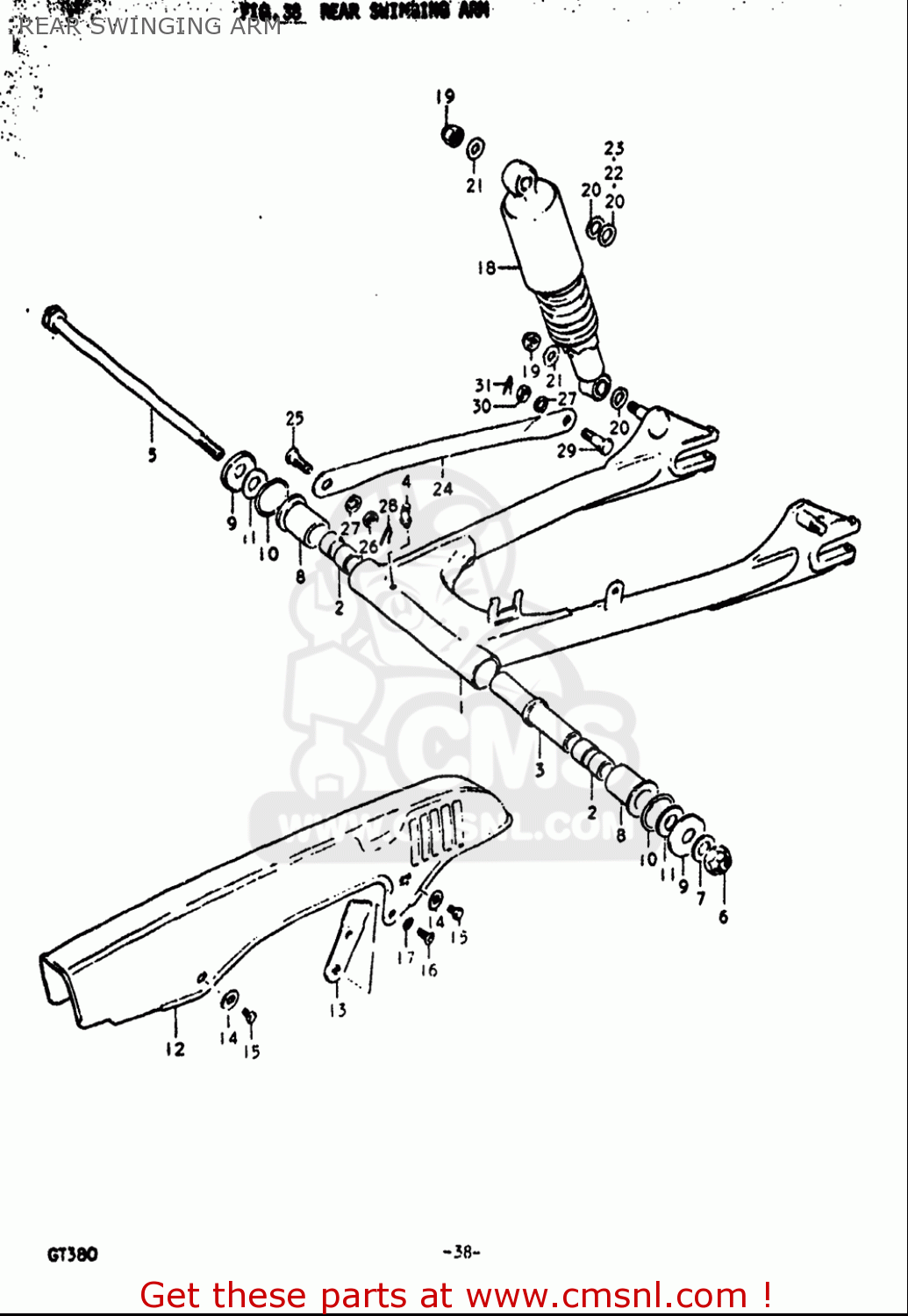

Rear swinging arm diagram GT380 1972 (J) USA (E03)
REAR SWINGING ARM GT380 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0930722003
ref: 2
BUSH
€ 18.00
4
0835131008
ref: 4
NIPPLE,GREASE
€ 10.50
5
6121133002
ref: 5
SHAFT,REAR SWING ARM
€ 84.00
7
0832201147
ref: 7
WASHER
€ 2.00
8
6125115001
ref: 8
SPACER
€ 21.00
9
6126215000
ref: 9
COVER
€ 84.00
10
0928030001
ref: 10
O RING(D:3,ID:29.5)
€ 2.00
11
0916014009
ref: 11
WASHER(14.5X29X2.3)
€ 3.50
14
0916906010
ref: 14
WASHER
€ 3.00
15
0910006011
ref: 15
BOLT(6X8)
€ 2.50
16
0212206167
ref: 16
SCREW
€ 2.00
17
0832331068
ref: 17
LOCK WASHER
€ 1.50
19
0831310107
ref: 19
NUT
€ 2.50
20
0832201127
ref: 20
WASHER
€ 2.00
21
0916019001
ref: 21
WASHER(19X32X1)
€ 3.50
22
0916012082
ref: 22
WASHER(12.5X24X3.2)
€ 2.50
23
0916012088
ref: 23
WASHER(12.5X24X1.6)
€ 2.00
26
0831000107
ref: 26
NUT
€ 2.50
27
0832101107
ref: 27
WASHER,LOCK
€ 2.00
28
0938510005
ref: 28
CLIP
€ 1.50
29
0910110003
ref: 29
BOLT(10X31)
€ 4.00
30
0831000107
ref: 30
NUT
€ 2.50
31
0938408001
ref: 31
SPRING,RETAINER
€ 3.00
