FRONT FORK
GT380 1972 (J) USA (E03)

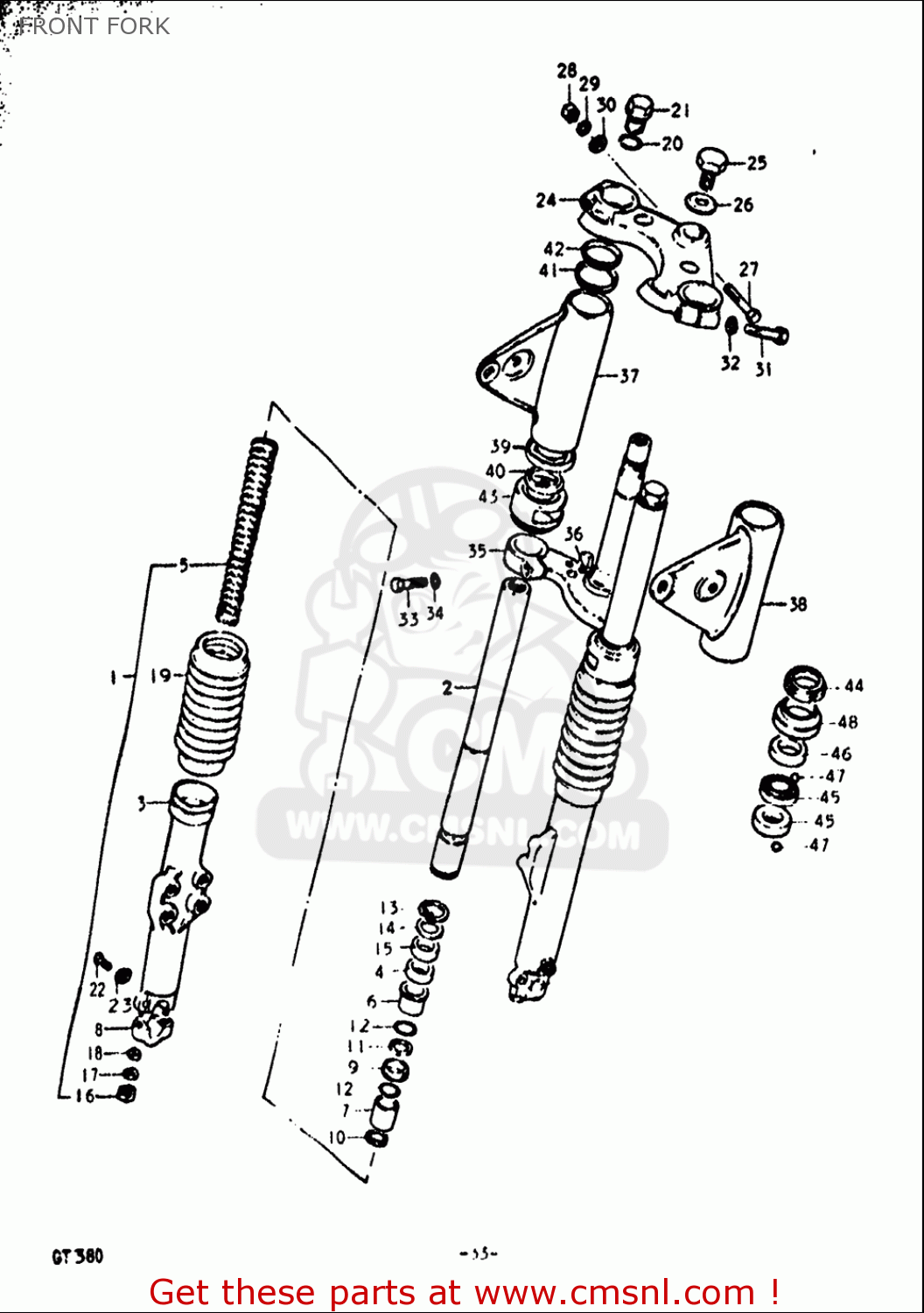

Front fork diagram GT380 1972 (J) USA (E03)
FRONT FORK GT380 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
8
5113231030
ref: 8
HOLDER,AXLE
€ 31.50
15
5115302B00
ref: 15
SEAL,OIL
€ 15.00
16
0831000087
ref: 16
NUT
€ 2.00
17
0832101087
ref: 17
WASHER,LOCK
€ 2.00
18
0832201087
ref: 18
WASHER
€ 2.00
19
5157133030
ref: 19
BOOT
€ 39.00
22
0211204063
ref: 22
SCREW 4X6
€ 2.00
23
5118333030
ref: 23
GASKET (NAS)
€ 6.50
27
0150008507
ref: 27
BOLT
€ 3.00
28
0831000087
ref: 28
NUT
€ 2.00
29
0832101087
ref: 29
WASHER,LOCK
€ 2.00
30
0832201087
ref: 30
WASHER
€ 2.00
31
0150010407
ref: 31
BOLT
€ 3.00
32
0832101107
ref: 32
WASHER,LOCK
€ 2.00
33
0150010407
ref: 33
BOLT
€ 3.00
34
0832101107
ref: 34
WASHER,LOCK
€ 2.00
36
5162133001
ref: 36
RACE,STEERING OUTER LWR
€ 10.00
39
5155131000
ref: 39
GUIDE
€ 20.00
40
5155333000
ref: 40
CUSHION,HEADLAMP BRACKET
€ 10.00
41
5155531000
ref: 41
GUIDE
€ 11.50
42
5155633000
ref: 42
CUSHION,HEADLAMP BRACKET UPR
€ 6.00
44
5163128000
ref: 44
NUT,STEERING STEM(25X44X10)
€ 12.50
45
5161133002
ref: 45
LACE,STEERING INNER LWR
€ 7.00
46
5162130001
ref: 46
LACE,STEERING OUTER UPR
€ 14.00
47
0611108003
ref: 47
BALL
€ 1.50
48
5164330000
ref: 48
DUST SEAL,STEERING UPR
€ 15.50
