CARBURETOR (GT380L

GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

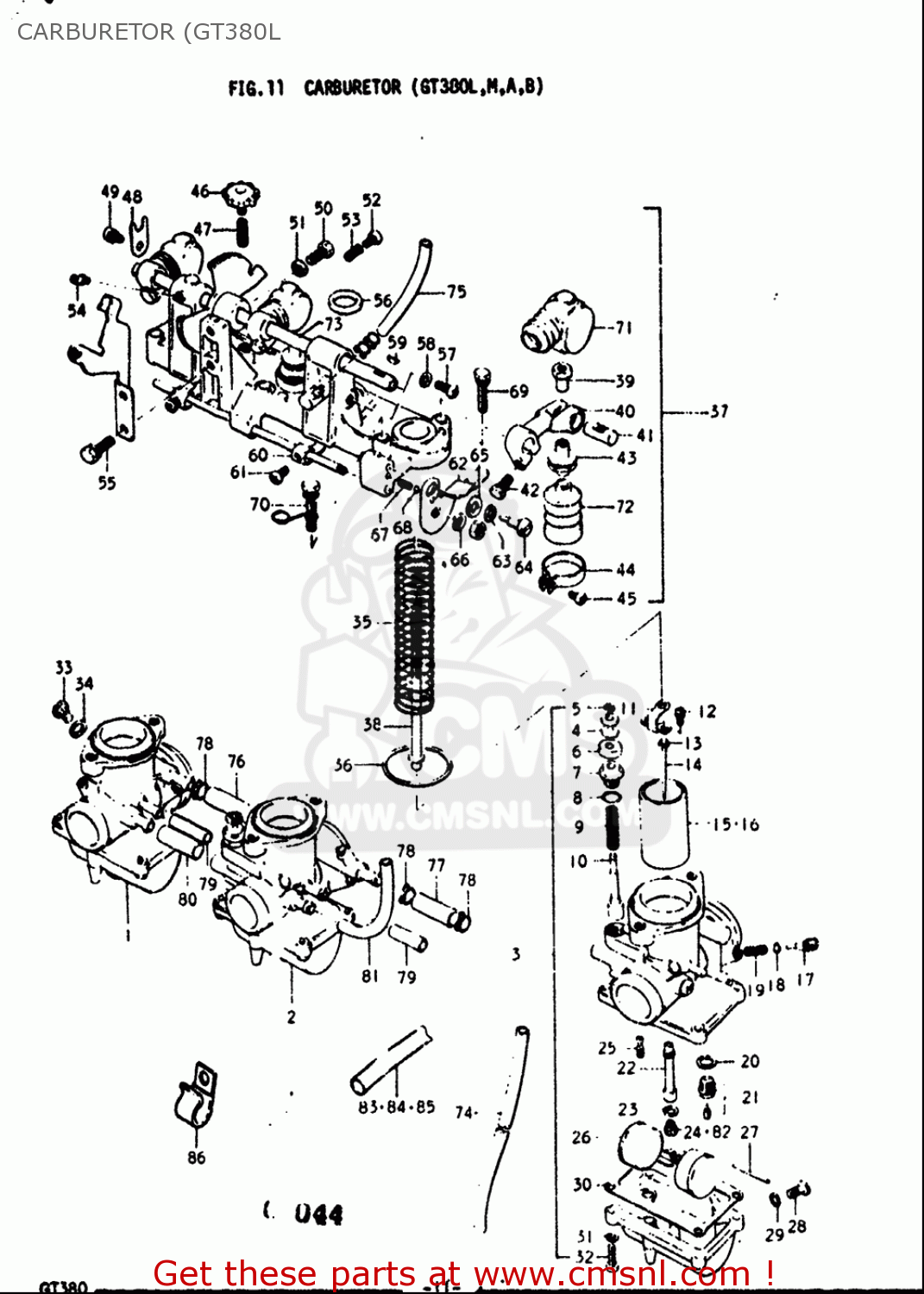

Carburetor (gt380l diagram GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

CARBURETOR (GT380L GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
CARBURETOR (GT380L GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
CARBURETOR (GT380L GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
4
1342433110
ref: 4
RING
€ 6.00
5
1361733110
ref: 5
CLIP,CARBURETOR STARTER
1361733110
€ 2.00
6
1368209210
ref: 6
CAP,PLUNGER
1368209210
€ 3.00
8
0928008014
ref: 8
O RING(D:1.5,ID:8.5)
0928008014
€ 3.00
9
1341718630
ref: 9
SPRING
1341718630
€ 6.00
12-1
0211203063
ref: 12-1
SCREW
0211203063
€ 2.00
12-2
0211203063
ref: 12-2
SCREW
0211203063
€ 2.00
13
1339410010
ref: 13
CLIP
1339410010
€ 4.50
14
1338333010
ref: 14
NEEDLE,JET
1338333010
€ 18.00
17
1326915011
ref: 17
SCREW,PILOT AIR ADJUSTING
1326915011
€ 12.50
18
1329533010
ref: 18
O RING
1329533010
€ 4.50
19
1326801010
ref: 19
SPRING
1326801010
€ 3.50
20-1
1339258600
ref: 20-1
GASKET,VALVE SEAT (NAS)
1339258600
€ 2.00
20-2
1339258600
ref: 20-2
GASKET,VALVE SEAT (NAS)
1339258600
€ 2.00
21
1337030651
ref: 21
VALVE ASSY,NEEDLE
1337030651
€ 53.50
23
1338203110
ref: 23
WASHER
1338203110
€ 2.50
24
0949180008
ref: 24
JET,MAIN
0949180008
€ 9.00
25
0949225005
ref: 25
JET,PILOT(25)
0949225005
€ 6.50
26
1325211010
ref: 26
FLOAT
1325211010
€ 20.50
27
1325401010
ref: 27
PIN,FLOAT
1325401010
€ 3.00
28
1324705010
ref: 28
PLUG
1324705010
€ 6.00
29
1324905010
ref: 29
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
30-1
1325133110
ref: 30-1
GASKET,FLOAT CAHMBER (NAS)
1325133110
€ 10.50
30-2
1325133110
ref: 30-2
GASKET,FLOAT CAHMBER (NAS)
1325133110
€ 10.50
31
0832101043
ref: 31
WASHER,LOCK
0832101043
€ 2.00
32
0211204163
ref: 32
SCREW 4X16
0211204163
€ 1.00
33
1366418654
ref: 33
BOLT
1366418654
€ 10.50
34
1366331010
ref: 34
GASKET,THRO VALVE INSPECTION (NAS)
1366331010
€ 3.50
36
1329533110
ref: 36
O RING
1329533110
€ 5.50
40
1356433110
ref: 40
ARM
1356433110
€ 45.50
45-2
0211203087
ref: 45-2
SCREW
€ 1.50
49-2
0211204123
ref: 49-2
SCREW
0211204123
€ 1.50
50
0912806011
ref: 50
SCREW(6X12)
0912806011
€ 3.00
53
1326831210
ref: 53
SPRING,THROTTLE SCREW
1326831210
€ 4.00
54
083512100A
ref: 54
NIPPLE
083512100A
€ 13.50
57-2
0211205087
ref: 57-2
SCREW
0211205087
€ 2.00
61
1360531210
ref: 61
SCREW
1360531210
€ 3.00
68
1343533110
ref: 68
BALL,STARTER SHAFT
1343533110
€ 2.50
71
1358333110
ref: 71
CAP,RUBBER
1358333110
€ 41.50
72
1358433110
ref: 72
BOOT, THROTTLE VALVE
1358433110
€ 45.50
75
0935545855600
ref: 75
HOSE(4.5X8.5X600)
0935545855600
€ 14.00
76
0935260103600
ref: 76
HOSE(6X10X600)
0935260103600
€ 18.00
78
0940111403
ref: 78
CLIP
0940111403
€ 3.00
79
1368433111
ref: 79
HOSE,AIR BENT
1368433111
€ 10.50
81
0935545855600
ref: 81
HOSE(4.5X8.5X600)
0935545855600
€ 14.00
82-1
0949177005
ref: 82-1
JET,MAIN(77.5)
0949177005
€ 16.50
82-2
0949182003
ref: 82-2
JET,MAIN
0949182003
€ 8.50
83-2
0935130503600
ref: 83-2
HOSE(3X5X600)
0935130503600
€ 6.50
84
0935130503600
ref: 84
HOSE(3X5X600)
0935130503600
€ 6.50
85-2
0935130503600
ref: 85-2
HOSE(3X5X600)
0935130503600
€ 6.50
86
0940300069
ref: 86
CLAMP
0940300069
€ 8.50
