CARBURETOR (MARKED : 33014)

GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

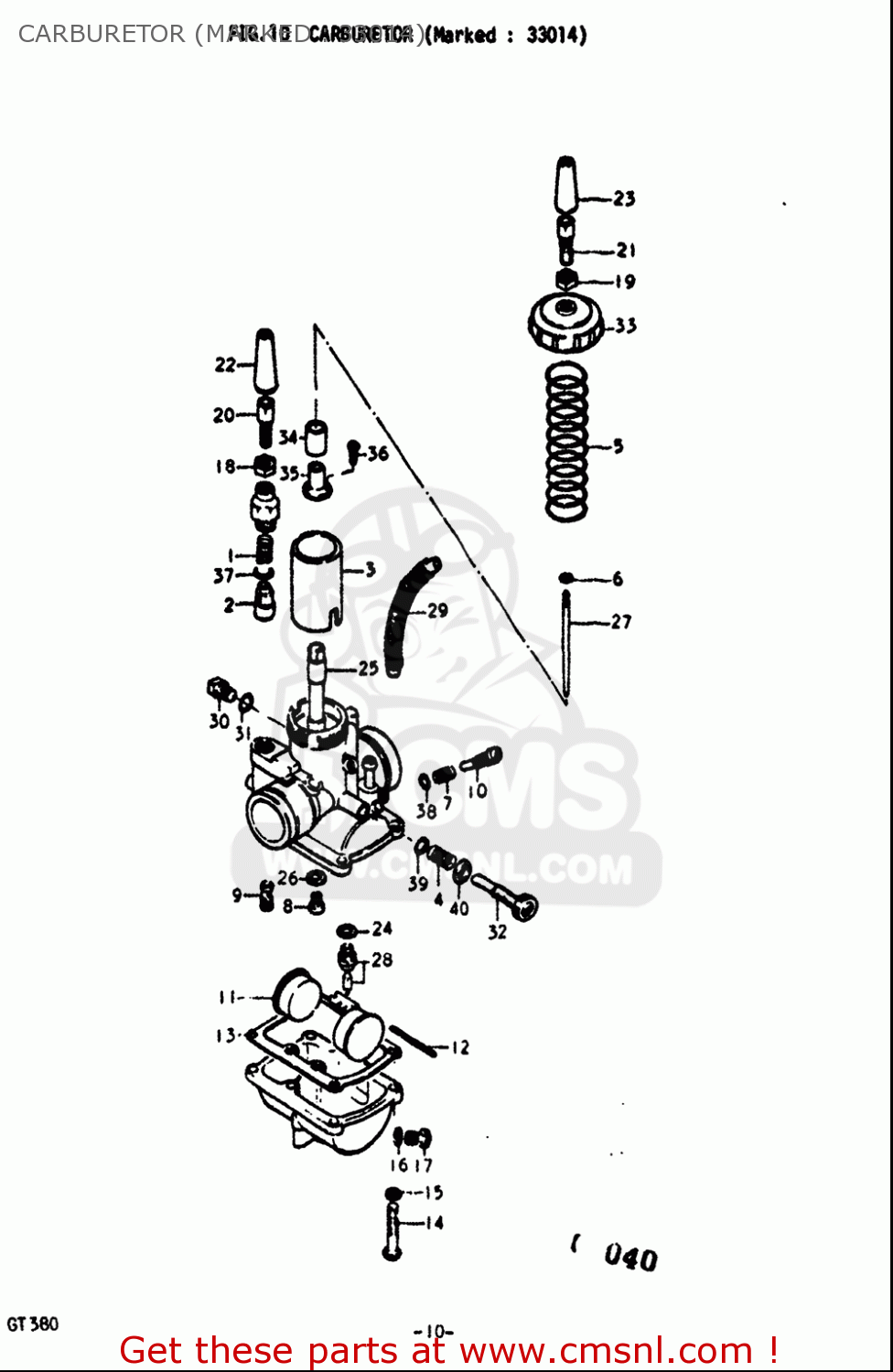

Carburetor (marked : 33014) diagram GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

CARBURETOR (MARKED : 33014) GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
CARBURETOR (MARKED : 33014) GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
CARBURETOR (MARKED : 33014) GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1341718630
ref: 1
SPRING
1341718630
€ 6.00
2
1341101010
ref: 2
PLUNGER,STARTER
1341101010
€ 14.00
4
1326801010
ref: 4
SPRING
1326801010
€ 3.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1326801010
ref: 7
SPRING
1326801010
€ 3.50
8-1
0949180008
ref: 8-1
JET,MAIN
0949180008
€ 9.00
8-2
0949187005
ref: 8-2
JET,MAIN(87.5)
0949187005
€ 6.50
8-3
0949175009
ref: 8-3
JET,MAIN(75)
0949175009
€ 7.00
9
0949222006
ref: 9
JET,PILOT(22.5)
0949222006
€ 7.50
12
1325401010
ref: 12
PIN,FLOAT
1325401010
€ 3.00
13
1325133110
ref: 13
GASKET,FLOAT CAHMBER (NAS)
1325133110
€ 10.50
14
0211204163
ref: 14
SCREW 4X16
0211204163
€ 1.00
15
0832101043
ref: 15
WASHER,LOCK
0832101043
€ 2.00
16
1324905010
ref: 16
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
18
1366116600
ref: 18
NUT
1366116600
€ 5.00
20
1357748110
ref: 20
ADJUSTER,CABLE
1357748110
€ 8.00
21
1357722600
ref: 21
ADJUSTER,CABLE
1357722600
€ 6.00
22
1368116601
ref: 22
CAP
1368116601
€ 7.00
24
1339258600
ref: 24
GASKET,VALVE SEAT (NAS)
1339258600
€ 2.00
26
1338203110
ref: 26
WASHER
1338203110
€ 2.50
27
1338333010
ref: 27
NEEDLE,JET
1338333010
€ 18.00
28
1337030651
ref: 28
VALVE ASSY,NEEDLE
1337030651
€ 53.50
30
1366418654
ref: 30
BOLT
1366418654
€ 10.50
31
1366331010
ref: 31
GASKET,THRO VALVE INSPECTION (NAS)
1366331010
€ 3.50
35
1358140200
ref: 35
CONNECTOR
1358140200
€ 7.00
36
0211233083
ref: 36
SCREW
€ 2.00
38
1329533010
ref: 38
O RING
1329533010
€ 4.50
39
1327802340
ref: 39
O RING
1327802340
€ 1.50
40
1329134010
ref: 40
COVER
1329134010
€ 5.50
