CARBURETOR (MARKED : 33012)

GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

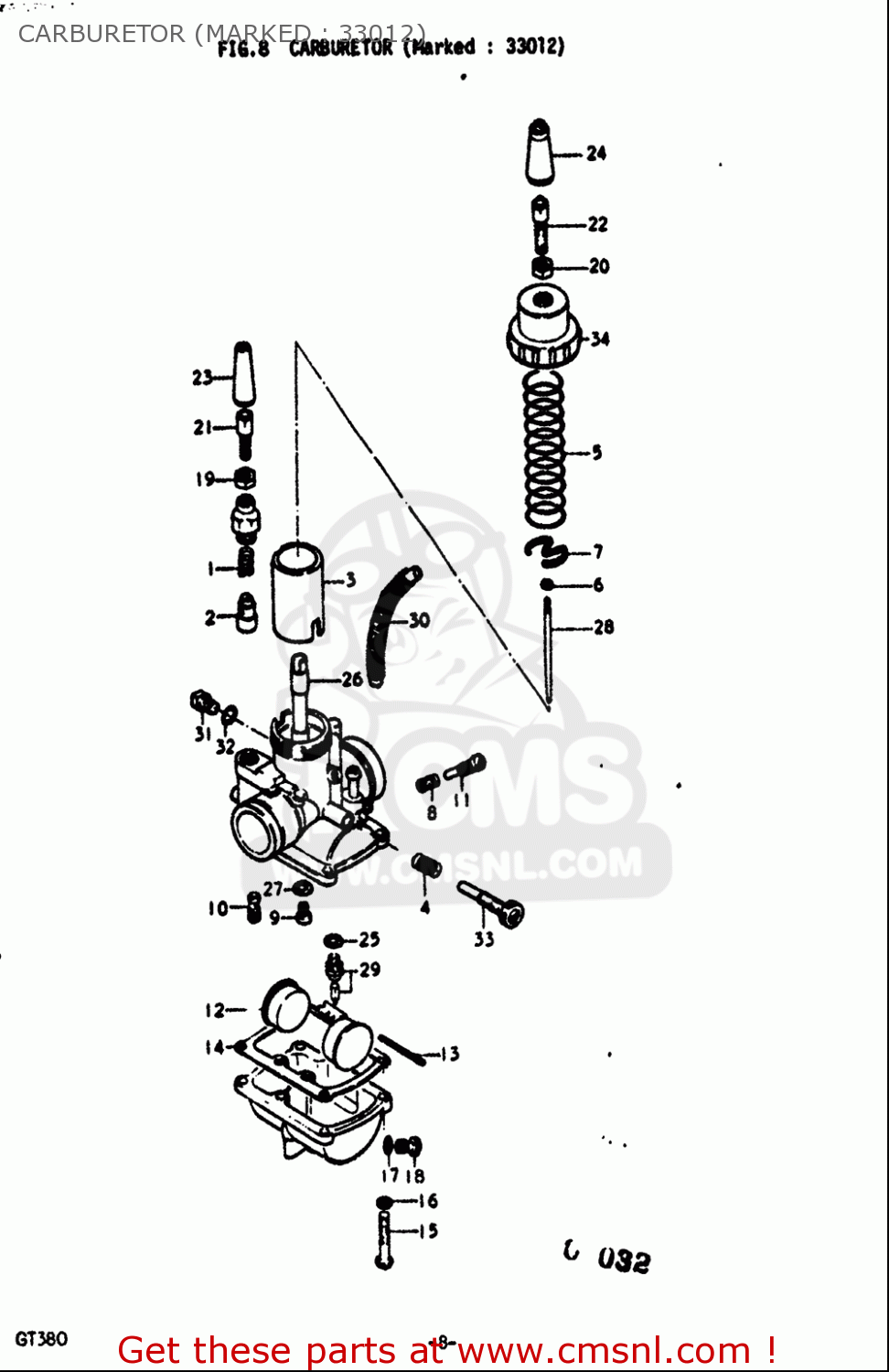

Carburetor (marked : 33012) diagram GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

CARBURETOR (MARKED : 33012) GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
CARBURETOR (MARKED : 33012) GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
CARBURETOR (MARKED : 33012) GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1341718630
ref: 1
SPRING
1341718630
€ 6.00
2
1341101010
ref: 2
PLUNGER,STARTER
1341101010
€ 14.00
4
1326801010
ref: 4
SPRING
1326801010
€ 3.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1358128010
ref: 7
SEAT,THROTTLE VALVE SPRING
1358128010
€ 6.50
8
1326801010
ref: 8
SPRING
1326801010
€ 3.50
9-1
0949180008
ref: 9-1
JET,MAIN
0949180008
€ 9.00
9-2
0949187005
ref: 9-2
JET,MAIN(87.5)
0949187005
€ 6.50
9-3
0949175009
ref: 9-3
JET,MAIN(75)
0949175009
€ 7.00
10
0949222006
ref: 10
JET,PILOT(22.5)
0949222006
€ 7.50
11
1326915011
ref: 11
SCREW,PILOT AIR ADJUSTING
1326915011
€ 12.50
12
1325211010
ref: 12
FLOAT
1325211010
€ 20.50
13
1325401010
ref: 13
PIN,FLOAT
1325401010
€ 3.00
14
1325111010
ref: 14
GASKET,FLOAT CHAMBER (NAS)
1325111010
€ 6.50
15
0211204163
ref: 15
SCREW 4X16
0211204163
€ 1.00
16
0832101043
ref: 16
WASHER,LOCK
0832101043
€ 2.00
17
1324905010
ref: 17
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
18
1324705010
ref: 18
PLUG
1324705010
€ 6.00
19
1366116600
ref: 19
NUT
1366116600
€ 5.00
21
1357748110
ref: 21
ADJUSTER,CABLE
1357748110
€ 8.00
23
1368116601
ref: 23
CAP
1368116601
€ 7.00
25
1339258600
ref: 25
GASKET,VALVE SEAT (NAS)
1339258600
€ 2.00
27
1338203110
ref: 27
WASHER
1338203110
€ 2.50
28
1338333010
ref: 28
NEEDLE,JET
1338333010
€ 18.00
29
1337048051
ref: 29
VALVE ASSY,NEEDLE
1337048051
€ 59.50
31
1366418654
ref: 31
BOLT
1366418654
€ 10.50
32
1366331010
ref: 32
GASKET,THRO VALVE INSPECTION (NAS)
1366331010
€ 3.50
