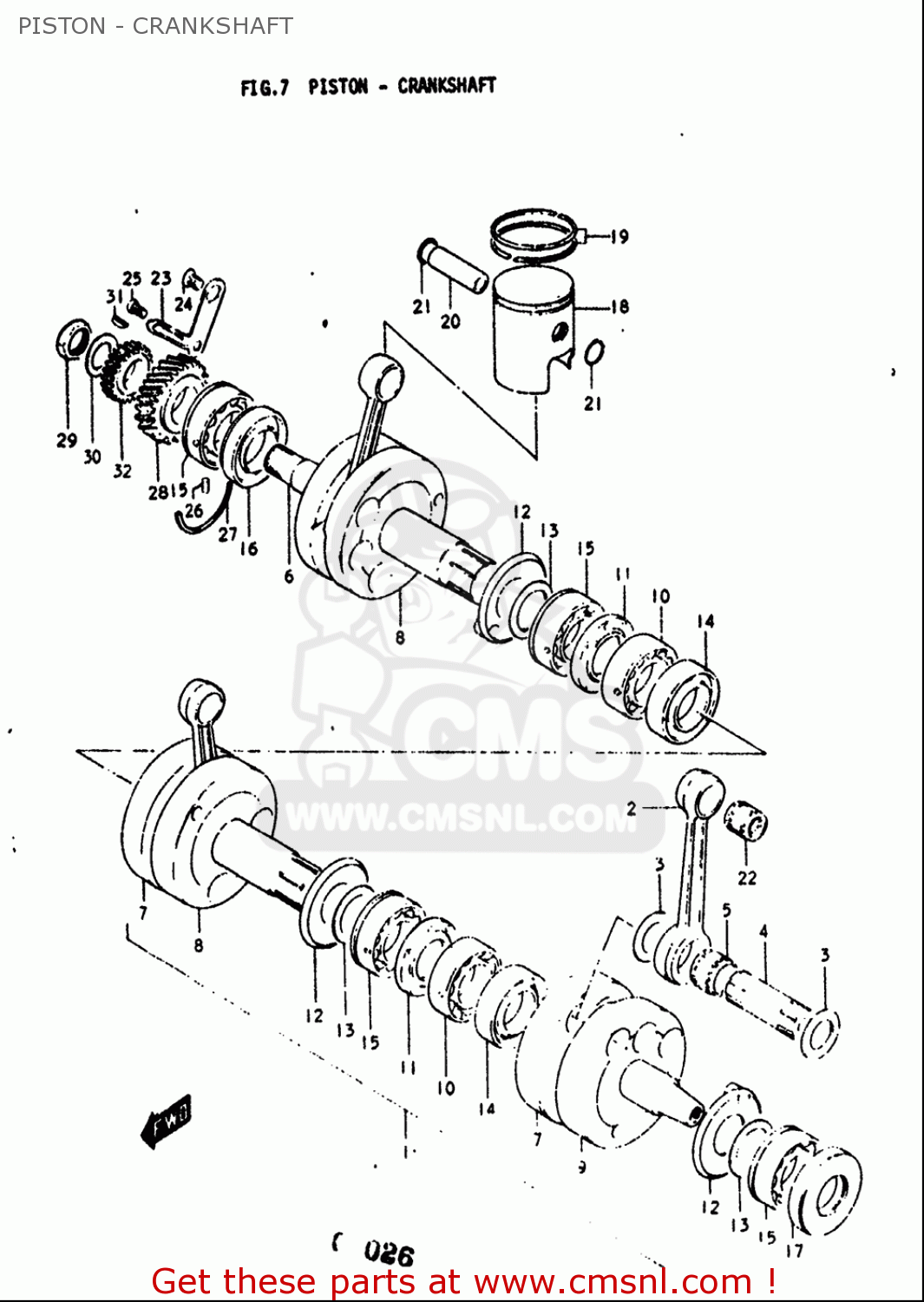

PISTON - CRANKSHAFT - GT380 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

ref

part #

description

quantity

2

1216111001
ref: 2

CONNECTING ROD

€ 83.50

3-1

0916020010
ref: 3-1

WASHER (20X34X1)

€ 4.50

3-2

0821120341
ref: 3-2

WASHER

€ 2.00

5-1

0926320020
ref: 5-1

BEARING(20X26X16.7)

€ 18.00

5-2

0926320020
ref: 5-2

BEARING(20X26X16.7)

€ 18.00

10

0926225077
ref: 10

BEARING(25X52X15)

€ 35.00

12

1251133000
ref: 12

PLATE,CSHAFT OIL GUIDE

€ 20.00

13-1

0918125186
ref: 13-1

SHIM(25X36X0.5)

€ 4.50

14

0928925005
ref: 14

SEAL,OIL(25X52X11)

€ 10.50

15-2

0926225030
ref: 15-2

BEARING 25X52X15

€ 40.00

16-2

0928932002
ref: 16-2

SEAL,OIL(32X52X8.4)

€ 27.00

17

0928325047
ref: 17

SEAL,OIL(25X52X8.5)

€ 9.00

18-1

1211033004
ref: 18-1

PISTON (54MM) (PISTON PIN HOLE 14MM)

€ 67.50

18-2

1211033004
ref: 18-2

PISTON (54MM) (PISTON PIN HOLE 14MM)

€ 67.50

18-3

1210333810050
ref: 18-3

PISTON SET(OS:0.5)

€ 125.00

18-4

1210333810050
ref: 18-4

PISTON SET(OS:0.5)

€ 125.00

18-5

1210333810100
ref: 18-5

PISTON SET(OS:1.0)

€ 402.50

18-6

1210333810100
ref: 18-6

PISTON SET(OS:1.0)

€ 402.50

19-1

1214033012
ref: 19-1

RING SET,PISTON

€ 49.00

19-2

1214033012050
ref: 19-2

RING SET,PISTON(OS:0.50)

€ 38.50

19-3

1214033012100
ref: 19-3

RING SET,PISTON(OS:1.0)

€ 45.00

20

1215123400
ref: 20

PIN,PISTON 14MM

€ 10.00

21

0938114001
ref: 21

RING,SNAP 14MM

€ 1.50

22-1

0926314022
ref: 22-1

BEARING(14X18X19.8)

€ 10.00

22-2

0926314022
ref: 22-2

BEARING(14X18X19.8)

€ 10.00

24

0212206127
ref: 24

SCREW

€ 3.00

25

0211206107
ref: 25

SCREW

€ 1.50

26

0422104069
ref: 26

PIN

€ 2.00

27

0939052002
ref: 27

C RING

€ 3.00

29

0914018002
ref: 29

NUT

€ 3.50

30

0916618001
ref: 30

WASHER

€ 3.00

31

0834131059
ref: 31

KEY

€ 3.00

PISTON - CRANKSHAFT

all assemblies
